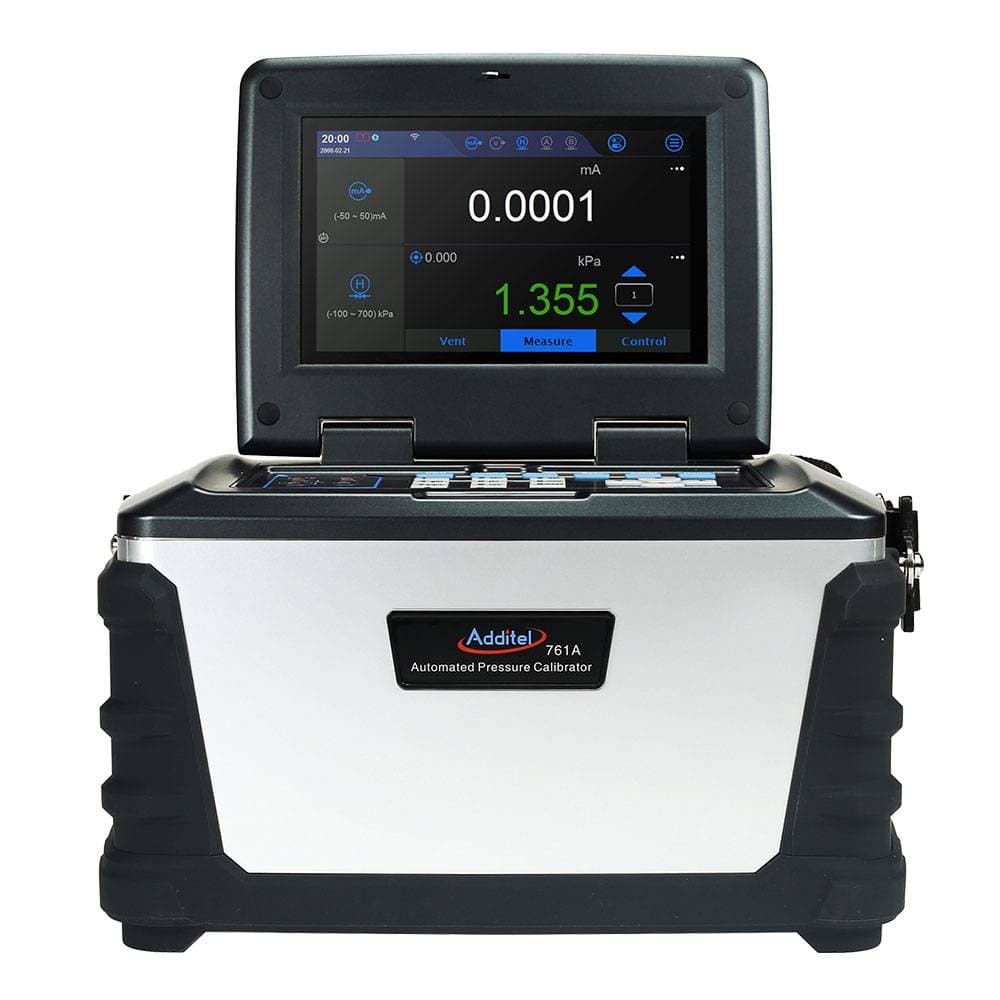

Additel 761 Automated Pressure Calibrator
Model ADT761
Portable automated pressure calibrator with a built-in pump, dual modules, HART, and 24 V loop. Current family is ADT761A (LLP / D / 500 / 1K / 1.5K / BP) — generation to 1,500 psi, removable modules, 7 in touchscreen, Wi-Fi / Bluetooth / Ethernet, longer battery. ISO 17025 cert included. From $21,362.
From $21,362.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Additel 761 is a portable automated pressure calibrator: a built-in electric pump and precision controller generate and hold a setpoint so you can calibrate gauges, transmitters, and switches in the field or the lab without a separate hand pump. Dual pressure modules, HART communication, and 24 V loop power are built in.
Additel has discontinued the original ADT761 in favor of the 761A series. This page is the priced 761A family (356 configurations). The original 761 generated to 600 psi (40 bar) at 0.02% FS with fixed dual modules. ADT761A upgrades that platform to 1,500 psi (100 bar), removable internal modules (accuracy as low as 0.01% FS), a 7 in color touchscreen, two external module channels, Wi-Fi / Bluetooth / USB / Ethernet, HART and PROFIBUS, and roughly double the original battery life.
Six base models cover the range: ADT761A-LLP for low pressure to ±30 inH2O (±75 mbar) at 0.05% FS; ADT761A-D for differential and gauge from −13.5 to 35 psi at 0.02% FS; ADT761A-500 / 1K / 1.5K from vacuum to 500, 1,000, or 1,500 psig with a built-in barometer so you can switch gauge and absolute; and ADT761A-BP for barometric sensors from 100 to 1,200 hPa at 0.01% FS. Each unit ships with a high-range module and a selectable low-range ADT155 module. Optional ADT161 external modules extend measurement to 60,000 psi.
Control stability is 0.003% FS (0.02 hPa on BP). Four channels: one electrical, the selected internal module, and two external pressure modules. Electrical includes mA / V measure and source plus 24 V loop. Documenting covers a full HART field communicator, up to 1,000 tasks, and 1,000,000 logged readings. Every unit includes an ISO 17025 accredited calibration certificate with data. From $21,362.
Specifications
| Pressure | |
| Generation / control (1.5K) | Vacuum to 1,500 psig (100 bar.g) on ADT761A-1.5K; original 761 was 600 psi |
| Generation / control (1K) | Vacuum to 1,000 psig (70 bar.g) on ADT761A-1K |
| Generation / control (500) | Vacuum to 500 psig (35 bar.g) on ADT761A-500 |
| Generation / control (D) | −13.5 to 35 psi (−0.95 to 2.5 bar), differential and gauge |
| Generation / control (LLP) | ±30 inH2O (±75 mbar) max; modules down to ±0.25 inH2O |
| Barometric (BP) | 100 to 1,200 hPa at 0.01% FS |
| Accuracy | As low as 0.01% FS (500 / 1K / 1.5K / BP); 0.02% FS (D); 0.05% FS (LLP). FS is the module span |
| Control stability | 0.003% FS (0.02 hPa on ADT761A-BP); original 761 was 0.005% FS |
| Internal modules | Two removable ADT155 modules for multi-range selection (original 761 modules were fixed) |
| External modules | Two external channels; optional ADT161 modules to 60,000 psi (4,200 bar) |
| Barometer (500 / 1K / 1.5K) | 55 Pa; switch gauge / absolute |
| Channels | |
| ADT761A | 4 — electrical, selected internal module, 2 external pressure |
| Electrical | |
| mA / V measure | ±25 / ±50 mA and auto-ranging V to ±30 V, 0.008% RD + offset |
| Source / loop | mA source to 25 mA, V source to 16 V, 24 V loop power (50 mA max) |
| Documenting | |
| HART / PROFIBUS / tasks / logging | Full HART field communicator, PROFIBUS PA, up to 1,000 tasks, 1,000,000 readings |
| General | |
| Pump | Built-in patented electric pump and controller; >1,000,000 cycle life |
| Weight / size | Less than 17.52 lb (7.95 kg); 11.77 × 7.60 × 7.56 in (299 × 193 × 192 mm) |
| Display | 7 in color TFT touchscreen, 800 × 480 (plus keypad) |
| Battery | Rechargeable Li-ion; typically 8 hours, recharge < 4 hours (about 2× original 761) |
| Communications | Wi-Fi, Bluetooth, USB, LAN, and Ethernet |
| Ingress | IP31 |
| Calibration | ISO 17025 accredited calibration with data included |
| Warranty | 18 months |
| Starting price | From $21,362 |
Videos
Additel 761A — Overview and Features
Additel 761 DP Transmitter Calibration
Additel 761 Video Demo
Documents
Build your part number
Configure your ADT761
Pick your options and we'll build the exact part number - 356 configurations match so far.
Select 4 more options to get your part number and price.
Ordering information
356 ordering models available - showing 100, use the filter to narrow down.
| Model | Description | List Price | |
|---|---|---|---|
| ADT761A-1.5K-01-CP100-B | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/4BSP F, CP1.5K and CP100 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP100-B2 | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/2BSP F, CP1.5K and CP100 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP100-M | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, M20x1.5 F, CP1.5K and CP100 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP100-N | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/4NPT F, CP1.5K and CP100 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP100-N2 | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/2NPT F, CP1.5K and CP100 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP150-B | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/4BSP F, CP1.5K and CP150 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP150-B2 | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/2BSP F, CP1.5K and CP150 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP150-M | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, M20x1.5 F, CP1.5K and CP150 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP150-N | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/4NPT F, CP1.5K and CP150 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP150-N2 | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/2NPT F, CP1.5K and CP150 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP1K-B | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/4BSP F, CP1.5K and CP1K sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP1K-B2 | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/2BSP F, CP1.5K and CP1K sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP1K-M | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, M20x1.5 F, CP1.5K and CP1K sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP1K-N | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/4NPT F, CP1.5K and CP1K sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP1K-N2 | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/2NPT F, CP1.5K and CP1K sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP200-B | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/4BSP F, CP1.5K and CP200 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP200-B2 | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/2BSP F, CP1.5K and CP200 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP200-M | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, M20x1.5 F, CP1.5K and CP200 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP200-N | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/4NPT F, CP1.5K and CP200 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP200-N2 | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/2NPT F, CP1.5K and CP200 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP300-B | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/4BSP F, CP1.5K and CP300 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP300-B2 | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/2BSP F, CP1.5K and CP300 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP300-M | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, M20x1.5 F, CP1.5K and CP300 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP300-N | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/4NPT F, CP1.5K and CP300 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP300-N2 | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/2NPT F, CP1.5K and CP300 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP30-B | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/4BSP F, CP1.5K and CP30 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP30-B2 | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/2BSP F, CP1.5K and CP30 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP30-M | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, M20x1.5 F, CP1.5K and CP30 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP30-N | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/4NPT F, CP1.5K and CP30 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP30-N2 | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/2NPT F, CP1.5K and CP30 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP35-B | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/4BSP F, CP1.5K and CP35 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP35-B2 | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/2BSP F, CP1.5K and CP35 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP35-M | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, M20x1.5 F, CP1.5K and CP35 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP35-N | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/4NPT F, CP1.5K and CP35 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP35-N2 | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/2NPT F, CP1.5K and CP35 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP500-B | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/4BSP F, CP1.5K and CP500 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP500-B2 | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/2BSP F, CP1.5K and CP500 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP500-M | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, M20x1.5 F, CP1.5K and CP500 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP500-N | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/4NPT F, CP1.5K and CP500 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP500-N2 | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/2NPT F, CP1.5K and CP500 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP50-B | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/4BSP F, CP1.5K and CP50 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP50-B2 | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/2BSP F, CP1.5K and CP50 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP50-M | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, M20x1.5 F, CP1.5K and CP50 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP50-N | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/4NPT F, CP1.5K and CP50 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP50-N2 | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/2NPT F, CP1.5K and CP50 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP600-B | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/4BSP F, CP1.5K and CP600 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP600-B2 | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/2BSP F, CP1.5K and CP600 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP600-M | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, M20x1.5 F, CP1.5K and CP600 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP600-N | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/4NPT F, CP1.5K and CP600 sensors included | $36,542.00 | |
| ADT761A-1.5K-01-CP600-N2 | Automated Pressure Calibrator, ADT761A, 0.01%FS accuracy, -0.9 bar to 100 bar, 1/2NPT F, CP1.5K and CP600 sensors included | $36,542.00 | |
| ADT761A-1.5K-02-CP100-B | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/4BSP F, CP1.5K and CP100 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP100-B2 | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/2BSP F, CP1.5K and CP100 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP100-M | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, M20x1.5 F, CP1.5K and CP100 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP100-N | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/4NPT F, CP1.5K and CP100 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP100-N2 | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/2NPT F, CP1.5K and CP100 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP150-B | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/4BSP F, CP1.5K and CP150 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP150-B2 | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/2BSP F, CP1.5K and CP150 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP150-M | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, M20x1.5 F, CP1.5K and CP150 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP150-N | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/4NPT F, CP1.5K and CP150 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP150-N2 | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/2NPT F, CP1.5K and CP150 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP1K-B | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/4BSP F, CP1.5K and CP1K sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP1K-B2 | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/2BSP F, CP1.5K and CP1K sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP1K-M | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, M20x1.5 F, CP1.5K and CP1K sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP1K-N | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/4NPT F, CP1.5K and CP1K sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP1K-N2 | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/2NPT F, CP1.5K and CP1K sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP200-B | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/4BSP F, CP1.5K and CP200 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP200-B2 | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/2BSP F, CP1.5K and CP200 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP200-M | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, M20x1.5 F, CP1.5K and CP200 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP200-N | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/4NPT F, CP1.5K and CP200 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP200-N2 | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/2NPT F, CP1.5K and CP200 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP300-B | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/4BSP F, CP1.5K and CP300 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP300-B2 | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/2BSP F, CP1.5K and CP300 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP300-M | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, M20x1.5 F, CP1.5K and CP300 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP300-N | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/4NPT F, CP1.5K and CP300 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP300-N2 | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/2NPT F, CP1.5K and CP300 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP30-B | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/4BSP F, CP1.5K and CP30 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP30-B2 | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/2BSP F, CP1.5K and CP30 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP30-M | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, M20x1.5 F, CP1.5K and CP30 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP30-N | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/4NPT F, CP1.5K and CP30 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP30-N2 | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/2NPT F, CP1.5K and CP30 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP35-B | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/4BSP F, CP1.5K and CP35 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP35-B2 | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/2BSP F, CP1.5K and CP35 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP35-M | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, M20x1.5 F, CP1.5K and CP35 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP35-N | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/4NPT F, CP1.5K and CP35 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP35-N2 | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/2NPT F, CP1.5K and CP35 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP500-B | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/4BSP F, CP1.5K and CP500 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP500-B2 | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/2BSP F, CP1.5K and CP500 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP500-M | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, M20x1.5 F, CP1.5K and CP500 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP500-N | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/4NPT F, CP1.5K and CP500 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP500-N2 | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/2NPT F, CP1.5K and CP500 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP50-B | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/4BSP F, CP1.5K and CP50 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP50-B2 | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/2BSP F, CP1.5K and CP50 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP50-M | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, M20x1.5 F, CP1.5K and CP50 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP50-N | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/4NPT F, CP1.5K and CP50 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP50-N2 | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/2NPT F, CP1.5K and CP50 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP600-B | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/4BSP F, CP1.5K and CP600 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP600-B2 | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/2BSP F, CP1.5K and CP600 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP600-M | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, M20x1.5 F, CP1.5K and CP600 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP600-N | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/4NPT F, CP1.5K and CP600 sensors included | $32,179.00 | |
| ADT761A-1.5K-02-CP600-N2 | Automated Pressure Calibrator, ADT761A, 0.02%FS accuracy, -0.9 bar to 100 bar, 1/2NPT F, CP1.5K and CP600 sensors included | $32,179.00 |
