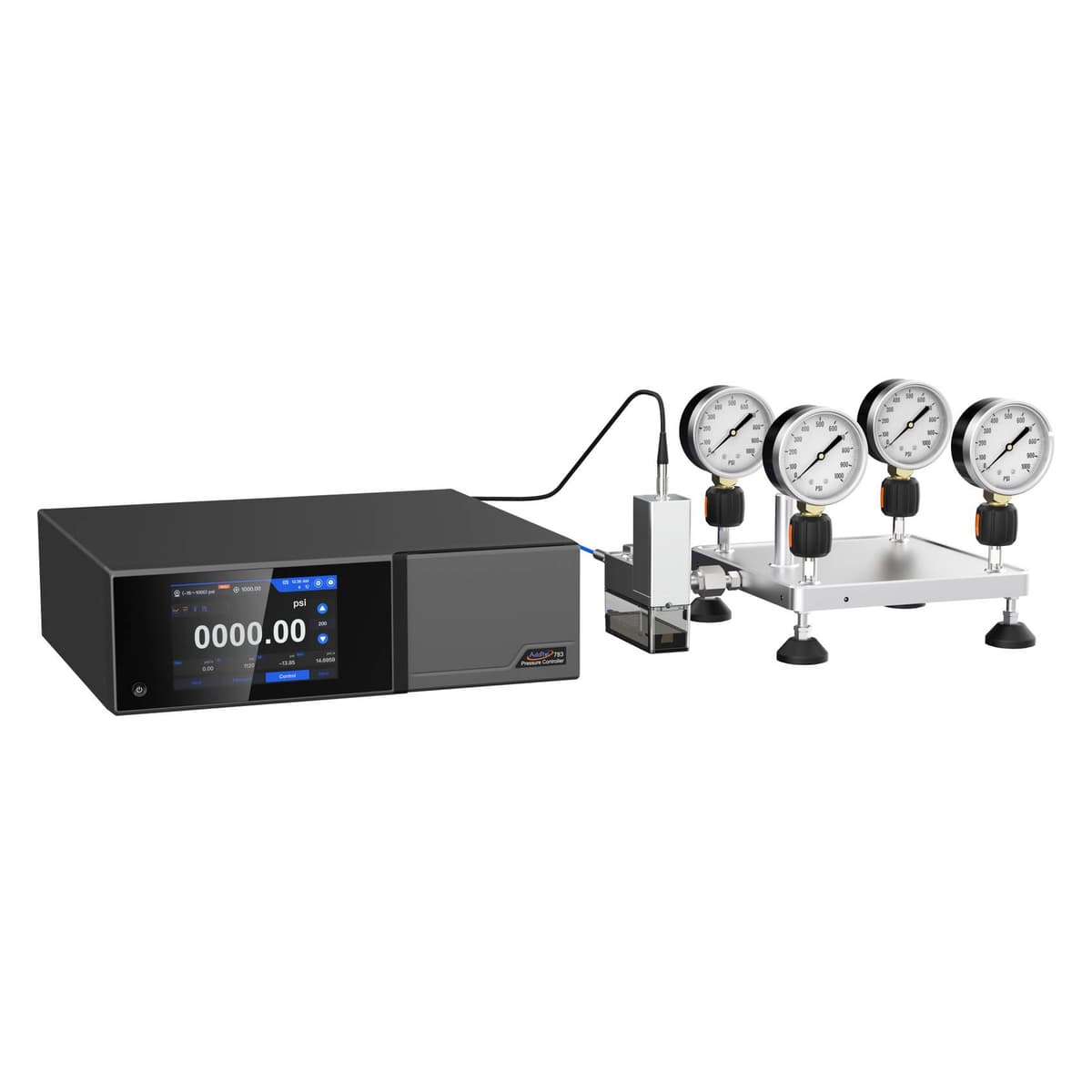

Additel 783 Pressure Controller
Benchtop modular pneumatic pressure controller with two removable ADT151 modules, optional barometer, and a 7 in touchscreen. Control stability 0.003% FS, ranges to 6,000 psi, ultra-high speed. ISO 17025 cert included. Base unit — modules sold separately. From $8,079.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Additel 783 is a benchtop modular pneumatic pressure controller: two removable ADT151 control modules and an optional barometric module cover a wide range at high speed without giving up accuracy or stability. A 7 in color touchscreen and icon-driven interface run automated production, test, and calibration work.
Unlike the portable 761A (pneumatic, built-in pump, generation to 1,500 psi) and 762 (hydraulic, generation to 15,000 psi), the 783 is a rack-mountable bench controller that uses an external air source for ultra-high-speed control — typical 20% step in 10 seconds, control stability 0.003% FS (typically 0.001% FS). ADT151 modules swap in about 30 seconds; opening the cabin automatically vents pressure.
Four base units: ADT783-D for differential and gauge from −14.35 psi to 35 psi (2.5 bar), modules down to ±10 inH2O; ADT783-1K from −14.35 psi to 1,000 psi (70 bar); ADT783-3.6K to 3,600 psi (250 bar); and ADT783-6K to 6,000 psi (420 bar). Accuracies of 0.02% FS, 0.01% FS, and 0.01% RD. Optional barometer switches gauge and absolute. Optional 9065 electrical module adds 7.5-digit mA/V measure and 24 V loop. Every unit includes an ISO 17025 accredited calibration certificate with data. Base controllers ship without pressure modules. From $8,079.
Specifications
| Pressure | |
| Control range (6K) | −14.35 to 6,000 psi (−0.99 to 420 bar) on ADT783-6K |
| Control range (3.6K) | −14.35 to 3,600 psi (−0.99 to 250 bar) on ADT783-3.6K |
| Control range (1K) | −14.35 to 1,000 psi (−0.99 to 70 bar) on ADT783-1K |
| Control range (D) | −14.35 to 35 psi (−0.99 to 2.5 bar), differential and gauge; modules down to ±10 inH2O |
| Accuracy | 0.02% FS, 0.01% FS, and 0.01% RD (module-dependent) |
| Control stability | < 0.003% FS, typically 0.001% FS |
| Control speed | Typical 20% step in < 10 s (≤ 20 s on ADT783-6K); max overshoot < 1% FS |
| Internal modules | Two removable ADT151 dual-range control modules (high and low bay); swap in ~30 seconds |
| Barometer | Optional ADT151-BP (±22 Pa) or BPH (±10 Pa); switch gauge / absolute |
| Supply | External clean dry nitrogen or air (not a built-in pump) |
| Load / media | Max load volume 1,000 mL; optional ADT108-KIT contamination prevention system |
| Electrical | |
| Optional 9065 module | Plug-and-play USB; 7.5-digit V/mA measure and 24 V loop for transmitter work |
| I/O | |
| Drive / alarm / switch | 3-channel external drive valves, 3 volt-free NO/NC relays, pressure switch test port |
| General | |
| Form factor | Benchtop / 3U 19 in rack; 17.32 × 5.23 × 14.96 in (440 × 133 × 380 mm); chassis 16.9 kg |
| Display | 7 in capacitive color touchscreen, 1280 × 800 |
| Communications | LAN, USB, RS232; Wi-Fi / Bluetooth / GPIB via USB; SCPI emulation (PACE, Fluke, Mensor, WIKA) |
| Power | AC 100–240 V, 50/60 Hz; 150 W max |
| Ingress | IP20, indoor use |
| Calibration | ISO 17025 accredited calibration with data included |
| Warranty | 1 year |
| What's included | Base controller only — ADT151 pressure modules sold separately |
| Starting price | From $8,079 |
Videos
Documents
Ordering information
4 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| ADT783-1K | Pressure Controller, ADT783-1K, pressure controller -14.5 to 1000 psi (-0.95 to 70 bar), pressure modules not included | $8,079.00 | |
| ADT783-3.6K | Pressure Controller, ADT783-3.6K, pressure controller -14.5 to 3600 psi (-0.99 to 250 bar), pressure modules not included | $9,235.00 | |
| ADT783-6K | Pressure Controller, ADT783-6K, pressure controller -14.5 to 6000 psi (-0.99 to 420 bar), pressure modules not included | $12,095.00 | |
| ADT783-D | Pressure Controller, ADT783-D, pressure controller -14.35 to 35 psi (-0.99 to 2.5 bar), pressure modules not included | $10,389.00 |
