Additel 780-1K Electric Pump
Benchtop electric pump that generates vacuum to 1,000 psi (70 bar) of air for the Additel 780 controller — no nitrogen bottle. Built-in filter and liquid trap. Pump $14,262; maintenance kit $218.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview

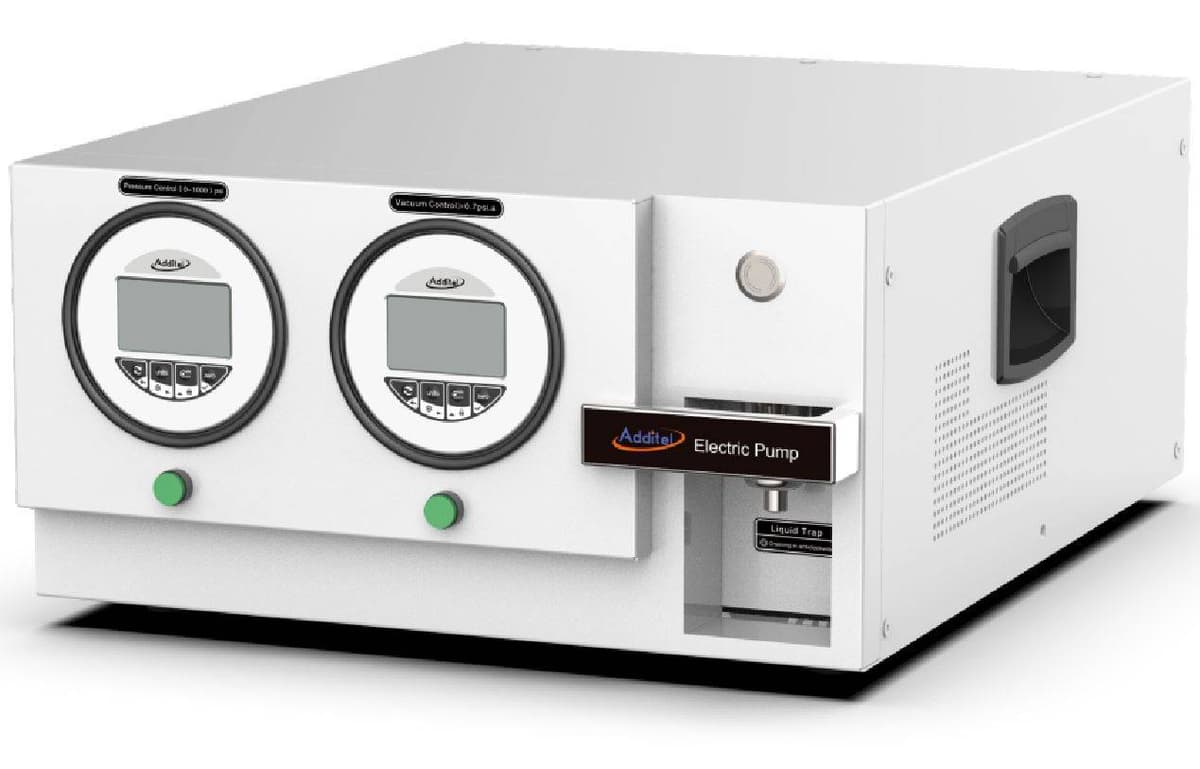

The Additel 780-1K-EPUMP is the optional electric pump for the Additel 780 series pressure controller. Typical controllers need a nitrogen bottle for supply gas, which makes the bench hard to move. With this pump, the 780 generates vacuum to 1,000 psi (70 bar) as a standalone air source — no gas bottle.
The pump’s own range is −13.8 to 1,080 psi (−0.95 to 75 bar) on air, with a 150 mL volume and a G1/8 female outlet. A built-in filter and liquid trap protect the controller. Two LED displays set pressure limits. Typical time to maximum pressure with an ADT780 controller is about two minutes. The enclosure is 17.3 × 9.3 × 21.7 in (440 × 235 × 550 mm) and weighs 69.6 lb (31.6 kg). Power is 100–240 V. Desktop mounting is standard; a rack-mount kit is optional. Storage −20 to 70°C; operating 0–90% RH non-condensing.
This catalog page is the electric pump and its maintenance kit — not the 780 controller itself. The pump is $14,262 (ADT780-1K-EPUMP). The ADT780-1K-EPUMP-MK maintenance kit is $218. Parent list price is the kit.
Specifications
| Pressure | |
| Generated range | Vacuum to 1,000 psi (70 bar) with an ADT780 controller |
| Pump range | −13.8 to 1,080 psi (−0.95 to 75 bar) |
| Volume | 150 mL |
| Typical max-pressure time | Approx. 2 minutes with an ADT780 controller |
| Media | |
| Working medium | Air |
| Mechanical | |
| Filter / trap | Built-in filter and liquid trap |
| Outlet port | G1/8 female |
| Control | 2 LED displays with pressure-limit settings |
| Mounting | Standard desktop; optional rack mount |
| Size / weight | 17.3 × 9.3 × 21.7 in (440 × 235 × 550 mm); 69.6 lb (31.6 kg) |
| Power | |
| Supply | 100 to 240 V |
| Environment | |
| Temperature / humidity | Storage −20 to 70°C; operating 0–90% RH non-condensing |
| Included | |
| MK | ADT780-1K-EPUMP-MK maintenance kit is a separate $218 variant |
| General | |
| Starting price | Pump $14,262; maintenance kit $218 |
Documents
Ordering information
2 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| ADT780-1K-EPUMP | Electric Pump, -15 to 1K psi | $14,262.00 | |
| ADT780-1K-EPUMP-MK | Maintenance kit for ADT780-1K-EPUMP | $218.00 |
