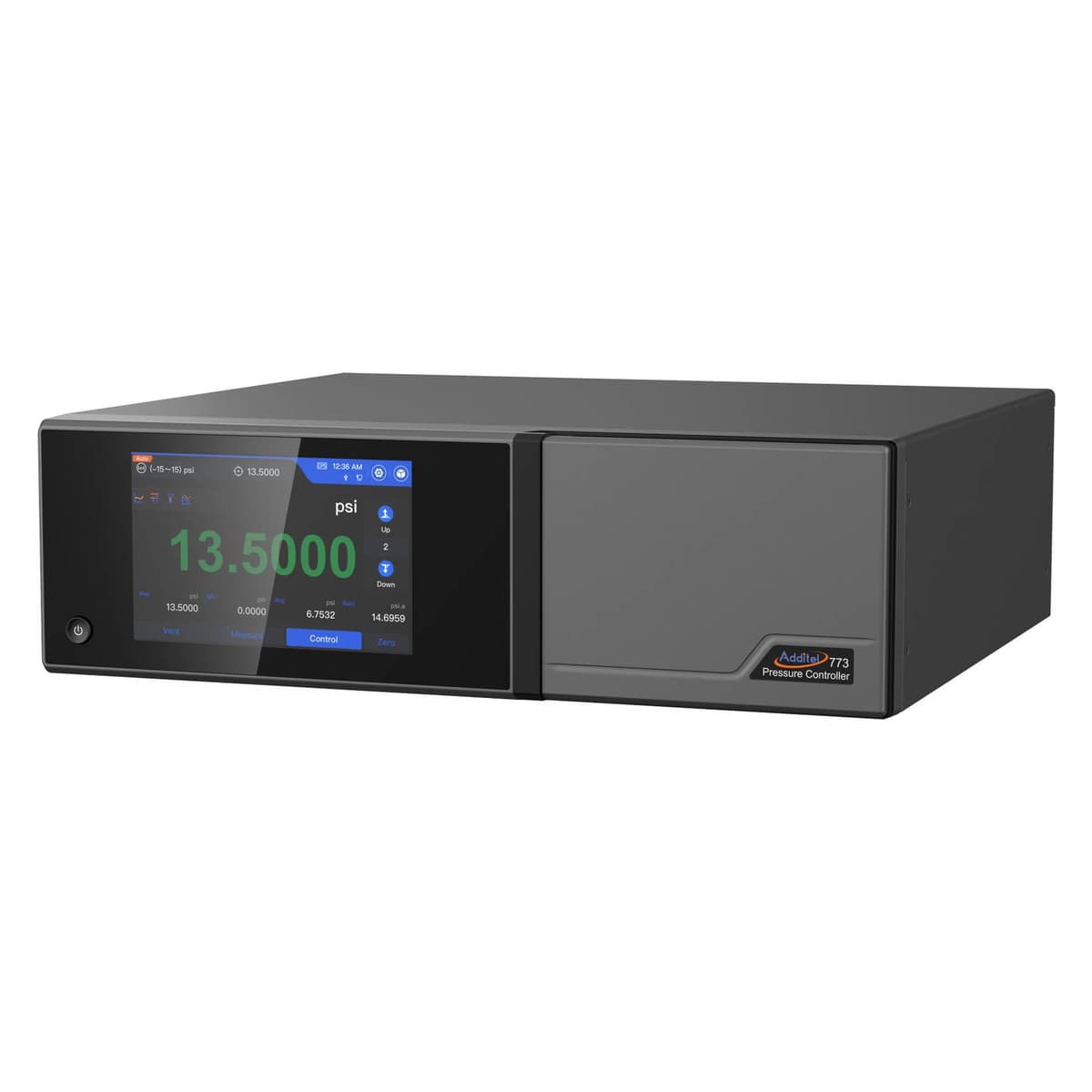

Additel 773 Pressure Controller
Low-pressure benchtop controller/generator with a built-in pump — no external air source. Two removable ADT151 modules, 7 in touchscreen, 0.003% FS stability. LLP and D models, optional barometer and CPS. ISO 17025 cert included. Base unit — modules sold separately. From $16,165.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Additel 773 is a low-pressure benchtop controller/generator: a built-in differential pressure pump generates and controls pressure without an external air source. Two removable ADT151 control modules and an optional barometric module cover a wide low-pressure range. A 7 in color touchscreen and icon-driven interface run automated production, test, and calibration work.
Unlike the 783 (external air source, ranges to 6,000 psi), the 773 is the low-pressure sibling with an integrated pump — typical 20% step in 10 seconds, control stability 0.003% FS. ADT151 modules swap in about 30 seconds; opening the cabin automatically vents pressure.
Two base units: ADT773-LLP from −380 to 400 inH2O (−13.5 to 14.5 psi / −0.95 to 1 bar); ADT773-D from −380 to 2,800 inH2O (−13.5 to 100 psi / −0.95 to 7 bar). Accuracies of 0.02% FS and 0.01% FS (module-dependent; 0.05% FS on the lowest DP modules). Optional barometer switches gauge and absolute. Optional ADT108-KIT contamination prevention system (CPS). Optional 9065 electrical module adds 7.5-digit mA/V measure and 24 V loop. Every unit includes an ISO 17025 accredited calibration certificate with data. Base controllers ship without pressure modules. From $16,165.
Specifications
| Pressure | |
| Control range (D) | −380 to 2,800 inH2O (−13.5 to 100 psi / −0.95 to 7 bar) on ADT773-D |
| Control range (LLP) | −380 to 400 inH2O (−13.5 to 14.5 psi / −0.95 to 1 bar) on ADT773-LLP |
| Accuracy | 0.02% FS and 0.01% FS selectable (0.05% FS on DP1 / DP2 / DP5; 0.02% FS on DP10) |
| Control stability | < 0.003% FS (or 0.05 Pa, whichever is greater) |
| Control speed | Typical 20% step in < 10 s; max overshoot < 1% FS |
| Internal modules | Two removable ADT151 dual-range control modules (high and low bay) plus optional barometer bay; swap in ~30 seconds |
| Barometer | Optional ADT151-BP (±22 Pa) or BPH (±10 Pa); switch gauge / absolute |
| Supply | Built-in differential pressure pump — no external air source required |
| Load / media | Max load volume 500 mL; optional ADT108-KIT contamination prevention system (CPS) |
| Electrical | |
| Optional 9065 module | Plug-and-play USB; 7.5-digit V/mA measure and 24 V loop for transmitter work |
| I/O | |
| Drive / alarm / switch | 3-channel external drive valves (one fixed to CPS), 3 volt-free NO/NC relays, pressure switch test port |
| General | |
| Form factor | Benchtop / 3U 19 in rack; 17.32 × 5.23 × 14.96 in (440 × 133 × 380 mm); chassis 17.6 kg |
| Display | 7 in capacitive color touchscreen, 1280 × 800 |
| Communications | LAN, USB, RS232; Wi-Fi / Bluetooth / GPIB via USB; SCPI emulation (PACE, Fluke, Mensor, WIKA) |
| Power | AC 100–240 V, 50/60 Hz; 150 W max |
| Ingress | IP20, indoor use |
| Calibration | ISO 17025 accredited calibration with data included |
| Warranty | 1 year |
| What's included | Base controller only — ADT151 pressure modules sold separately |
| Starting price | From $16,165 |
Videos
Documents
Ordering information
2 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| ADT773-D | Pressure Controller, ADT773-D, Automated pressure controller and generator - 380 inH2O to 2800 inH2O (-0.95 to 7 bar), pressure modules not included | $17,375.00 | |
| ADT773-LLP | Pressure Controller, ADT773-LLP, Automated pressure controller and generator - 380 inH2O to 400 inH2O (-0.95 to 1 bar), pressure modules not included | $16,165.00 |
