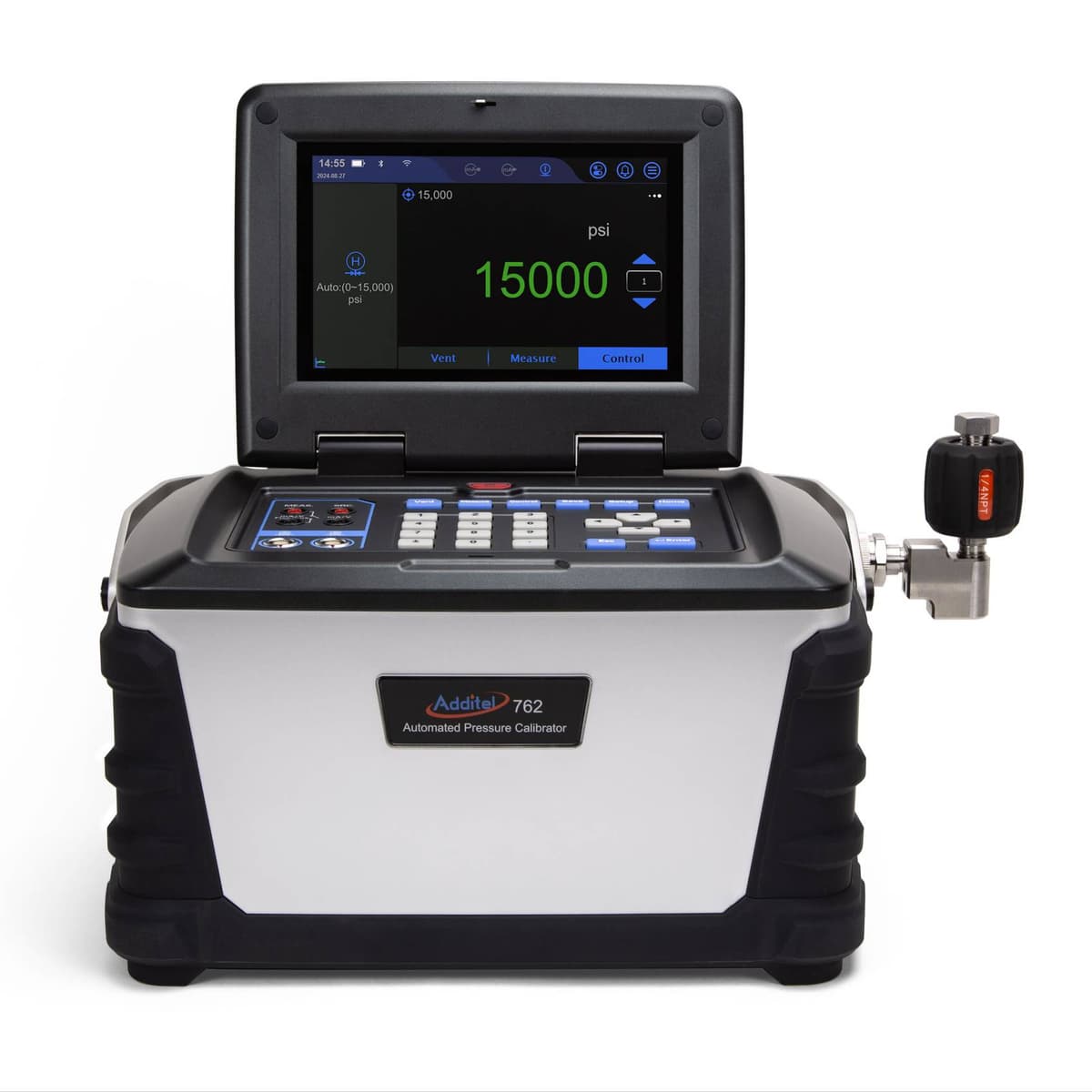

Additel 762 Automated Hydraulic Pressure Calibrator
Model ADT762
Portable automated hydraulic pressure calibrator with a built-in electric pump, dual-range auto-switch, auto-purge, full HART, and 24 V loop. Generation and control to 15,000 psi (1,035 bar) at 0.01% FS, control stability 0.005% FS. Wi-Fi / Bluetooth / USB / Ethernet. ISO 17025 cert included. From $39,634.
From $39,634.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Additel 762 is a portable automated hydraulic pressure calibrator: a patented electric pump and precision controller generate and hold a setpoint so you can calibrate gauges, transmitters, and switches in the field or the lab without a separate hand pump. Dual-range auto-switch, auto-purge, HART communication, and 24 V loop power are built in.
A complete turnkey solution for automation of pressure calibration work up to 15,000 psi (1,035 bar), with accuracy to 0.01% FS, control stability ≤0.005% FS, and dual-range calibration.
Two base models: ADT762-GP10K with dual-range 0–3,000 / 0–10,000 psi (200 / 700 bar), and ADT762-GP15K with 0–6,000 / 0–15,000 psi (420 / 1,035 bar). As the calibrator is pressurized it automatically selects the best internal calibration for the current setpoint, or you can lock a range manually. ADT762W variants are configured for water and include the ADT107 two-port manifold with zero control valve.
Purging hydraulic systems is automated: one button runs the built-in auto-purge so technicians are not bleeding air by hand. Two external ADT161 module channels extend measurement (all ADT161 ranges, including 60,000 psi) and optional external control to 15,000 psi. Electrical includes mA / V measure and source plus 24 V loop. Documenting covers a full HART field communicator, PROFIBUS PA, up to 1,000 tasks, and 1,000,000 logged readings. Every unit includes an ISO 17025 accredited calibration certificate with data. From $39,634.
Specifications
| Pressure | |
| Generation / control (GP15K) | 15 to 15,000 psi (1 to 1,035 bar); dual-range 0–6,000 / 0–15,000 psi |
| Generation / control (GP10K) | 15 to 10,000 psi (1 to 700 bar); dual-range 0–3,000 / 0–10,000 psi |
| Dual-range | Auto-switch or manual lock; 0.01% or 0.02% FS applies to both ranges |
| Accuracy | 0.01% FS or 0.02% FS (FS is the selected range) |
| Control stability | ≤0.005% FS from 100 to 15,000 psi; stability duration > 5 min |
| Internal module | One built-in dual-range module |
| External modules | Two channels; ADT161 control to 15,000 psi; all ADT161 for measurement (to 60,000 psi) |
| Media | Sebacate oil (standard ADT762); water on ADT762W with ADT107 two-port manifold |
| Reservoir / load | 350 ml reservoir with filter; max external load 80 ml @ 60 MPa, 60 ml @ 100 MPa (50 ml recommended) |
| Auto-purge | Built-in automated air-removal for hydraulic systems |
| Electrical | |
| mA / V measure | ±25 / ±50 mA and auto-ranging V to ±30 V, 0.008% RD + offset |
| Source / loop | mA source to 25 mA, V source to 16 V, 24 V loop power (50 mA max) |
| Documenting | |
| HART / PROFIBUS / tasks / logging | Full HART field communicator, PROFIBUS PA, up to 1,000 tasks, 1,000,000 readings |
| General | |
| Pump | Built-in patented electric pump and controller; >1,000,000 cycle life |
| Weight / size | 28 lb (12.8 kg) without media; 11.81 × 8.66 × 7.56 in (300 × 220 × 192 mm) |
| Display | 7 in color TFT touchscreen, 800 × 480 (plus keypad) |
| Battery | Rechargeable Li-ion; typically 8 hours, recharge < 4 hours |
| Communications | Wi-Fi, Bluetooth, USB, LAN, and Ethernet |
| Ingress | IP31 |
| Calibration | ISO 17025 accredited calibration with data included |
| Warranty | 18 months |
| Starting price | From $39,634 |
Videos
Additel 762 Overview and Features
Additel 762 — Calibrating with Tasks
Documents
Build your part number
Configure your ADT762
Pick your options and we'll build the exact part number - 40 configurations match so far.
Select 4 more options to get your part number and price.
Ordering information
40 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| ADT762-01-GP10K-B | Automated Pressure Calibrator, ADT762, 0.01%FS, first range: 0 bar to 700 bar (0~10,000 psi), the second range is 0-200 bar (0~3,000 psi), 1/4BSP F | $46,180.00 | |
| ADT762-01-GP10K-B2 | Automated Pressure Calibrator, ADT762, 0.01%FS, first range: 0 bar to 700 bar (0~10,000 psi), the second range is 0-200 bar (0~3,000 psi), 1/2BSP F | $46,180.00 | |
| ADT762-01-GP10K-M | Automated Pressure Calibrator, ADT762, 0.01%FS, first range: 0 bar to 700 bar (0~10,000 psi), the second range is 0-200 bar (0~3,000 psi), M20x1.5 F | $46,180.00 | |
| ADT762-01-GP10K-N | Automated Pressure Calibrator, ADT762, 0.01%FS, first range: 0 bar to 700 bar (0~10,000 psi), the second range is 0-200 bar (0~3,000 psi), 1/4NPT F | $46,180.00 | |
| ADT762-01-GP10K-N2 | Automated Pressure Calibrator, ADT762, 0.01%FS, first range: 0 bar to 700 bar (0~10,000 psi), the second range is 0-200 bar (0~3,000 psi), 1/2NPT F | $46,180.00 | |
| ADT762-01-GP15K-B | Automated Pressure Calibrator, ADT762, 0.01%FS, range 1: 0 bar to 400 bar, range 2: 0 bar to 1035 bar, 1/4BSP F | $48,490.00 | |
| ADT762-01-GP15K-B2 | Automated Pressure Calibrator, ADT762, 0.01%FS, range 1: 0 bar to 400 bar, range 2: 0 bar to 1035 bar, 1/2BSP F | $48,490.00 | |
| ADT762-01-GP15K-M | Automated Pressure Calibrator, ADT762, 0.01%FS, range 1: 0 bar to 400 bar, range 2: 0 bar to 1035 bar, M20x1.5 F | $48,490.00 | |
| ADT762-01-GP15K-N | Automated Pressure Calibrator, ADT762, 0.01%FS, range 1: 0 bar to 400 bar, range 2: 0 bar to 1035 bar, 1/4NPT F | $48,490.00 | |
| ADT762-01-GP15K-N2 | Automated Pressure Calibrator, ADT762, 0.01%FS, range 1: 0 bar to 400 bar, range 2: 0 bar to 1035 bar, 1/2NPT F | $48,490.00 | |
| ADT762-02-GP10K-B | Automated Pressure Calibrator, ADT762, 0.02%FS, first range: 0 bar to 700 bar (0~10,000 psi), the second range is 0-200 bar (0~3,000 psi), 1/4BSP F | $39,634.00 | |
| ADT762-02-GP10K-B2 | Automated Pressure Calibrator, ADT762, 0.02%FS, first range: 0 bar to 700 bar (0~10,000 psi), the second range is 0-200 bar (0~3,000 psi), 1/2BSP F | $39,634.00 | |
| ADT762-02-GP10K-M | Automated Pressure Calibrator, ADT762, 0.02%FS, first range: 0 bar to 700 bar (0~10,000 psi), the second range is 0-200 bar (0~3,000 psi), M20x1.5 F | $39,634.00 | |
| ADT762-02-GP10K-N | Automated Pressure Calibrator, ADT762, 0.02%FS, first range: 0 bar to 700 bar (0~10,000 psi), the second range is 0-200 bar (0~3,000 psi), 1/4NPT F | $39,634.00 | |
| ADT762-02-GP10K-N2 | Automated Pressure Calibrator, ADT762, 0.02%FS, first range: 0 bar to 700 bar (0~10,000 psi), the second range is 0-200 bar (0~3,000 psi), 1/2NPT F | $39,634.00 | |
| ADT762-02-GP15K-B | Automated Pressure Calibrator, ADT762, 0.02%FS, range 1: 0 bar to 400 bar, range 2: 0 bar to 1035 bar, 1/4BSP F | $41,944.00 | |
| ADT762-02-GP15K-B2 | Automated Pressure Calibrator, ADT762, 0.02%FS, range 1: range 1: 0 bar to 400 bar, range 2: 0 bar to 1035 bar, 1/2BSP F | $41,944.00 | |
| ADT762-02-GP15K-M | Automated Pressure Calibrator, ADT762, 0.02%FS, range 1: 0 bar to 400 bar, range 2: 0 bar to 1035 bar, M20x1.5 F | $41,944.00 | |
| ADT762-02-GP15K-N | Automated Pressure Calibrator, ADT762, 0.02%FS, range 1: 0 bar to 400 bar, range 2: 0 bar to 1035 bar, 1/4NPT F | $41,944.00 | |
| ADT762-02-GP15K-N2 | Automated Pressure Calibrator, ADT762, 0.02%FS, range 1: 0 bar to 400 bar, range 2: 0 bar to 1035 bar, 1/2NPT F | $41,944.00 | |
| ADT762W-01-GP10K-B | Automated Pressure Calibrator, ADT762W, for use with water including ADT107 two-port manifold with zero control valve, 0.01%FS, first range: 0 bar to 700 bar (0~10,000 psi), the second range is 0-200 bar (0~3,000 psi), 1/4BSP F | $52,787.00 | |
| ADT762W-01-GP10K-B2 | Automated Pressure Calibrator, ADT762W, for use with water including two-port manifold, 0.01%FS, first range: 0 bar to 700 bar (0~10,000 psi), the second range is 0-200 bar (0~3,000 psi), 1/2BSP F | $52,787.00 | |
| ADT762W-01-GP10K-M | Automated Pressure Calibrator, ADT762W, for use with water including two-port manifold, 0.01%FS, first range: 0 bar to 700 bar (0~10,000 psi), the second range is 0-200 bar (0~3,000 psi), M20x1.5 F | $52,787.00 | |
| ADT762W-01-GP10K-N | Automated Pressure Calibrator, ADT762W, for use with water including two-port manifold, 0.01%FS, first range: 0 bar to 700 bar (0~10,000 psi), the second range is 0-200 bar (0~3,000 psi), 1/4NPT F | $52,787.00 | |
| ADT762W-01-GP10K-N2 | Automated Pressure Calibrator, ADT762W, for use with water including two-port manifold, 0.01%FS, first range: 0 bar to 700 bar (0~10,000 psi), the second range is 0-200 bar (0~3,000 psi), 1/2NPT F | $52,787.00 | |
| ADT762W-01-GP15K-B | Automated Pressure Calibrator, ADT762W, for use with water including ADT107 two-port manifold with zero control valve, 0.01%FS, first range: 0 bar to 1035 bar (0~15,000 psi), the second range is 0-400 bar (0~6,000 psi), 1/4BSP F | $55,097.00 | |
| ADT762W-01-GP15K-B2 | Automated Pressure Calibrator, ADT762W, for use with water including two-port manifold, 0.01%FS, first range: 0 bar to 1035 bar (0~15,000 psi), the second range is 0-400 bar (0~6,000 psi), 1/2BSP F | $55,097.00 | |
| ADT762W-01-GP15K-M | Automated Pressure Calibrator, ADT762W, for use with water including two-port manifold, 0.01%FS, first range: 0 bar to 1035 bar (0~15,000 psi), the second range is 0-400 bar (0~6,000 psi), M20x1.5 F | $55,097.00 | |
| ADT762W-01-GP15K-N | Automated Pressure Calibrator, ADT762W, for use with water including two-port manifold, 0.01%FS, first range: 0 bar to 1035 bar (0~15,000 psi), the second range is 0-400 bar (0~6,000 psi), 1/4NPT F | $55,097.00 | |
| ADT762W-01-GP15K-N2 | Automated Pressure Calibrator, ADT762W, for use with water including two-port manifold, 0.01%FS, first range: 0 bar to 1035 bar (0~15,000 psi), the second range is 0-400 bar (0~6,000 psi), 1/2NPT F | $55,097.00 | |
| ADT762W-02-GP10K-B | Automated Pressure Calibrator, ADT762W, for use with water including two port manifold, 0.02%FS,first range: 0 bar to 700 bar (0~10,000 psi), the second range is 0-200 bar (0~3,000 psi), the second range is 0-200 bar, 1/4BSP F | $46,241.00 | |
| ADT762W-02-GP10K-B2 | Automated Pressure Calibrator, ADT762W, for use with water including two-port manifold, 0.02%FS, first range: 0 bar to 700 bar, the second range is 0-200 bar, 1/2BSP F | $46,241.00 | |
| ADT762W-02-GP10K-M | Automated Pressure Calibrator, ADT762W, for use with water including two port manifold, 0.02%FS, first range: 0 bar to 700 bar (0~10,000 psi), the second range is 0-200 bar (0~3,000 psi), M20x1.5 F | $46,241.00 | |
| ADT762W-02-GP10K-N | Automated Pressure Calibrator, ADT762W, for use with water including two-port manifold, 0.02%FS, first range: 0 bar to 700 bar (0~10,000 psi), the second range is 0-200 bar (0~3,000 psi), 1/4NPT F | $46,241.00 | |
| ADT762W-02-GP10K-N2 | Automated Pressure Calibrator, ADT762W, for use with water including two-port manifold, 0.02%FS, first range: 0 bar to 700 bar (0~10,000 psi), the second range is 0-200 bar (0~3,000 psi), 1/2NPT F | $46,241.00 | |
| ADT762W-02-GP15K-B | Automated Pressure Calibrator, ADT762W, for use with water including two port manifold, 0.02%FS, first range: 0 bar to 1035 bar (0~15,000 psi), the second range is 0-400 bar (0~6,000 psi), 1/4BSP F | $48,551.00 | |
| ADT762W-02-GP15K-B2 | Automated Pressure Calibrator, ADT762W, for use with water including two-port manifold, 0.02%FS, first range: 0 bar to 1035 bar (0~15,000 psi), the second range is 0-400 bar (0~6,000 psi), 1/2BSP F | $48,551.00 | |
| ADT762W-02-GP15K-M | Automated Pressure Calibrator, ADT762W, for use with water including two port manifold, 0.02%FS, first range: 0 bar to 1035 bar (0~15,000 psi), the second range is 0-400 bar (0~6,000 psi), M20x1.5 F | $48,551.00 | |
| ADT762W-02-GP15K-N | Automated Pressure Calibrator, ADT762W, for use with water including two-port manifold, 0.02%FS, first range: 0 bar to 1035 bar (0~15,000 psi), the second range is 0-400 bar (0~6,000 psi), 1/4NPT F | $48,551.00 | |
| ADT762W-02-GP15K-N2 | Automated Pressure Calibrator, ADT762W, for use with water including two-port manifold, 0.02%FS, first range: 0 bar to 1035 bar (0~15,000 psi), the second range is 0-400 bar (0~6,000 psi), 1/2NPT F | $48,551.00 |
