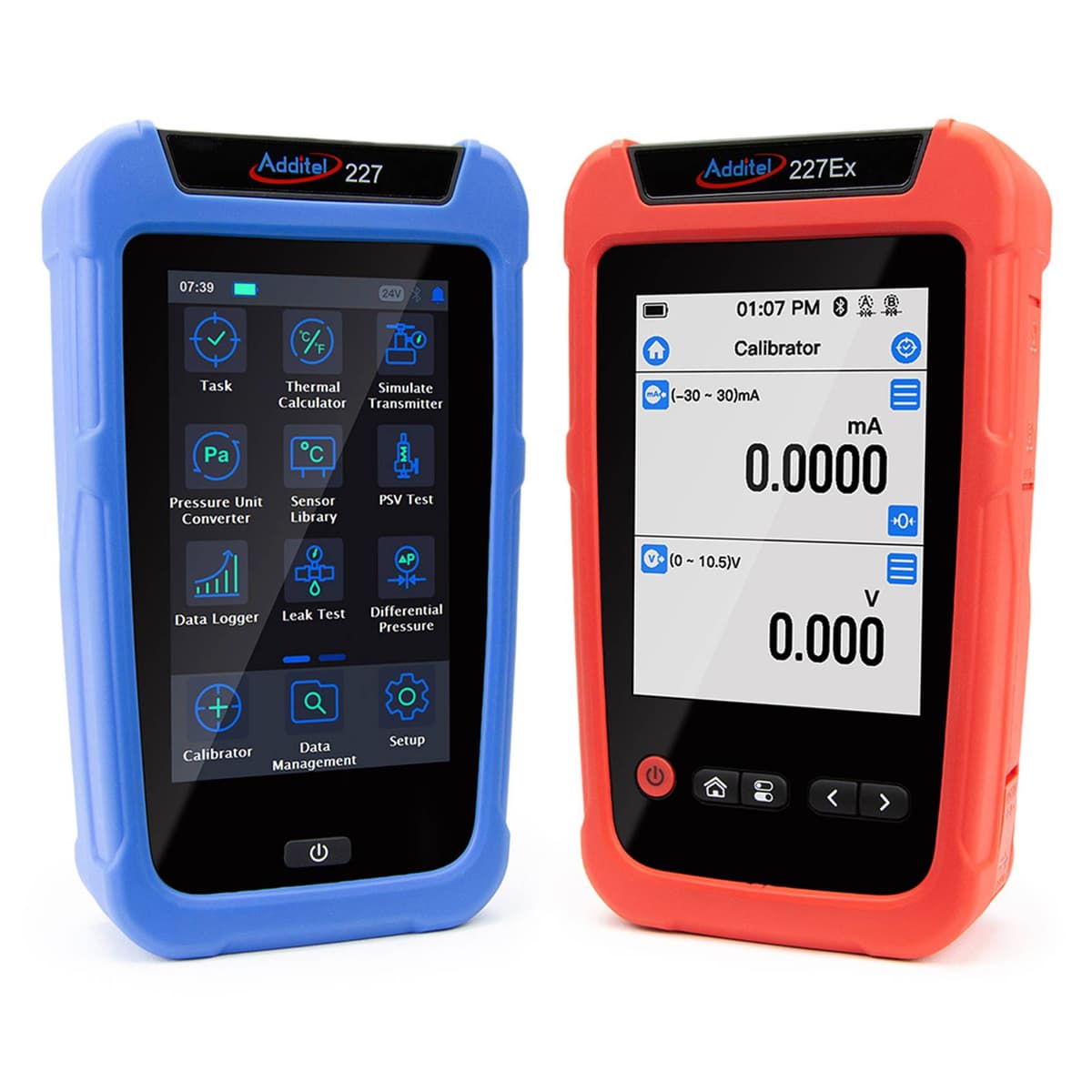

Additel 227 Documenting Process Calibrator
Documenting multifunction process calibrator for pressure, temperature, and electrical signals — paperless tasks, optional full HART communicator, intrinsically safe models, from $8,882.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Additel 227 is a portable documenting process calibrator that sources, simulates, and measures pressure, temperature, and electrical signals from a smartphone-like color touchscreen. Automated calibration tasks store pass/fail and hysteresis results on the instrument — up to 10,000 tasks on ADT227 (1,000 on ADT227Ex) — and sync with Additel ACal for paperless calibration management. ADT227-HART adds a built-in full HART communicator with a regularly updated DD library at no extra cost. An ATEX-certified intrinsically safe model (ADT227Ex / ADT227Ex-HART) is available for hazardous locations, and ADT227P / ADT227P-HART are the panel-mount configurations.
Accuracy is improved versus prior generations, including electrical accuracy of 0.005% RD + 0.005% FS, high-static differential pressure to 0.002% FS, and tighter thermocouple measurement with improved cold-junction compensation. Dual pressure-module ports, a built-in barometer, True RMS voltage measurement to 300 V AC (non-Ex), USB-C, and Bluetooth are standard. The IP67 housing is drop-tested to 1 meter. The removable Li-ion battery typically runs about 12 hours on ADT227 and up to 35 hours on ADT227Ex.
Onboard apps cover documenting tasks, HART communication, high-static differential pressure, leak test, safety-valve test, analog transmitter calibration, data logging (ADT227 / ADT227-HART), unit conversion, and thermal calculations. Every unit includes an ISO 17025 accredited calibration certificate with data. From $8,882.
Specifications
| Pressure | |
| High-static differential accuracy | 0.002% FS |
| Module ports | Dual external pressure module ports |
| Built-in barometer | 55 Pa accuracy |
| Electrical | |
| Electrical accuracy | 0.005% RD + 0.005% FS |
| High voltage measurement | ±300 V AC, True RMS (non-Ex) |
| Temperature | |
| Functions | Source, simulate, and measure RTD and thermocouple signals |
| Thermocouple CJC | Internal cold-junction compensation ±0.15°C |
| Documenting | |
| Onboard tasks | Up to 10,000 documented tasks (ADT227); 1,000 (ADT227Ex) |
| Data logger | 500 results, up to 1,000,000 recordings, 7 channels (ADT227 / ADT227-HART) |
| Software | Additel ACal task and asset management |
| HART | |
| ADT227-HART | Built-in full HART communicator with free DD library updates |
| ADT227Ex-HART | Integrated HART communication to monitor, control, and calibrate transmitters |
| Safety & Compliance | |
| Intrinsic safety (Ex model) | ADT227Ex — ATEX / IECEx, Ex ia IIC T4 Ga |
| Ingress / durability | IP67, 1 meter drop test |
| General | |
| Display | Color capacitive touchscreen (smartphone-like UI) |
| Communication | Isolated USB Type-C and Bluetooth (up to 20 m) |
| Battery | Removable Li-ion; typically 12 hours (ADT227), 35 hours (ADT227Ex) |
| Calibration | ISO 17025 accredited calibration with data included |
| Warranty | 3 years |
| Starting price | From $8,882 |
Videos
Documents
Ordering information
5 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| ADT227EX | Documenting Process Calibrator, ADT227Ex, Temperature and Pressure, ATEX Certified Intrinsically Safe | $11,105.00 | |
| ADT227EX-HART | Documenting Process Calibrator, ADT227Ex, Temperature and Pressure, ATEX Certified Intrinsically Safe with HART communication | $13,670.00 | |
| ADT227-HART | Documenting Process Calibrator, ADT227, Temperature and Pressure with HART communicator | $10,975.00 | |
| ADT227P | Documenting Process Calibrator, ADT227P, Temperature and Pressure, panel mount configuration | $9,862.00 | |
| ADT227P-HART | Documenting Process Calibrator, ADT227P, Temperature and Pressure with HART communicator and panel mount configuration. | $11,956.00 |
