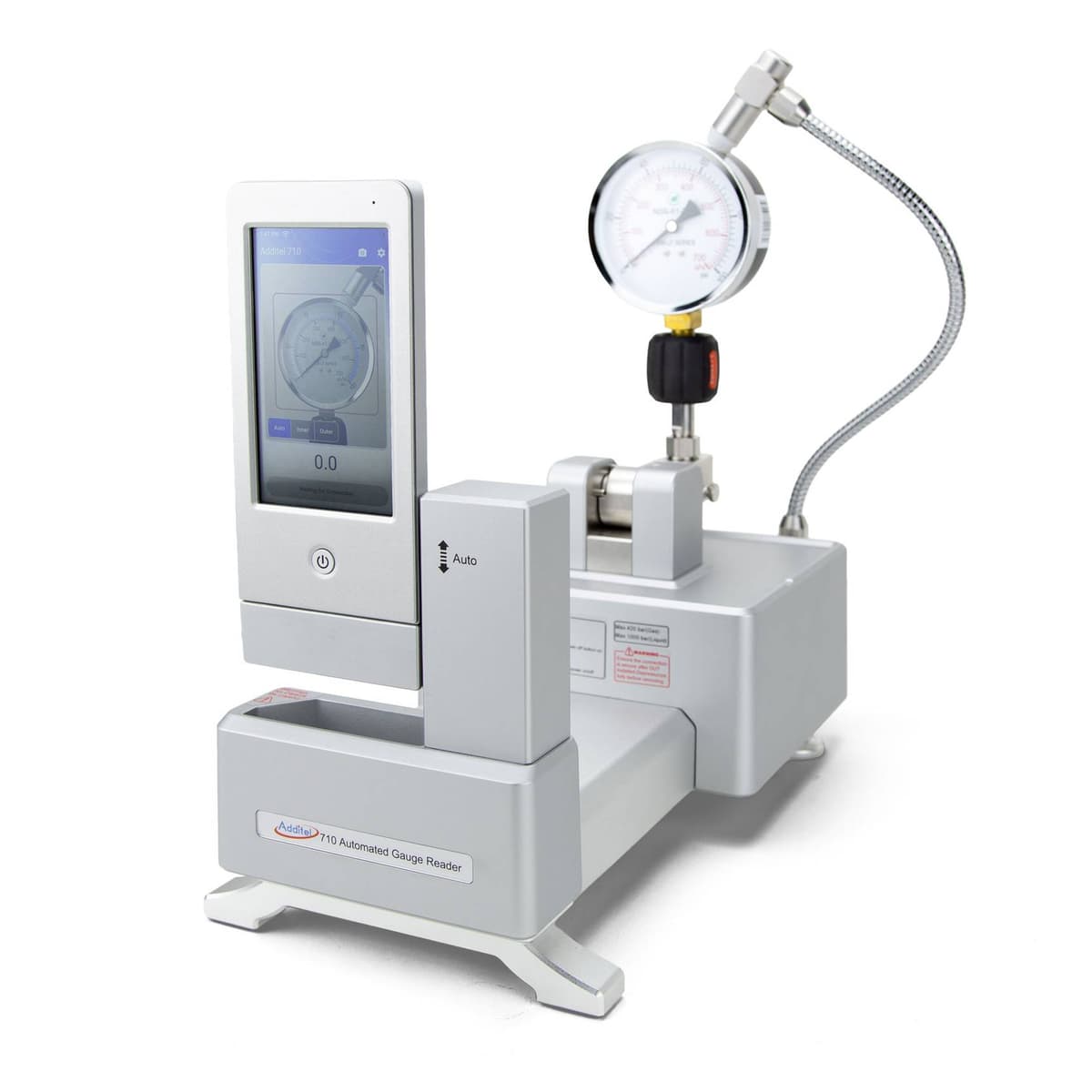

Additel 710 Automated Gauge Reader
Automated dial and digital gauge calibration system with a 50 MP auto-focus camera, AMetis recognition, built-in tapper, and barcode/QR scanning. Hands-free when paired with an Additel pressure controller and ACal. From $10,674.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Additel 710 is an automated dial and digital gauge calibration system for metrology labs, calibration service providers, and industrial workshops. It combines a precision pressure connection platform with AI-powered visual calibration and machine learning so gauge readings are taken from the camera stream rather than by eye. When paired with an Additel pressure controller and ACal software, the 710 runs a fully automated, unattended sequence — camera alignment, recognition, tapping, and data capture — which cuts manual steps and human error on high-volume work.
A 50-megapixel HD camera auto-zooms and focuses. An intelligent motorized platform centers the instrument and sets camera distance for radial (side) and axial (bottom) gauges, including a Flip-Extend Sync fixture for small-diameter axial gauges. Recognition accuracy is better than 0.1 division on standard single-pointer, single-scale gauges; dual-scale (inner/outer) gauges are supported. A built-in tapper stabilizes analog pointers. An integrated barcode and QR scanner sends asset data to ACal. Up to ten 710 units can be daisy-chained with ACal and the ADT100-710-KIT cascading kit.
Pressure range is −14.5 to 15,000 psi (−1 to 1,035 bar) on liquid media, or −14.5 to 6,000 psi (−1 to 420 bar) on gas. Media are nitrogen, compressed air, or liquid (once used with liquid, do not use for gas). Inlet is a 1/4 BSP male hand-tight quick connector. DUT ports are 1/4 NPT, 1/2 NPT, 1/4 BSP, 1/2 BSP, or M20×1.5 female. The 5-inch TFT touchscreen, WLAN, and Ethernet sit in a 7.48 × 10.82 × 15.43 in (190 × 275 × 392 mm) enclosure that weighs 8.5 kg. Power is 100–240 VAC, 50/60 Hz, 65 W max. CE. One-year warranty. From $10,674.
Specifications
| Pressure | |
| Range (liquid) | −14.5 to 15,000 psi (−1 to 1,035 bar) |
| Range (gas) | −14.5 to 6,000 psi (−1 to 420 bar) |
| Working medium | Nitrogen, compressed air, or liquid (once used with liquid, never use for gas) |
| Inlet | 1/4 BSP male hand-tight quick connector |
| DUT port | 1/4 NPT, 1/2 NPT, 1/4 BSP, 1/2 BSP, or M20×1.5 female (hand-tight, auto-locking) |
| Recognition | |
| Camera | 50 MP HD, auto zoom and focus |
| Accuracy | Better than 0.1 division (standard single-pointer, single-scale gauges) |
| Engine | AMetis AI / machine-learning recognition; dual-scale inner/outer support |
| Gauge types | Radial and axial; Flip-Extend Sync for small-diameter axial gauges |
| Asset ID | Built-in barcode and QR scanner |
| Mechanical | |
| Tapper | Built-in electronic tapper; adjustable frequency and interval |
| System | |
| Automation | Fully automated with an Additel pressure controller and ACal software |
| Cascade | Up to 10 units daisy-chained (ADT100-710-KIT required for each additional unit) |
| Display | |
| Screen | 5-inch TFT touchscreen |
| Communication | |
| Interfaces | WLAN and Ethernet |
| Power | |
| Supply | 100–240 VAC, 50/60 Hz, 65 W max |
| Enclosure | |
| Size / weight | 7.48 × 10.82 × 15.43 in (190 × 275 × 392 mm); 8.5 kg |
| Environment | |
| Temperature / humidity | Working 0 to 40°C; storage −20 to 70°C; <90% RH non-condensing |
| Compliance | |
| Marks | CE |
| General | |
| Warranty | 1 year |
| Starting price | From $10,674 |
Videos
Documents
Ordering information
5 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| ADT710-B | Automatic Gauge Reader, inteligent camera, 1/4BSP F quick connector | $10,674.00 | |
| ADT710-B2 | Automatic Gauge Reader, inteligent camera, 1/2BSP F quick connector | $10,674.00 | |
| ADT710-M | Automatic Gauge Reader, inteligent camera, M20x1.5 F quick connector | $10,674.00 | |
| ADT710-N | Automatic Gauge Reader, inteligent camera, 1/4 NPT F quick connector | $10,674.00 | |
| ADT710-N2 | Automatic Gauge Reader, inteligent camera, 1/2 NPT F quick connector | $10,674.00 |
