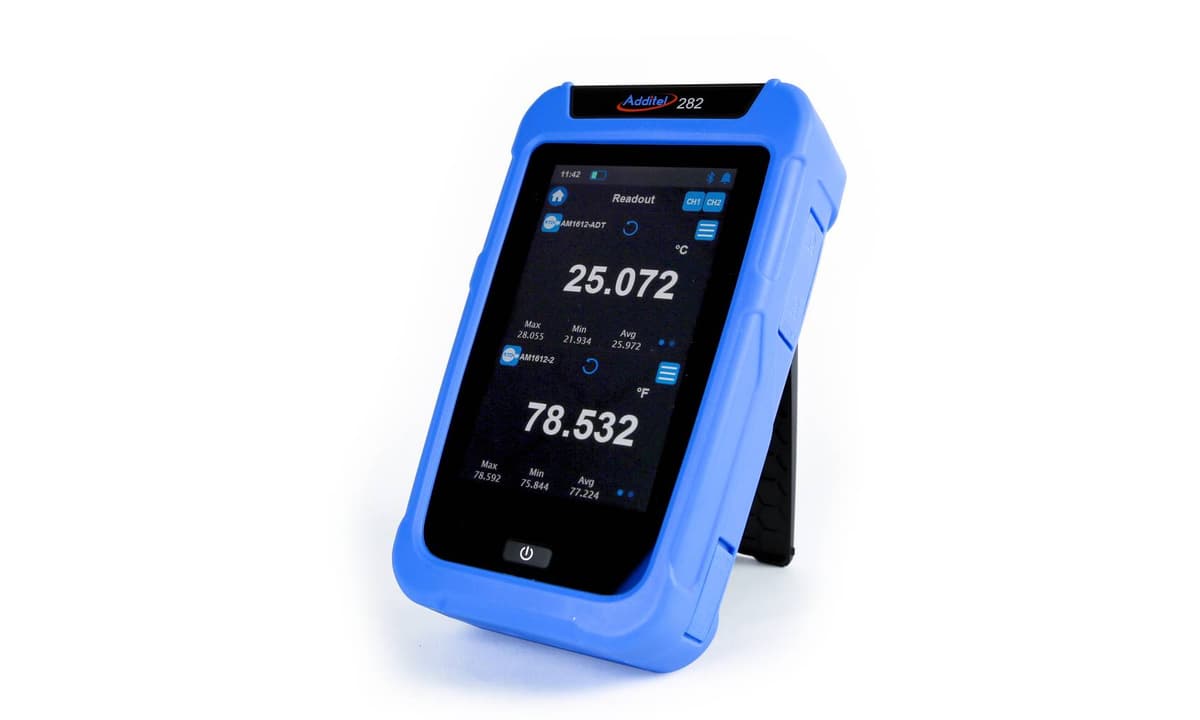

Additel 282 Dual Channel Handheld Reference Thermometer Readout
Handheld dual-channel reference thermometer readout for RTD and thermocouple work — 0.006 °C accuracy at 0 °C, smart Lemo connectors, IP67. $3,459.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Additel 282 is a handheld dual-channel reference thermometer readout with laboratory-grade accuracy in a field package. Readout-only accuracy is 0.006 °C at 0 °C (as good as 0.005 °C at other points), with 1 mK temperature resolution and 0.1 mΩ / 0.1 µV electrical resolution.
Two analog channels accept 6-pin smart Lemo RTD/SPRT probes and mini-TC thermocouple inputs at the same time. Show CH1, CH2, or T1−T2 differential. Ratio measurement and current reversal cancel A/D offset and EMF effects. A probe-lock feature pairs a smart probe to the channel it was system-calibrated on so coefficients stay with the measurement.
The 5-inch capacitive touchscreen, built-in ITS-90 / CVD / industrial RTD and thermocouple library, 8 GB datalogging, isolated USB-C, and Bluetooth (Additel Mobile Link, up to 20 m) cover bath, dry-well, and furnace stability and uniformity work. IP67, 1 m drop tested, rechargeable Li-ion (typically 16 hours). ISO 17025 accredited calibration with data is included. $3,459.
Specifications
| Accuracy | |
| Readout accuracy at 0 °C | 0.006 °C |
| Temperature resolution | 1 mK (0.001 °C) |
| Electrical resolution | 0.1 mΩ / 0.1 µV |
| Inputs | |
| Channels | Dual analog (CH1, CH2) |
| RTD / SPRT | 6-pin smart Lemo, 4-wire |
| Thermocouple | Mini-TC with internal, external, or manual CJC |
| Display modes | Single, dual, or differential (T1−T2) |
| Measurement | |
| RTD range | −200 °C to 850 °C |
| Thermocouple range | −270 °C to 1800 °C |
| RTD types | ITS-90, CVD, ohms, 13 industrial RTDs, custom |
| TC types | 15 industrial types plus standard TC and mV |
| General | |
| Display | 5.0 in, 480 × 800 TFT capacitive touchscreen |
| Size | 6.97 × 4.13 × 2.04 in (177 × 105 × 52 mm) |
| Weight | 1.5 lb (0.65 kg) |
| Battery | 6600 mAh Li-ion, typically 16 hours |
| Ingress / durability | IP67, 1 m drop test |
| Communication | Isolated USB-C and Bluetooth BLE |
| Datalogging | Multi-parameter, trend curves, up to 8 GB |
| Calibration | ISO 17025 accredited calibration with data included |
| Warranty | 1 year |
| Price | $3,459 |
