Additel

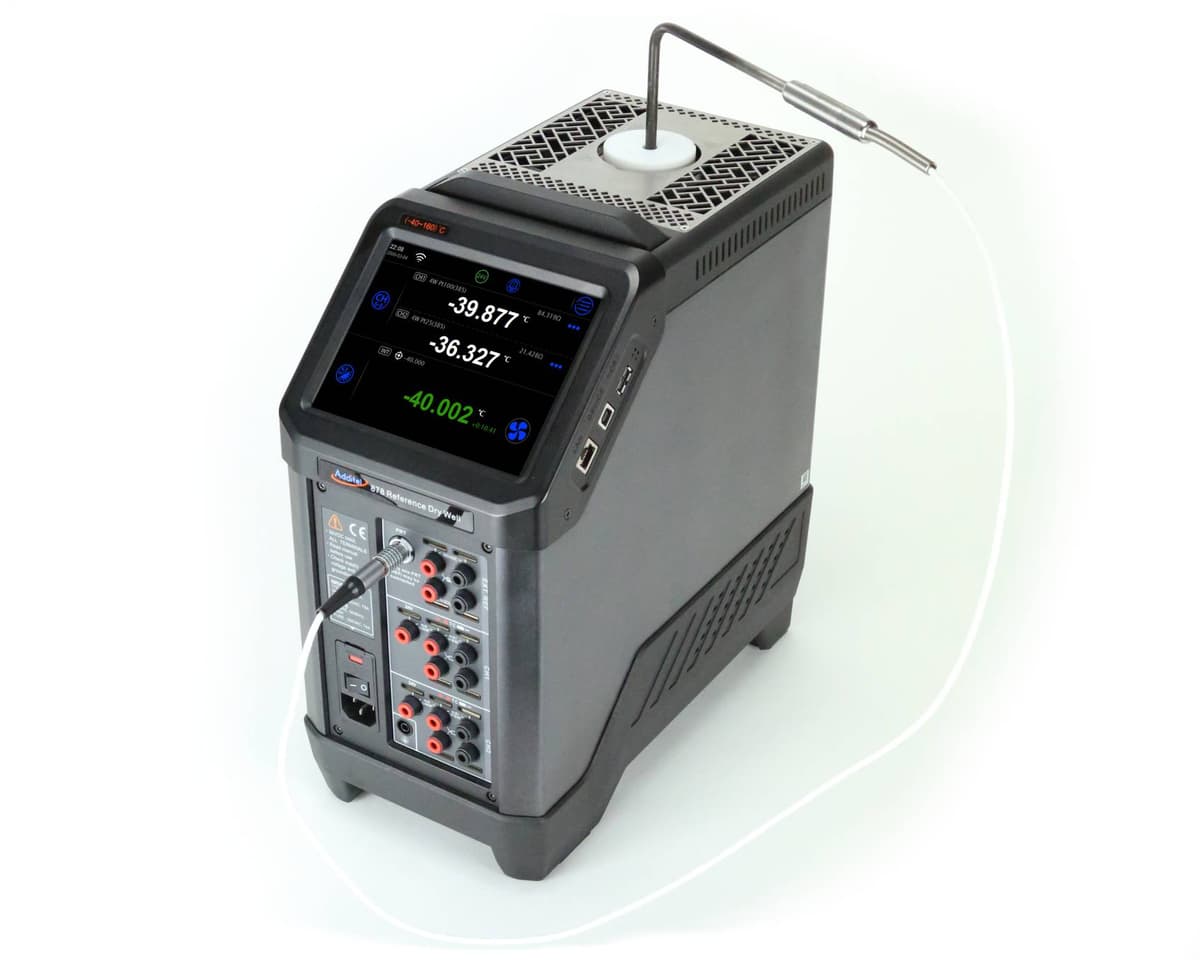

Additel 878 Reference Dry Well and Thermocouple Calibration Furnace
Model ADT878
Reference-grade dry wells (−40 to 700 °C) and 878-1210 thermocouple furnace (100 to 1210 °C, ±1.5 °C). Optional Process Calibrator. ISO 17025. From $12,127.
From $12,127.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Additel 878-1210 is the reference-grade sibling of the ADT875-1210 thermocouple calibration furnace. Same 100 °C to 1210 °C range and Advanced Adaptive Control (wind-tunnel plus 3-zone), but tighter display accuracy — ±1.5 °C at 1210 °C versus ±2.0 °C on the 875 — plus tighter axial and radial uniformity. Published 878-1210 specs require XR-style metallic inserts (138 mm / 5.43 in, 24.8 mm OD). Portable: 23.4 lb (10.6 kg), 6.5-inch color touchscreen.
The optional Process Calibrator (PC) option adds documenting electronics. On the 878-1210 furnace that is a reference-grade thermocouple channel plus 4 UUT channels (Quick-Push connectors), mA / voltage / switch test and 24 V on CH1–CH2, HART, as-found / as-left tasks, snapshot, data logging, external-probe control, and self-calibration. On the 878 Series dry wells the PC option is a reference PRT input plus two UUT channels (RTD / TC / mA / voltage / switch), a full HART communicator, and the same documenting and self-cal features.
The same ADT878 family also includes the 878 Series reference dry wells — 878-160 (−40 to 160 °C, ±0.1 °C), 878-425 (33 to 425 °C, ±0.2 °C), and 878-700 (33 to 700 °C, up to ±0.25 °C) — with dual-zone control, 0.001 °C resolution, optional automatic TPW realization (878-160 + ADT878-TPW kit), and automatic PRT annealing (878-700). Every unit includes ISO 17025 accredited calibration with data. From $12,127 (ADT878-425-NO dry well); 878-1210 furnace from $16,121; ADT878-TPW kit accessory $1,747.
Specifications
| 878-1210 Furnace | |
| Temperature range | 100 °C to 1210 °C |
| Display accuracy | ±1.0 °C @ 100/300/600 °C; ±1.2 °C @ 900 °C; ±1.5 °C @ 1210 °C (XR insert required) |
| Stability | ±0.1 °C |
| Axial uniformity (20 mm) | ±0.4 °C @ 100 °C to ±1.0 °C @ 600–1210 °C |
| Radial uniformity | ±0.2 °C @ 100 °C to ±0.8 °C @ 1210 °C |
| Loading effect | ±0.5 °C |
| Heating / cooling | 50 min 23→1210 °C; 55 min 1210→300 °C; 55 min 300→50 °C |
| Inserts | Metallic interchangeable XR 138 mm (5.43 in), OD 24.8 mm; XR required for published 878 specs |
| vs ADT875 | |
| ADT878-1210 (this product) | Reference furnace; ±1.5 °C display accuracy at 1210 °C; tighter uniformity; XR inserts required |
| ADT875-1210 (separate model) | Standard furnace; ±2.0 °C display accuracy at 1210 °C |
| 878 Series dry wells | |
| 878-160 | −40 °C to 160 °C; display accuracy ±0.1 °C; stability ±0.005 °C; optional automatic TPW realization |
| 878-425 | 33 °C to 425 °C; display accuracy ±0.2 °C; stability ±0.010 to ±0.020 °C |
| 878-700 | 33 °C to 700 °C; display accuracy ±0.20 °C @ 33/425 °C, ±0.25 °C @ 660 °C; automatic PRT annealing |
| Resolution / display | 0.001 °C; 6.5 in color touchscreen; °C / °F / K |
| Immersion / insert OD | 160 mm / 31.9 mm OD (878-160); 193 mm / 30.8 mm OD (878-425/700) |
| Process Calibrator (PC) | |
| 878-1210 furnace PC | Reference TC + 4 UUT channels (Quick-Push); mA / voltage / switch / 24 V on CH1–CH2; HART |
| 878 dry well PC | Reference PRT input + 2 UUT channels (RTD / TC / mA / voltage / switch); full HART communicator |
| Documenting / self-cal | Up to 1,000 tasks; as-found / as-left; snapshot; auto step and ramp; external-probe control; self-calibration |
| ADT878-TPW kit | |
| Use | Automatic triple-point-of-water realization with 878-160; uncertainty <0.0005 °C (shake method) |
| Cell | Borosilicate; 115 mm × 8 mm immersion; realization ~20 min; working time ~2 hours |
| General | |
| Size / weight (878-1210) | 13.6 × 6.7 × 13.0 in (345 × 170 × 330 mm); 23.4 lb (10.6 kg) |
| Size / weight (dry wells) | 6.69 × 13.58 × 13.0 in (170 × 345 × 330 mm); 24.7 lb (878-160) / 21.4 lb (878-425/700) |
| Power | 90–254 VAC, 45–65 Hz; 580 W (878-1210 and 878-160); 1400 W (878-425/700) |
| Communication | USB A, USB B, RJ45, Wi-Fi, Bluetooth |
| Calibration | ISO 17025 accredited calibration with data included |
| Warranty | 1 year |
| Starting price | From $12,127 (ADT878-425-NO dry well); 878-1210 furnace from $16,121; ADT878-TPW kit accessory $1,747 |
Videos
ADT878 Reference Dry Well Calibrators — Features and Overview
Additel 875-1210 and 878-1210 Thermocouple Calibration Furnace — Demo
ADT878-700 Automated Annealing Feature
ADT878 Triple Point of Water — How To
Additel Short Probe Kit
Documents
- datasheetAdditel 878 Reference Dry Well Calibrator Datasheet
- datasheetAdditel 875-1210 and 878-1210 Thermocouple Calibration Furnace Datasheet
- manualAdditel 878 Reference Dry Well Calibrator User Manual
- manualAdditel 875-1210 and 878-1210 Thermocouple Calibration Furnace User Manual
- datasheetAdditel 878-TPW-KIT Triple Point of Water Realization Kit Datasheet
Build your part number
Configure your ADT878
Pick your options and we'll build the exact part number - 125 configurations match so far.
Select 5 more options to get your part number and price.
Ordering information
125 ordering models available - showing 100, use the filter to narrow down.
| Model | Description | List Price | |
|---|---|---|---|
| ADT878-1210-AR-110V | Thermocouple Calibration Reference Furnace, 100°C to 1210°C, Insert AR, 110V | $17,476.00 | |
| ADT878-1210-AR-220V | Thermocouple Calibration Reference Furnace, 100°C to 1210°C, Insert AR, 220V | $17,476.00 | |
| ADT878-1210-DR-110V | Thermocouple Calibration Reference Furnace, 100°C to 1210°C, Insert DR, 110V | $17,476.00 | |
| ADT878-1210-DR-220V | Thermocouple Calibration Reference Furnace, 100°C to 1210°C, Insert DR, 220V | $17,476.00 | |
| ADT878-1210-HR-110V | Thermocouple Calibration Reference Furnace, 100°C to 1210°C, Insert HR, 110V | $17,476.00 | |
| ADT878-1210-HR-220V | Thermocouple Calibration Reference Furnace, 100°C to 1210°C, Insert HR, 220V | $17,476.00 | |
| ADT878-1210-NO-110V | Thermocouple Calibration Reference Furnace, 100°C to 1210°C, No Insert, 110V | $16,121.00 | |
| ADT878-1210-NO-220V | Thermocouple Calibration Reference Furnace, 100°C to 1210°C, No Insert, 220V | $16,121.00 | |
| ADT878-160-A-110V | Reference Dry Well Calibrator, -40°C to 160°C, Insert A, 110V | $16,255.00 | |
| ADT878-160-A-220V | Reference Dry Well Calibrator, -40°C to 160°C, Insert A, 220V | $16,255.00 | |
| ADT878-160-B-110V | Reference Dry Well Calibrator, -40°C to 160°C, Insert B, 110V | $16,255.00 | |
| ADT878-160-B-220V | Reference Dry Well Calibrator, -40°C to 160°C, Insert B, 220V | $16,255.00 | |
| ADT878-160-C-110V | Reference Dry Well Calibrator, -40°C to 160°C, Insert C, 110V | $16,255.00 | |
| ADT878-160-C-220V | Reference Dry Well Calibrator, -40°C to 160°C, Insert C, 220V | $16,255.00 | |
| ADT878-160-D-110V | Reference Dry Well Calibrator, -40°C to 160°C, Insert D, 110V | $16,255.00 | |
| ADT878-160-D-220V | Reference Dry Well Calibrator, -40°C to 160°C, Insert D, 220V | $16,255.00 | |
| ADT878-160-E-110V | Reference Dry Well Calibrator, -40°C to 160°C, Insert E, 110V | $16,255.00 | |
| ADT878-160-E-220V | Reference Dry Well Calibrator, -40°C to 160°C, Insert E, 220V | $16,255.00 | |
| ADT878-160-F-110V | Reference Dry Well Calibrator, -40°C to 160°C, Insert F, 110V | $16,255.00 | |
| ADT878-160-F-220V | Reference Dry Well Calibrator, -40°C to 160°C, Insert F, 220V | $16,255.00 | |
| ADT878-160-G-110V | Reference Dry Well Calibrator, -40°C to 160°C, Insert G, 110V | $16,255.00 | |
| ADT878-160-G-220V | Reference Dry Well Calibrator, -40°C to 160°C, Insert G, 220V | $16,255.00 | |
| ADT878-160-H-110V | Reference Dry Well Calibrator, -40°C to 160°C, Insert H, 110V | $16,255.00 | |
| ADT878-160-H-220V | Reference Dry Well Calibrator, -40°C to 160°C, Insert H, 220V | $16,255.00 | |
| ADT878-160-NO-110V | Reference Dry Well Calibrator, -40°C to 160°C, No Insert, 110V | $15,693.00 | |
| ADT878-160-NO-220V | Reference Dry Well Calibrator, -40°C to 160°C, No Insert, 220V | $15,693.00 | |
| ADT878-425-A-110V | Reference Dry Well Calibrator, 33°C to 425°C, Insert A, 110V | $13,118.00 | |
| ADT878-425-A-220V | Reference Dry Well Calibrator, 33°C to 425°C, Insert A, 220V | $13,118.00 | |
| ADT878-425-B-110V | Reference Dry Well Calibrator, 33°C to 425°C, Insert B, 110V | $13,118.00 | |
| ADT878-425-B-220V | Reference Dry Well Calibrator, 33°C to 425°C, Insert B, 220V | $13,118.00 | |
| ADT878-425-C-110V | Reference Dry Well Calibrator, 33°C to 425°C, Insert C, 110V | $13,118.00 | |
| ADT878-425-C-220V | Reference Dry Well Calibrator, 33°C to 425°C, Insert C, 220V | $13,118.00 | |
| ADT878-425-D-110V | Reference Dry Well Calibrator, 33°C to 425°C, Insert D, 110V | $13,118.00 | |
| ADT878-425-D-220V | Reference Dry Well Calibrator, 33°C to 425°C, Insert D, 220V | $13,118.00 | |
| ADT878-425-E-110V | Reference Dry Well Calibrator, 33°C to 425°C, Insert E, 110V | $13,118.00 | |
| ADT878-425-E-220V | Reference Dry Well Calibrator, 33°C to 425°C, Insert E, 220V | $13,118.00 | |
| ADT878-425-F-110V | Reference Dry Well Calibrator, 33°C to 425°C, Insert F, 110V | $13,118.00 | |
| ADT878-425-F-220V | Reference Dry Well Calibrator, 33°C to 425°C, Insert F, 220V | $13,118.00 | |
| ADT878-425-G-110V | Reference Dry Well Calibrator, 33°C to 425°C, Insert G, 110V | $13,118.00 | |
| ADT878-425-G-220V | Reference Dry Well Calibrator, 33°C to 425°C, Insert G, 220V | $13,118.00 | |
| ADT878-425-H-110V | Reference Dry Well Calibrator, 33°C to 425°C, Insert H, 110V | $13,118.00 | |
| ADT878-425-H-220V | Reference Dry Well Calibrator, 33°C to 425°C, Insert H, 220V | $13,118.00 | |
| ADT878-425-NO-110V | Reference Dry Well Calibrator, 33°C to 425°C, No Insert, 110V | $12,127.00 | |
| ADT878-425-NO-220V | Reference Dry Well Calibrator, 33°C to 425°C, No Insert, 220V | $12,127.00 | |
| ADT878-700-A-110V | Reference Dry Well Calibrator, 33°C to 700°C, Insert A, 110V | $16,968.00 | |
| ADT878-700-A-220V | Reference Dry Well Calibrator, 33°C to 700°C, Insert A, 220V | $16,968.00 | |
| ADT878-700-B-110V | Reference Dry Well Calibrator, 33°C to 700°C, Insert B, 110V | $16,968.00 | |
| ADT878-700-B-220V | Reference Dry Well Calibrator, 33°C to 700°C, Insert B, 220V | $16,968.00 | |
| ADT878-700-C-110V | Reference Dry Well Calibrator, 33°C to 700°C, Insert C, 110V | $16,968.00 | |
| ADT878-700-C-220V | Reference Dry Well Calibrator, 33°C to 700°C, Insert C, 220V | $16,968.00 | |
| ADT878-700-D-110V | Reference Dry Well Calibrator, 33°C to 700°C, Insert D, 110V | $16,968.00 | |
| ADT878-700-D-220V | Reference Dry Well Calibrator, 33°C to 700°C, Insert D, 220V | $16,968.00 | |
| ADT878-700-E-110V | Reference Dry Well Calibrator, 33°C to 700°C, Insert E, 110V | $16,968.00 | |
| ADT878-700-E-220V | Reference Dry Well Calibrator, 33°C to 700°C, Insert E, 220V | $16,968.00 | |
| ADT878-700-F-110V | Reference Dry Well Calibrator, 33°C to 700°C, Insert F, 110V | $16,968.00 | |
| ADT878-700-F-220V | Reference Dry Well Calibrator, 33°C to 700°C, Insert F, 220V | $16,968.00 | |
| ADT878-700-G-110V | Reference Dry Well Calibrator, 33°C to 700°C, Insert G, 110V | $16,968.00 | |
| ADT878-700-G-220V | Reference Dry Well Calibrator, 33°C to 700°C, Insert G, 220V | $16,968.00 | |
| ADT878-700-H-110V | Reference Dry Well Calibrator, 33°C to 700°C, Insert H, 110V | $16,968.00 | |
| ADT878-700-H-220V | Reference Dry Well Calibrator, 33°C to 700°C, Insert H, 220V | $16,968.00 | |
| ADT878-700-NO-110V | Reference Dry Well Calibrator, 33°C to 700°C, No Insert, 110V | $15,978.00 | |
| ADT878-700-NO-220V | Reference Dry Well Calibrator, 33°C to 700°C, No Insert, 220V | $15,978.00 | |
| ADT878PC-1210-AR-110V | Thermocouple Calibration Reference Furnace, 100°C to 1210°C, Insert AR, 110V, with Process Calibrator Option | $21,042.00 | |
| ADT878PC-1210-AR-220V | Thermocouple Calibration Reference Furnace, 100°C to 1210°C, Insert AR, 220V, with Process Calibrator Option | $21,042.00 | |
| ADT878PC-1210-DR-110V | Thermocouple Calibration Reference Furnace, 100°C to 1210°C, Insert DR, 110V, with Process Calibrator Option | $21,042.00 | |
| ADT878PC-1210-DR-220V | Thermocouple Calibration Reference Furnace, 100°C to 1210°C, Insert DR, 220V, with Process Calibrator Option | $21,042.00 | |
| ADT878PC-1210-HR-110V | Thermocouple Calibration Reference Furnace, 100°C to 1210°C, Insert HR, 110V, with Process Calibrator Option | $21,042.00 | |
| ADT878PC-1210-HR-220V | Thermocouple Calibration Reference Furnace, 100°C to 1210°C, Insert HR, 220V, with Process Calibrator Option | $21,042.00 | |
| ADT878PC-1210-NO-110V | Thermocouple Calibration Reference Furnace, 100°C to 1210°C, No Insert, 110V, with Process Calibrator Option | $19,686.00 | |
| ADT878PC-1210-NO-220V | Thermocouple Calibration Reference Furnace, 100°C to 1210°C, No Insert, 220V, with Process Calibrator Option | $19,686.00 | |
| ADT878PC-160-A-110V | Reference Dry Well Calibrator, -40°C to 160°C, Insert A, 110V, with Process Calibrator Option | $19,251.00 | |
| ADT878PC-160-A-220V | Reference Dry Well Calibrator, -40°C to 160°C, Insert A, 220V, with Process Calibrator Option | $19,251.00 | |
| ADT878PC-160-B-110V | Reference Dry Well Calibrator, -40°C to 160°C, Insert B, 110V, with Process Calibrator Option | $19,251.00 | |
| ADT878PC-160-B-220V | Reference Dry Well Calibrator, -40°C to 160°C, Insert B, 220V, with Process Calibrator Option | $19,251.00 | |
| ADT878PC-160-C-110V | Reference Dry Well Calibrator, -40°C to 160°C, Insert C, 110V, with Process Calibrator Option | $19,251.00 | |
| ADT878PC-160-C-220V | Reference Dry Well Calibrator, -40°C to 160°C, Insert C, 220V, with Process Calibrator Option | $19,251.00 | |
| ADT878PC-160-D-110V | Reference Dry Well Calibrator, -40°C to 160°C, Insert D, 110V, with Process Calibrator Option | $19,251.00 | |
| ADT878PC-160-D-220V | Reference Dry Well Calibrator, -40°C to 160°C, Insert D, 220V, with Process Calibrator Option | $19,251.00 | |
| ADT878PC-160-E-110V | Reference Dry Well Calibrator, -40°C to 160°C, Insert E, 110V, with Process Calibrator Option | $19,251.00 | |
| ADT878PC-160-E-220V | Reference Dry Well Calibrator, -40°C to 160°C, Insert E, 220V, with Process Calibrator Option | $19,251.00 | |
| ADT878PC-160-F-110V | Reference Dry Well Calibrator, -40°C to 160°C, Insert F, 110V, with Process Calibrator Option | $19,251.00 | |
| ADT878PC-160-F-220V | Reference Dry Well Calibrator, -40°C to 160°C, Insert F, 220V, with Process Calibrator Option | $19,251.00 | |
| ADT878PC-160-G-110V | Reference Dry Well Calibrator, -40°C to 160°C, Insert G, 110V, with Process Calibrator Option | $19,251.00 | |
| ADT878PC-160-G-220V | Reference Dry Well Calibrator, -40°C to 160°C, Insert G, 220V, with Process Calibrator Option | $19,251.00 | |
| ADT878PC-160-H-110V | Reference Dry Well Calibrator, -40°C to 160°C, Insert H, 110V, with Process Calibrator Option | $19,251.00 | |
| ADT878PC-160-H-220V | Reference Dry Well Calibrator, -40°C to 160°C, Insert H, 220V, with Process Calibrator Option | $19,251.00 | |
| ADT878PC-160-NO-110V | Reference Dry Well Calibrator, -40°C to 160°C, No Insert, 110V, with Process Calibrator Option | $18,687.00 | |
| ADT878PC-160-NO-220V | Reference Dry Well Calibrator, -40°C to 160°C, No Insert, 220V, with Process Calibrator Option | $18,687.00 | |
| ADT878PC-425-A-110V | Reference Dry Well Calibrator, 33°C to 425°C, Insert A, 110V, with Process Calibrator Option | $16,111.00 | |
| ADT878PC-425-A-220V | Reference Dry Well Calibrator, 33°C to 425°C, Insert A, 220V, with Process Calibrator Option | $16,111.00 | |
| ADT878PC-425-B-110V | Reference Dry Well Calibrator, 33°C to 425°C, Insert B, 110V, with Process Calibrator Option | $16,111.00 | |
| ADT878PC-425-B-220V | Reference Dry Well Calibrator, 33°C to 425°C, Insert B, 220V, with Process Calibrator Option | $16,111.00 | |
| ADT878PC-425-C-110V | Reference Dry Well Calibrator, 33°C to 425°C, Insert C, 110V, with Process Calibrator Option | $16,111.00 | |
| ADT878PC-425-C-220V | Reference Dry Well Calibrator, 33°C to 425°C, Insert C, 220V, with Process Calibrator Option | $16,111.00 | |
| ADT878PC-425-D-110V | Reference Dry Well Calibrator, 33°C to 425°C, Insert D, 110V, with Process Calibrator Option | $16,111.00 | |
| ADT878PC-425-D-220V | Reference Dry Well Calibrator, 33°C to 425°C, Insert D, 220V, with Process Calibrator Option | $16,111.00 | |
| ADT878PC-425-E-110V | Reference Dry Well Calibrator, 33°C to 425°C, Insert E, 110V, with Process Calibrator Option | $16,111.00 | |
| ADT878PC-425-E-220V | Reference Dry Well Calibrator, 33°C to 425°C, Insert E, 220V, with Process Calibrator Option | $16,111.00 | |
| ADT878PC-425-F-110V | Reference Dry Well Calibrator, 33°C to 425°C, Insert F, 110V, with Process Calibrator Option | $16,111.00 | |
| ADT878PC-425-F-220V | Reference Dry Well Calibrator, 33°C to 425°C, Insert F, 220V, with Process Calibrator Option | $16,111.00 |
