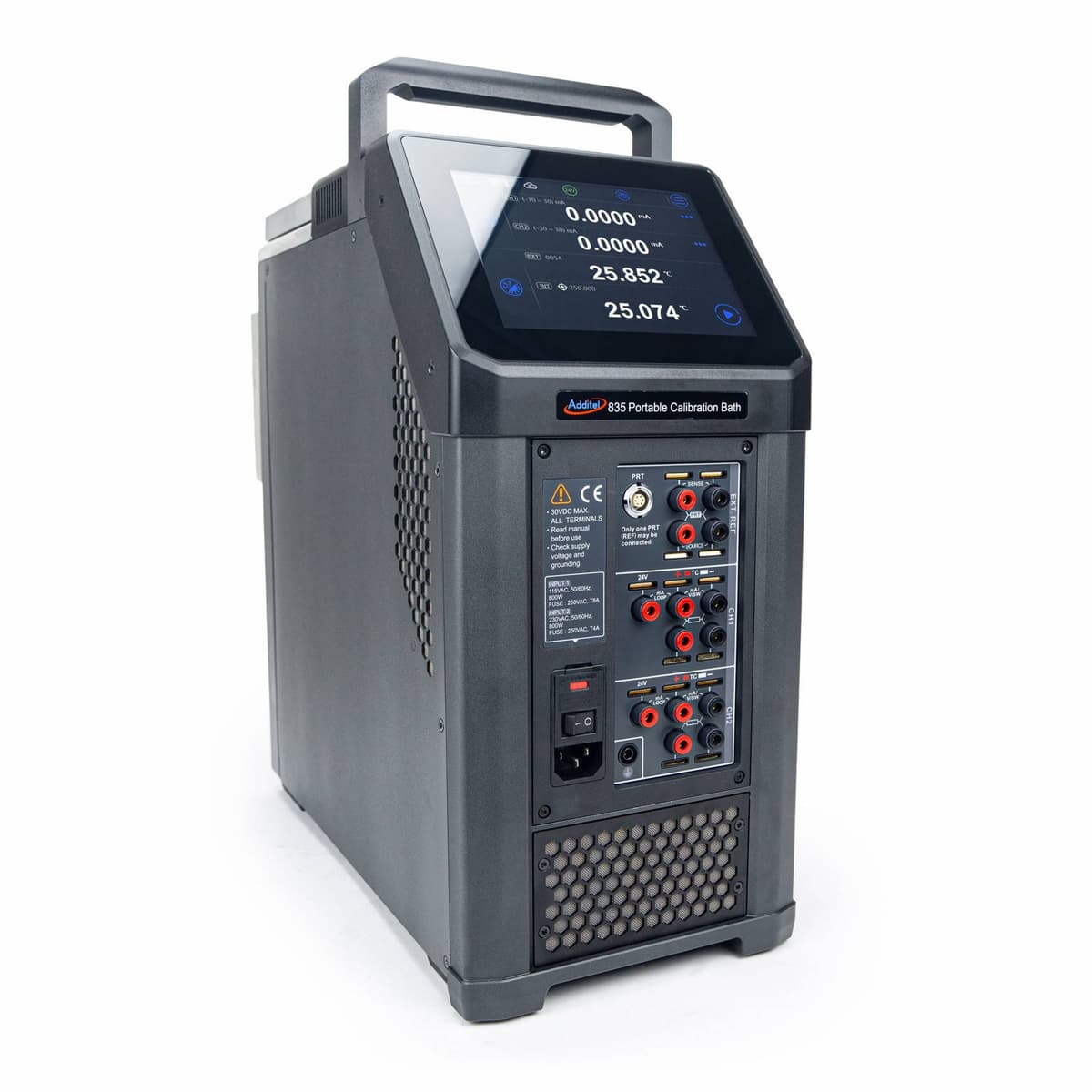

Additel 835 Portable Calibration Bath
Portable bath — liquid bath for sanitary and irregular sensors. 90 × 90 mm opening, −30 to 150 °C or 33 to 250 °C, ±0.1 °C display accuracy, dual-zone heating, optional 3-channel process calibrator (PC). ISO 17025. From $12,265.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Additel 835 is a portable liquid calibration bath with a 90 × 90 mm (3.54 × 3.54 in) opening and 155 mm maximum media depth. It combines bath-level stability and uniformity with dry-well portability, so sensors of almost any type, size, or shape — including sanitary flanges, ferrule nuts, and short probes — can be calibrated without a custom dry well. Two ranges: 835-150 (−30 to 150 °C) and 835-250 (33 to 250 °C). Display accuracy is ±0.1 °C on both models.
Advanced dual-zone heating puts an external heater near the vapor chamber for stable control and an immersed heater for fast response to field disturbances (power flicker, airflow, ambient swings). Variable-speed prediction and non-overshoot control keep the error band at ±0.1 °C through heat and cool. Stability is ±0.01 °C (835-150) / ±0.015 °C (835-250) over 10 minutes; typical time to stability is 10 minutes. The working zone is a φ75 mm circle, 15 mm above the bath bottom and 65 mm below the fluid level. Volume is 2.5 L max. The 90 × 90 mm tank can take up to four 50 mm sanitary sensors or up to forty 6.35 mm rod sensors in one batch.
The optional Process Calibrator (PC) adds a built-in three-channel high-precision calibrator: EXT.REF reference RTD plus CH1 / CH2 DUT channels with quick-push connectors. It combines thermometer, multimeter, 24 V loop, and HART communicator so you do not carry extra instruments. One-touch self-calibration of the internal reference, documenting tasks, snapshot, remote control (Bluetooth / Wi-Fi / LAN, point-to-point or cloud), and a 6.5-inch color touchscreen. Stainless tank, overflow box, drain, and sealed top cover. Every unit includes ISO 17025 accredited calibration with data. From $12,265 (835-250); 835-150 from $14,548; PC option from $14,465.
Specifications
| Temperature | |
| 835-150 range | −30 °C to 150 °C (at 23 °C ambient) |
| 835-250 range | 33 °C to 250 °C (at 23 °C ambient) |
| Display accuracy | ±0.1 °C (both models) |
| EXT REF accuracy | ±0.05 °C (with AM1730-12-ADT) |
| Stability (10 min) | ±0.01 °C (835-150); ±0.015 °C (835-250) |
| Uniformity | ±0.02 °C (835-150); ±0.03 °C ≤200 °C / ±0.04 °C >200 °C (835-250) |
| Repeatability | 0.04 °C internal reference; 0.01 °C external reference |
| Typical time to stability | 10 min |
| Bath | |
| Opening | 90 × 90 mm (3.54 × 3.54 in) |
| Working area | φ75 mm circular zone; 15 mm above bottom and 65 mm below fluid level; max media depth 155 mm |
| Volume | 2.5 L max |
| Recommended media | 10 cSt XIAMETER PMX-200 (835-150); 50 cSt XIAMETER PMX-200 (835-250) |
| Heating / cooling (835-150) | Heat 18 min −30→23 °C, 30 min 23→150 °C; cool 45 min 150→23 °C, 45 min 23→−25 °C, 55 min 23→−30 °C |
| Heating / cooling (835-250) | Heat 20 min 23→100 °C, 35 min 100→250 °C; cool 30 min 250→100 °C, 45 min 100→33 °C |
| Dual-zone heating | External heater at vapor chamber + immersed heater for field-disturbance rejection |
| Process Calibrator (PC) | |
| Channels | 3-channel: EXT.REF reference RTD + CH1 / CH2 DUT (quick-push connectors) |
| Functions | Thermometer, multimeter, 24 V loop, HART communicator (CH1), switch test, documenting, self-calibration |
| DUT support | RTD, thermocouple, temperature transmitter, HART transmitter, temperature switch |
| General | |
| Display | 6.5 in (165 mm) color touchscreen, 640 × 480; resolution to 0.001 °C; °C / °F / K |
| Size / weight | 7.5 × 16.2 × 15.2 in (191 × 412 × 387 mm); 835-150 35.27 lb (16 kg) non-PC / 35.94 lb (16.3 kg) PC; 835-250 30.86 lb (14 kg) non-PC / 31.53 lb (14.3 kg) PC |
| Power | 110 V: 100–120 V 50/60 Hz 8 A; 220 V: 200–230 V 50/60 Hz 4 A; 800 W max |
| Communication | USB-A, USB-B, LAN, Wi-Fi, Bluetooth; remote control point-to-point or cloud |
| Calibration | ISO 17025 accredited calibration with data included |
| Warranty | 1 year |
| Starting price | From $12,265 (835-250); 835-150 from $14,548; PC from $14,465 |
Videos
Documents
Build your part number
Configure your ADT835
Pick your options and we'll build the exact part number - 8 configurations match so far.
Select 3 more options to get your part number and price.
Ordering information
8 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| ADT835-150-110V | Portable Calibration Bath, -30°C to 150°C, 110V | $14,548.00 | |
| ADT835-150-220V | Portable Calibration Bath, -30°C to 150°C, 220V | $14,548.00 | |
| ADT835-250-110V | Portable Calibration Bath, 33°C to 250°C, 110V | $12,265.00 | |
| ADT835-250-220V | Portable Calibration Bath, 33°C to 250°C, 220V | $12,265.00 | |
| ADT835PC-150-110V | Portable Calibration Bath, -30°C to 150°C, 110V, with Process Calibrator Option | $16,748.00 | |
| ADT835PC-150-220V | Portable Calibration Bath, -30°C to 150°C, 220V, with Process Calibrator Option | $16,748.00 | |
| ADT835PC-250-110V | Portable Calibration Bath, 33°C to 250°C, 110V, with Process Calibrator Option | $14,465.00 | |
| ADT835PC-250-220V | Portable Calibration Bath, 33°C to 250°C, 220V, with Process Calibrator Option | $14,465.00 |
