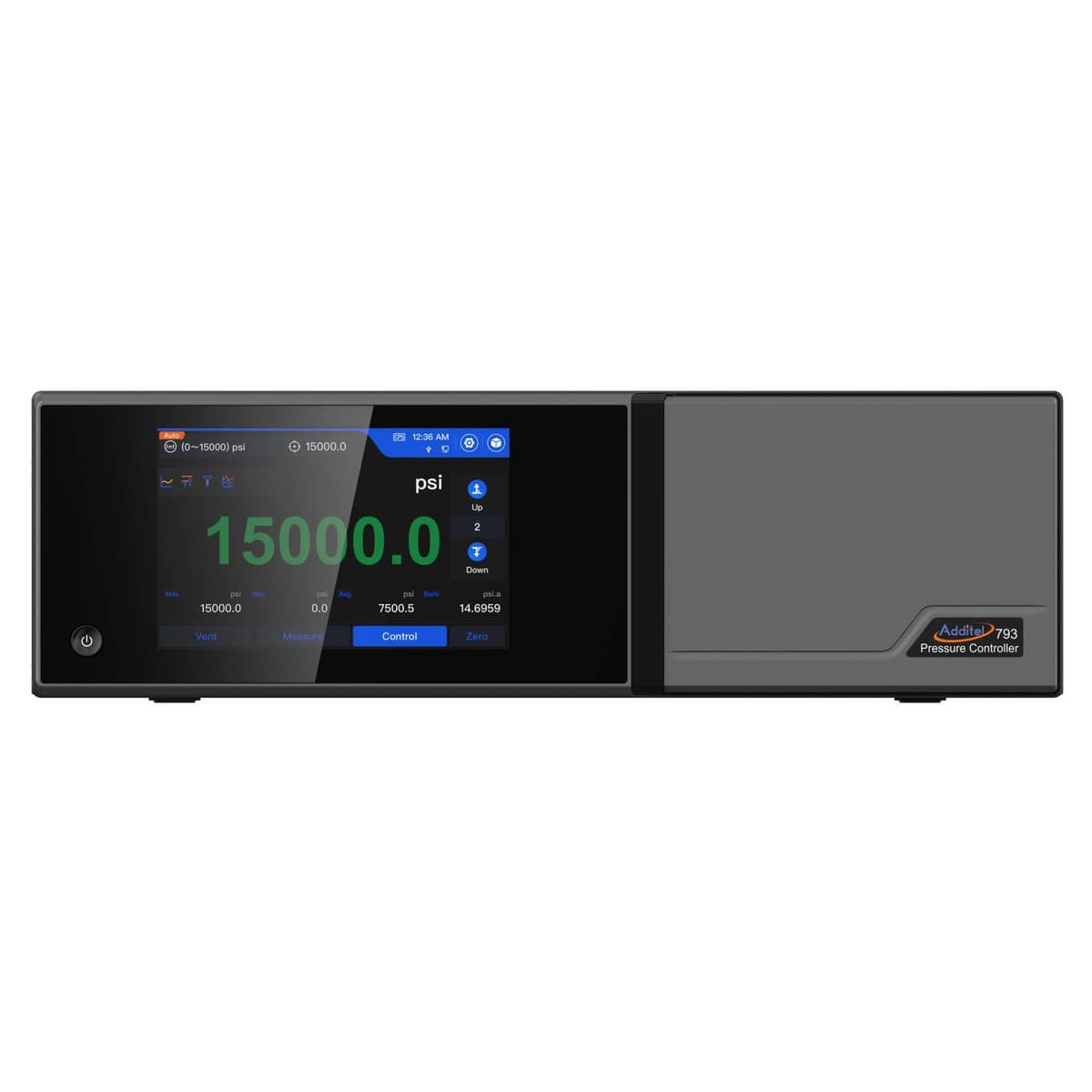

Additel 793 Pressure Controller

Name: Additel 793 Pressure Controller
Brand: Additel
SKU: ADT793
Availability: InStock

Model ADT793

Hydraulic benchtop controller/generator to 15,000 psi with a built-in pump — no external pressure source. Interchangeable ADT151 module, oil and water versions, 0.005% FS stability, optional CPS. ISO 17025 cert included. Base unit — modules sold separately. From $34,645.

From $34,645.00list price

Pick your exact configuration in the ordering table below to add it to your cart.

Same-day response on quotes. ISO/IEC 17025 accredited calibration available.

Overview

The Additel 793 is a hydraulic benchtop pressure controller/generator: a built-in pump generates and controls pressure to 15,000 psi (1,035 bar) without an external source. One interchangeable ADT151 dual-range module plus an optional barometer cover a wide high-pressure range. A 7 in color touchscreen and icon-driven interface run automated production, test, and calibration work.

Unlike the portable 762 (handheld hydraulic calibrator, generation to 15,000 psi) and the pneumatic 783 (benchtop controller, external air source, ranges to 6,000 psi), the 793 is the high-pressure hydraulic bench controller — typical 20% step in 30 seconds, control stability 0.005% FS (typically 0.003% FS). ADT151 modules swap in about 30 seconds; opening the cabin automatically vents pressure.

Two base units: ADT793 for oil (diethylhexyl sebacate) and ADT793W for water (deionized, distilled, or pure). Accuracies of 0.02% FS, 0.01% FS, and 0.01% RD. Dual-range modules from −14.5 to 3,000 psi up to 0 to 15,000 psi. Optional Contamination Prevention System (CPS) — included with the water version. Optional barometer switches gauge and absolute. Every unit includes an ISO 17025 accredited calibration certificate with data. Base controllers ship without pressure modules. From $34,645.

Specifications

Pressure
Control range	0 to 15,000 psi (1,035 bar)
Dual-range modules	−14.5 to 3,000 psi (−1 to 200 bar) through 0 to 15,000 psi (1,035 bar); five ranges: 15,000 / 10,000 / 6,000 / 5,000 / 3,000 psi
Accuracy	0.02% FS, 0.01% FS, and 0.01% RD (module-dependent)
Control stability	< 0.005% FS, typically 0.003% FS
Control speed	Typical 20% step in < 30 s; max overshoot < 1% FS
Internal modules	One removable ADT151 dual-range control module plus optional barometer bay; swap in ~30 seconds
Barometer	Optional ADT151-BP (±22 Pa) or BPH (±10 Pa); switch gauge / absolute
Supply	Built-in hydraulic pump — no external pressure source required
Media	Oil (diethylhexyl sebacate) on ADT793; deionized / distilled / pure water on ADT793W
Load / reservoir	Max 80 mL below 10,000 psi (50 mL recommended); 60 mL at 10,000–15,000 psi (35 mL recommended); 800 mL built-in reservoir; optional external reservoir
CPS	Optional ADT109-KIT Contamination Prevention System; included with ADT793W
Pressure port	1/4 BSP male
Electrical
Optional 9065 module	Plug-and-play USB; 7.5-digit V/mA measure and 24 V loop for transmitter work
I/O
Drive / alarm / switch	3-channel external drive valves (one fixed to CPS), 3 volt-free NO/NC relays, pressure switch test port
General
Form factor	Benchtop / 3U 19 in rack; 17.32 × 5.23 × 14.96 in (440 × 133 × 380 mm); chassis 20.7 kg
Display	7 in capacitive color touchscreen, 1280 × 800
Communications	LAN, USB, RS232; Wi-Fi / Bluetooth / GPIB via USB; SCPI emulation (PACE, Fluke, Mensor, WIKA)
Power	AC 100–240 V, 50/60 Hz; 150 W max
Ingress	IP20, indoor use
Calibration	ISO 17025 accredited calibration with data included
Warranty	1 year
What's included	Base controller only — ADT151 pressure modules sold separately
Starting price	From $34,645 (ADT793 oil); ADT793W water $39,265
