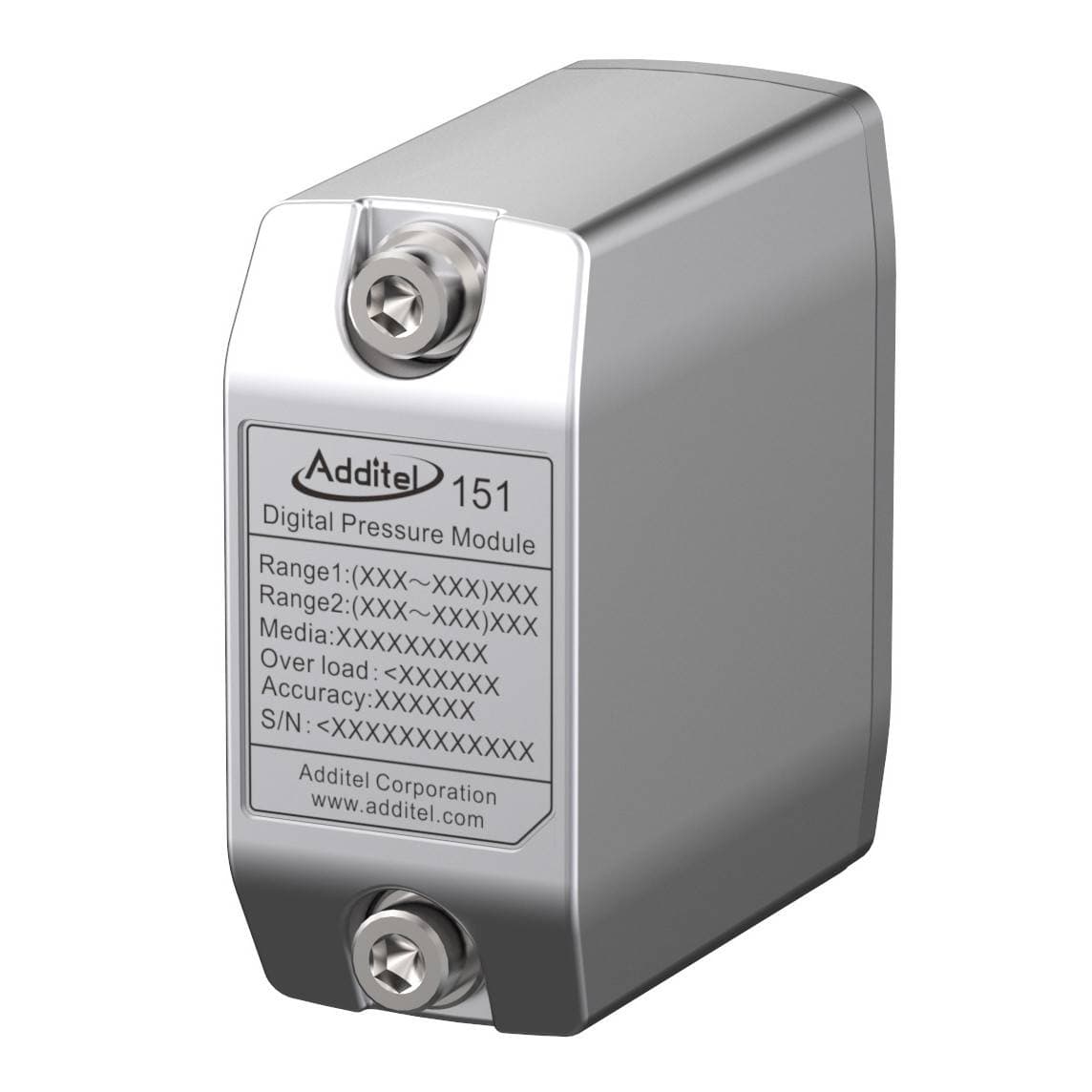

Additel 151 Digital Pressure Module
Model ADT151
Removable digital pressure modules for Additel 773, 783, and 793 controllers. Higher-pressure modules carry two calibrated ranges. Accuracies 0.02% FS, 0.01% FS, and 0.01% RD. ISO 17025 cert included. From $2,882.
From $2,882.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Additel 151 is the removable digital pressure module for Additel 773, 783, and 793 pressure controllers. Modules swap in about 30 seconds — opening the controller cabin vents pressure automatically — so one chassis covers changing workloads without a second instrument.
Higher-pressure ADT151 modules cover two separately calibrated ranges (for example a CP6K is −14.5 to 6,000 psi and −14.5 to 3,000 psi). Choose 0.02% FS, 0.01% FS, or 0.01% of reading. Compound, gauge, and differential ranges run from low inH2O on the 773 up to 15,000 psi (1,035 bar) on the 793. Optional barometers (ADT151-BP ±22 Pa, BPH ±10 Pa) let the controller switch gauge and absolute. Every module includes an ISO 17025 accredited calibration certificate with data. Optional 9054 calibration fixture and Additel Fit software for standalone adjustment.
Unlike the Additel 161 — a standalone intelligent module that plugs into Additel process calibrators and tablets — the 151 is the internal control/measurement module for the 7XX benchtop controllers. 83 configurations. From $2,882.
Specifications
| Pressure | |
| Host controllers | Swaps into Additel 773, 783, and 793 (range-dependent; see datasheet compatibility table) |
| Pressure types | Compound (CP), gauge (GP), differential (DP), plus optional barometer (BP / BPH) |
| Maximum range | To 15,000 psi (1,035 bar) on GP15K / GP15KM for ADT793 |
| Dual ranges | Higher-pressure modules include two separately calibrated ranges (e.g. CP6K: −14.5 to 6,000 psi and −14.5 to 3,000 psi) |
| Accuracy | 0.02% FS (02), 0.01% FS (01), or 0.01% of reading (01RD); 0.05% FS on DP1 / DP2 / DP5 |
| Precision (typical FS) | 0.007% FS (0.02% accuracy class) or 0.004% FS (0.01% accuracy class); 01RD is 0.008% rdg or 0.004% FS, whichever is greater |
| Temperature compensation | Fully temperature-compensated accuracy, valid −10 °C to 50 °C (14 °F to 122 °F) |
| Barometer | Optional ADT151-BP ±22 Pa or BPH ±10 Pa (60–110 kPa); switches gauge / absolute on 773 / 783 / 793 |
| Media | Gas and liquid on CP / GP modules; gas on DP modules |
| Swap time | Install or replace in about 30 seconds; opening the controller cabin automatically vents pressure |
| General | |
| Form factor | 30 × 80 × 91 mm (1.18 × 3.15 × 3.58 in); 0.5 kg (1.1 lb); aluminum enclosure |
| External connection | 6 mm (O-ring 3×1.5-NBR70) when used with the optional 9054 calibration fixture |
| Operating environment | −10 °C to 50 °C; storage −30 °C to 70 °C; 10–95% RH non-condensing |
| Calibration | ISO 17025 accredited calibration with data included; annual cycle recommended (180 days on DP1 / DP2 / DP5 / DP10 / DP20) |
| Optional accessory | 9054 calibration fixture (adapter base, RS232/power cable, 9 V adapter, Additel Fit software) |
| Warranty | 1 year |
| Contrast | ADT161 is a standalone intelligent module for Additel process calibrators and tablets — not a 7XX control module |
| Ordering models | 83 configurations (0.02% FS, 0.01% FS, 0.01% RD, 0.05% FS DP, BP / BPH) |
| Starting price | From $2,882 |
Documents
Build your part number
Configure your ADT151
Pick your options and we'll build the exact part number - 83 configurations match so far.
Select 3 more options to get your part number and price.
Ordering information
83 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| ADT151-01-CP10 | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: -10 to 10 psi (-0.7 to 0.7 bar), range 2: -5 to 5 psi (-0.35 to 0.35 bar) | $4,945.00 | |
| ADT151-01-CP100 | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: -14.5 to 100 psi (-1 to 7 bar), range 2: -14.5 to 50 psi (-1 to 3.5 bar) | $4,945.00 | |
| ADT151-01-CP15 | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: -14.5 to 15 psi (-1 to 1 bar), range 2: -10 to 10 psi (-0.7 to 0.7 bar) | $4,945.00 | |
| ADT151-01-CP150 | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: -14.5 to 150 psi (-1 to 10 bar), range 2: -14.5 to 60 psi (-1 to 4 bar) | $4,945.00 | |
| ADT151-01-CP1K | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: -14.5 to 1000 psi (-1 to 70 bar), range 2: -14.5 to 500 psi (-1 to 35 bar) | $4,945.00 | |
| ADT151-01-CP2K | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: -14.5 to 2000 psi (-1 to 140 bar), range 2: -14.5 to 1000 psi (-1 to 70 bar) | $4,945.00 | |
| ADT151-01-CP30 | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: -14.5 to 30 psi (-1 to 2 bar), range 2: -14.5 to 20 psi (-1 to 1.4 bar) | $4,945.00 | |
| ADT151-01-CP300 | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: -14.5 to 300 psi (-1 to 20 bar), range 2: -14.5 to 200 psi (-1 to 14 bar) | $4,945.00 | |
| ADT151-01-CP35 | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: -14.5 to 35 psi (-1 to 2.5 bar), range 2: -14.5 to 20 psi (-1 to 1.4 bar) | $4,945.00 | |
| ADT151-01-CP3.6K | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: -14.5 to 3600 psi (-1 to 250 bar), range 2: -14.5 to 1500 psi (-1 to 100 bar) | $4,945.00 | |
| ADT151-01-CP3K | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: -14.5 to 3000 psi (-1 to 200 bar), range 2: -14.5 to 1500 psi (-1 to 100 bar) | $4,945.00 | |
| ADT151-01-CP5 | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: -5 to 5 psi (-0.35 to 0.35 bar), range 2: -2 to 2 psi (-0.16 to 0.16 bar) | $4,945.00 | |
| ADT151-01-CP50 | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: -14.5 to 50 psi (-1 to 3.5 bar), range 2: -14.5 to 30 psi (-1 to 2 bar) | $4,945.00 | |
| ADT151-01-CP500 | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: -14.5 to 500 psi (-1 to 35 bar), range 2: -14.5 to 300 psi (-1 to 20 bar) | $4,945.00 | |
| ADT151-01-CP5K | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: -14.5 to 5000 psi (-1 to 350 bar), range 2: -14.5 to 3000 psi (-1 to 200 bar) | $4,945.00 | |
| ADT151-01-CP6K | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: -14.5 to 6000 psi (-1 to 420 bar), range 2: -14.5 to 3000 psi (-1 to 200 bar) | $4,945.00 | |
| ADT151-01-DP100 | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: ±100 inH2O (±250 mbar), range 2: ±60 inH2O (±150 mbar) | $5,406.00 | |
| ADT151-01-DP150 | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: ±150 inH2O (±350 mbar), range 2: ±100 inH2O (±250 mbar) | $5,406.00 | |
| ADT151-01-DP1K | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: -400 to 1000 inH2O (-1K to 2.5K mbar), range 2: -400 to 400 inH2O (-1K to 1K mbar) | $5,406.00 | |
| ADT151-01-DP20 | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: ±20 inH2O (±50 mbar), range 2: ±10 inH2O (±25 mbar) | $5,406.00 | |
| ADT151-01-DP200 | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: ±200 inH2O (±500 mbar), range 2: ±150 inH2O (±350 mbar) | $5,406.00 | |
| ADT151-01-DP2.8K | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: -400 to 2800 inH2O (-1K to 6K mbar), range 2: -400 to 1500 inH2O (-1K to 3.5K mbar) | $5,406.00 | |
| ADT151-01-DP2K | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: -400 to 2000 inH2O (-1K to 5K mbar), range 2: -400 to 1500 inH2O (-1K to 3.5K mbar) | $5,406.00 | |
| ADT151-01-DP30 | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: ±30 inH2O (±75 mbar), range 2: ±20 inH2O (±50 mbar) | $5,406.00 | |
| ADT151-01-DP300 | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: ±300 inH2O (±700 mbar), range 2: ±150 inH2O (±350 mbar) | $5,406.00 | |
| ADT151-01-DP40 | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: ±40 inH2O (±100 mbar), range 2: ±30 inH2O (±75 mbar) | $5,406.00 | |
| ADT151-01-DP400 | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: -400 to 400 inH2O (-1K to 1K mbar), range 2: -200 to 200 inH2O (-500 to 500 mbar) | $5,406.00 | |
| ADT151-01-DP800 | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: -400 to 800 inH2O (-1K to 2K mbar), range 2: -400 to 400 inH2O (-1K to 1K mbar) | $5,406.00 | |
| ADT151-01-GP10K | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: 0 to 10000 psi (0 to 700 bar), range 2: 0 to 5000 psi (0 to 350 bar) | $5,055.00 | |
| ADT151-01-GP15K | Pressure module for ADT7XX controller, 0.01%FS accuracy with dual-range calibration, range 1: 0 to 15000 psi (0 to 1000 bar), range 2: 0 to 6000 psi (0 to 400 bar) | $5,275.00 | |
| ADT151-01RD-CP100M | Pressure module for ADT7XX controller, -14.5 to 100 psi (-1 to 7 bar), 0.01% rdg or 0.005% FS, whichever is greater | $8,245.00 | |
| ADT151-01RD-CP150M | Pressure module for ADT7XX controller, -14.5 to 150 psi (-1 to 10 bar), 0.01% rdg or 0.005% FS, whichever is greater | $8,245.00 | |
| ADT151-01RD-CP1.5KM | Pressure module for ADT7XX controller, -14.5 to 1500 psi (-1 to 100 bar), 0.01% rdg or 0.005% FS, whichever is greater | $8,245.00 | |
| ADT151-01RD-CP1KM | Pressure module for ADT7XX controller, -14.5 to 1000 psi (-1 to 70 bar), 0.01% rdg or 0.005% FS, whichever is greater | $8,245.00 | |
| ADT151-01RD-CP2KM | Pressure module for ADT7XX controller, -14.5 to 2000 psi (-1 to 140 bar), 0.01% rdg or 0.005% FS, whichever is greater | $8,245.00 | |
| ADT151-01RD-CP300M | Pressure module for ADT7XX controller, -14.5 to 300 psi (-1 to 20 bar), 0.01% rdg or 0.005% FS, whichever is greater | $8,245.00 | |
| ADT151-01RD-CP30M | Pressure module for ADT7XX controller, -14.5 to 30 psi (-1 to 2.0 bar), 0.01% rdg or 0.005% FS, whichever is greater | $8,245.00 | |
| ADT151-01RD-CP35M | Pressure module for ADT7XX controller, -14.5 to 35 psi (-1 to 2.5 bar), 0.01% rdg or 0.005% FS, whichever is greater | $8,245.00 | |
| ADT151-01RD-CP3.6KM | Pressure module for ADT7XX controller, -14.5 to 3600 psi (-1 to 250 bar), 0.01% rdg or 0.005% FS, whichever is greater | $8,245.00 | |
| ADT151-01RD-CP3KM | Pressure module for ADT7XX controller, -14.5 to 3000 psi (-1 to 200 bar), 0.01% rdg or 0.005% FS, whichever is greater | $8,245.00 | |
| ADT151-01RD-CP500M | Pressure module for ADT7XX controller, -14.5 to 500 psi (-1 to 35 bar), 0.01% rdg or 0.005% FS, whichever is greater | $8,245.00 | |
| ADT151-01RD-CP50M | Pressure module for ADT7XX controller, -14.5 to 50 psi (-1 to 3.5 bar), 0.01% rdg or 0.005% FS, whichever is greater | $8,245.00 | |
| ADT151-01RD-CP5KM | Pressure module for ADT7XX controller, -14.5 to 5000 psi (-1 to 350 bar), 0.01% rdg or 0.005% FS, whichever is greater | $8,245.00 | |
| ADT151-01RD-CP6KM | Pressure module for ADT7XX controller, -14.5 to 6000 psi (-1 to 420 bar), 0.01%RD or 0.005%FS whichever is greater | $8,245.00 | |
| ADT151-01RD-GP10KM | Pressure module for ADT7XX controller, 0 to 10000 psi (0 to 700 bar), 0.01% rdg or 0.005% FS, whichever is greater | $9,235.00 | |
| ADT151-01RD-GP15KM | Pressure module for ADT7XX controller, 0 to 15000 psi (0 to 1000 bar), 0.01% rdg or 0.005% FS, whichever is greater | $9,455.00 | |
| ADT151-02-CP10 | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: -10 to 10 psi (-0.7 to 0.7 bar), range 2: -5 to 5 psi (-0.35 to 0.35 bar), gas only | $2,882.00 | |
| ADT151-02-CP100 | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: -14.5 to 100 psi (-1 to 7 bar), range 2: -14.5 to 50 psi (-1 to 3.5 bar) | $2,882.00 | |
| ADT151-02-CP15 | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: -14.5 to 15 psi (-1 to 1 bar), range 2: -10 to 10 psi (-0.7 to 0.7 bar) | $2,882.00 | |
| ADT151-02-CP150 | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: -14.5 to 150 psi (-1 to 10 bar), range 2: -14.5 to 60 psi (-1 to 4 bar) | $2,882.00 | |
| ADT151-02-CP1K | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: -14.5 to 1000 psi (-1 to 70 bar), range 2: -14.5 to 500 psi (-1 to 35 bar) | $2,882.00 | |
| ADT151-02-CP2K | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: -14.5 to 2000 psi (-1 to 140 bar), range 2: -14.5 to 1000 psi (-1 to 70 bar) | $2,882.00 | |
| ADT151-02-CP30 | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: -14.5 to 30 psi (-1 to 2.0 bar), range 2: -14.5 to 20 psi (-1 to 1.4 bar) | $2,882.00 | |
| ADT151-02-CP300 | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: -14.5 to 300 psi (-1 to 20 bar), range 2: -14.5 to 200 psi (-1 to 14 bar) | $2,882.00 | |
| ADT151-02-CP35 | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: -14.5 to 35 psi (-1 to 2.5 bar), range 2: -14.5 to 20 psi (-1 to 1.4 bar) | $2,882.00 | |
| ADT151-02-CP3.6K | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: -14.5 to 3600 psi (-1 to 250 bar), range 2: -14.5 to 1500 psi (-1 to 100 bar) | $2,882.00 | |
| ADT151-02-CP3K | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: -14.5 to 3000 psi (-1 to 200 bar), range 2: -14.5 to 1500 psi (-1 to 100 bar) | $2,882.00 | |
| ADT151-02-CP5 | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: -5 to 5 psi (-0.35 to 0.35 bar), range 2: -2 to 2 psi (-0.16 to 0.16 bar) | $2,882.00 | |
| ADT151-02-CP50 | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: -14.5 to 50 psi (-1 to 3.5 bar), range 2: -14.5 to 30 psi (-1 to 2 bar) | $2,882.00 | |
| ADT151-02-CP500 | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: -14.5 to 500 psi (-1 to 35 bar), range 2: -14.5 to 300 psi (-1 to 20 bar) | $2,882.00 | |
| ADT151-02-CP5K | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: -14.5 to 5000 psi (-1 to 350 bar), range 2: -14.5 to 3000 psi (-1 to 200 bar) | $2,882.00 | |
| ADT151-02-CP6K | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: -14.5 to 6000 psi (-1 to 420 bar), range 2: -14.5 to 3000 psi (-1 to 200 bar) | $3,027.00 | |
| ADT151-02-DP10 | Pressure module for ADT7XX controller, 0.02%FS accuracy, ±10 inH2O (±25 mbar) | $3,344.00 | |
| ADT151-02-DP100 | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: ±100 inH2O (±250 mbar), range 2: ±50 inH2O (±125 mbar) | $3,344.00 | |
| ADT151-02-DP150 | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: ±150 inH2O (±350 mbar), range 2: ±100 inH2O (±250 mbar) | $3,344.00 | |
| ADT151-02-DP1K | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: -400 to 1000 inH2O (-1K to 2.5K mbar), range 2: -400 to 400 inH2O (-1K to 1K mbar) | $3,344.00 | |
| ADT151-02-DP20 | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: ±20 inH2O (±50 mbar), range 2: ±10 inH2O (±25 mbar) | $3,344.00 | |
| ADT151-02-DP200 | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: ±200 inH2O (±500 mbar), range 2: ±150 inH2O (±350 mbar) | $3,344.00 | |
| ADT151-02-DP2.8K | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: -400 to 2800 inH2O (-1K to 6K mbar), range 2: -400 to 1500 inH2O (-1K to 3.5K mbar) | $3,344.00 | |
| ADT151-02-DP2K | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: -400 to 2000 inH2O (-1K to 5K mbar), range 2: -400 to 1500 inH2O (-1K to 3.5K mbar) | $3,344.00 | |
| ADT151-02-DP30 | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: ±30 inH2O (±75 mbar), range 2: ±20 inH2O (±50 mbar) | $3,344.00 | |
| ADT151-02-DP300 | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: ±300 inH2O (±700 mbar), range 2: ±150 inH2O (±350 mbar) | $3,344.00 | |
| ADT151-02-DP40 | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: ±40 inH2O (±100 mbar), range 2: ±30 inH2O (±75 mbar) | $3,344.00 | |
| ADT151-02-DP400 | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: -400 to 400 inH2O (-1K to 1K mbar), range 2: -200 to 200 inH2O (-500 to 500 mbar) | $3,344.00 | |
| ADT151-02-DP50 | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: ±50 inH2O (±125 mbar), range 2: ±30 inH2O (±75 mbar) | $3,344.00 | |
| ADT151-02-DP800 | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: -400 to 800 inH2O (-1K to 2K mbar), range 2: -400 to 400 inH2O (-1K to 1K mbar) | $3,344.00 | |
| ADT151-02-GP10K | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: 0 to 10000 psi (0 to 700 bar), range 2: 0 to 5000 psi (0 to 350 bar) | $3,113.00 | |
| ADT151-02-GP15K | Pressure module for ADT7XX controller, 0.02%FS accuracy with dual-range calibration, range 1: 0 to 15000 psi (0 to 1000 bar), range 2: 0 to 6000 psi (0 to 400 bar) | $3,344.00 | |
| ADT151-05-DP1 | Pressure module for ADT7XX controller, 0.05%FS accuracy ±1 inH2O (±2.5 mbar) | $3,344.00 | |
| ADT151-05-DP2 | Pressure module for ADT7XX controller, 0.05%FS accuracy ±2 inH2O (±5 mbar) | $3,344.00 | |
| ADT151-05-DP5 | Pressure module for ADT7XX controller, 0.05%FS accuracy, ±5 inH2O (±10 mbar) | $3,344.00 | |
| ADT151-BP | Barometric pressure module for ADT7XX controller, 60 to 110 kPa, 22 Pa accuracy | $2,882.00 | |
| ADT151-BPH | Barometric pressure module for ADT7XX controller, 60 to 110 kPa, 10 Pa accuracy | $5,769.00 |
