Crystal HPC Handheld Pressure Calibrator
Crystal HPC40 and HPC50 handheld pressure calibrators with 0.035% of reading accuracy, a non-menu color interface, and fully temperature-compensated pressure, mA, voltage, and True Ohm temperature measurement from −20 to 50°C.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Crystal HPC family covers the HPC40 Series and the intrinsically safe HPC50 Series handheld pressure calibrators. Both deliver 0.035% of reading accuracy and the same non-menu color interface so you can measure pressure, current, voltage, and temperature without digging through nested menus.

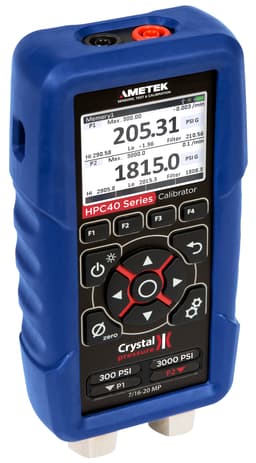

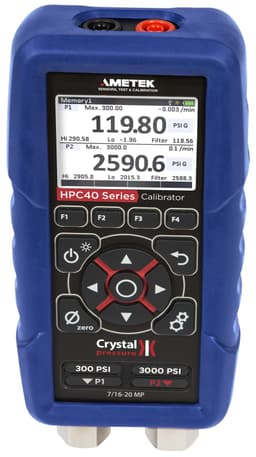

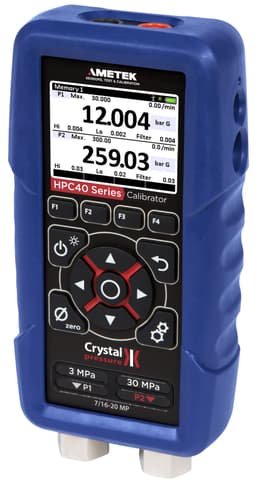

The HPC40 is the world’s first combined pressure and mA loop calibrator fully temperature-compensated from −20 to 50°C. It measures gauge, absolute, and differential pressure to 15,000 psi / 1,000 bar, sources or measures mA with internal 24 VDC loop power, and includes a high-accuracy True Ohm thermometer.

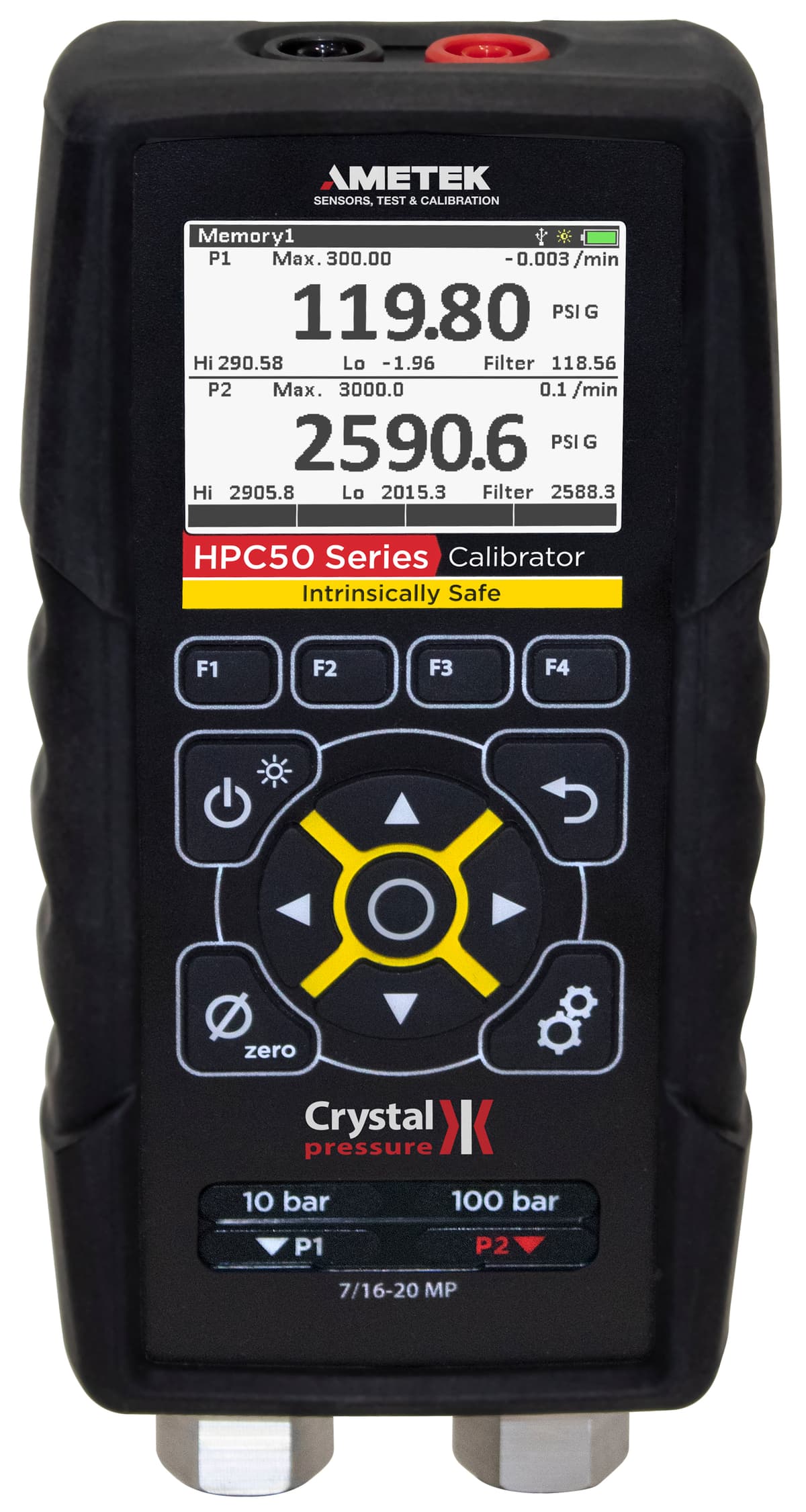

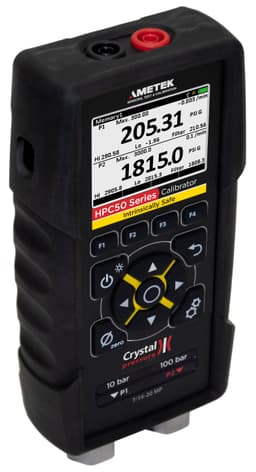

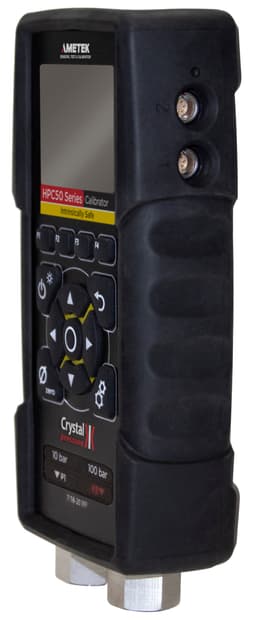

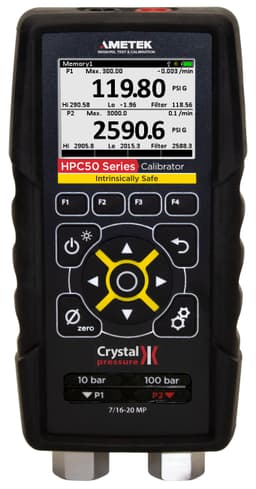

The HPC50 keeps those functions and adds intrinsic safety, longer battery life, an improved display, and two external module connections for APMi pressure or ATMi temperature modules (up to four pressure inputs). HPC50 pressure ranges run to 10,000 psi / 700 bar. Store and recall previously used screens on either series. Every calibrator ships with an ISO 17025 / A2LA calibration report with data at five temperatures. Pair with Crystal pump systems for a complete kit.
Specifications
| Pressure | |
| Accuracy | 0.035% of reading (HPC40 and HPC50) |
| HPC40 ranges | Gauge / absolute / differential to 15,000 psi / 1,000 bar |
| HPC50 ranges | Gauge / absolute / differential to 10,000 psi / 700 bar |
| Compensation | −20 to 50°C for pressure, electrical, and temperature |
| Electrical | |
| mA / V | Measure and source mA; HPC40 includes internal 24 VDC loop power |
| Temperature | |
| RTD | High-accuracy thermometer with True Ohm technology |
| Interface | |
| UI | Non-menu color display; store and recall screens |
| Safety | |
| HPC50 | Intrinsically safe; two external APMi / ATMi module ports |
| Software | |
| CrystalControl | Configure, update, and document HPC40 and HPC50 |
| Calibration | |
| Certificate | ISO 17025 / A2LA with data at 5 temperatures |
Videos
Documents
Ordering information
74 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| 104203 | Test leads; 1x black and 1x red | $163.00 | |
| 124716 | 4x1.5VAA NM Battery, Not Restricted as per SP A199 | $80.00 | |
| 124718 | Charger for rechargeable batteries - 115/230 VAC | $309.00 | |
| 127387 | UHM8 Pt100 Probe with 4-pol LEMO | $568.00 | |
| 129670 | UHM8 Pt100 Probe w.4-pol LEMO w. Calibration Cert | $889.00 | |
| 129855 | Cable 1m (3.3 ft.) with REDEL / LEMO | $252.00 | |
| 3009 | Hard Carrying Case w. Egg Crate Foam | $175.00 | |
| 3981 | O-ring for Female CPF/Male 1/2" Tube /100pcs | $87.00 | |
| 4492 | MP Male to 3/8 NPT Male (6N04M15) | $175.00 | |
| 4493 | MP Male to 1/2 NPT Male (8N04M15) | $198.00 | |
| 4497 | MP Male to 1/8 NPT Female (2NF04M15) | $175.00 | |
| 4498 | MP Male to 1/4 NPT Female (4NF04M15) | $175.00 | |
| 4499 | MP Male to 3/8 NPT Female (6NF04M15) | $175.00 | |
| 4500 | MP Male to 1/2 NPT Female (8NF04M15) | $175.00 | |
| 4698 | MP Male to 1/4 NPT Male (4N04M15) | $175.00 | |
| 5203 | Magnetic Hanging Strap XP2i,XP3i,m1,HPC&30 Series | $100.00 | |
| 5241 | Protective Boot HPC40 Series | $107.00 | |
| 6215 | Protective Boot HPC50 Series | $107.00 | |
| HPC:100BAR | 100 bar gauge | Request a quote | |
| HPC:100KPA | 100 kPa gauge | Request a quote | |
| HPC:100MPA | 100 MPa gauge | Request a quote | |
| HPC:100PSI | 100 psi gauge | Request a quote | |
| HPC:10BAR | 10 bar gauge | Request a quote | |
| HPC:10KPSI | 10000 psi gauge | Request a quote | |
| HPC:10MPA | 10 MPa gauge | Request a quote | |
| HPC:15KPSI | 15000 psi gauge | Request a quote | |
| HPC:15PSI | 15 psi gauge | Request a quote | |
| HPC:1BAR | 1 bar gauge | Request a quote | |
| HPC:1KBAR | 1000 bar gauge | Request a quote | |
| HPC:1KPSI | 1000 psi gauge | Request a quote | |
| HPC:1MPA | 1 MPa gauge | Request a quote | |
| HPC:300BAR | 300 bar gauge | Request a quote | |
| HPC:300KPA | 300 kPa gauge | Request a quote | |
| HPC:300PSI | 300 psi gauge | Request a quote | |
| HPC:30BAR | 30 bar gauge | Request a quote | |
| HPC:30MPA | 30 MPa gauge | Request a quote | |
| HPC:30PSI | 30 psi gauge | Request a quote | |
| HPC:3BAR | 3 bar gauge | Request a quote | |
| HPC:3KPSI | 3000 psi gauge | Request a quote | |
| HPC:3MPA | 3 MPa gauge | Request a quote | |
| HPC:700BAR | 700 bar gauge | Request a quote | |
| HPC:70MPA | 70 MPa gauge | Request a quote | |
| HPC:AHX | System A (pneumatic) 0 to 40 bar | $2,113.00 | |
| HPC:AXX | System A (pneumatic) 0 to 2 bar | $2,113.00 | |
| HPC:BARO | Barometric module for absolute pressure measurements | $683.00 | |
| HPC:BHX | System B (pneumatic) -0.91 to 40 bar | $2,291.00 | |
| HPC:BSP | 1/4 BSP Male Pressure Fitting | Request a quote | |
| HPC:BXX | System B (pneumatic) -0.91 to 2 bar | $2,291.00 | |
| HPC:CHX | System C (oil) 0 to 350 bar | $2,206.00 | |
| HPC:CXX | System C (oil) 0 to 200 bar | $1,940.00 | |
| HPC:DOX | System D (oil) 0 to 350 bar | $4,042.00 | |
| HPC:DWX | System D (water) 0 to 350 bar | $4,042.00 | |
| HPC:E | No Liquid (Pump Drained) | Request a quote | |
| HPC:EOX | System E (oil) 0 to 700 bar | $5,702.00 | |
| HPC:FOV | System F (oil) 0 to 1000 bar | $6,335.00 | |
| HPC:FWV | System F (water) 0 to 1000 bar | $6,335.00 | |
| HPC:GOX | System G (oil) 0 to 1000 bar | $6,758.00 | |
| HPC:GWX | System G (water) 0 to 1000 bar | $6,758.00 | |
| HPC:HOX | System H (oil/pneumatic) -0.91 to 350 bar | $3,863.00 | |
| HPC:HPC41 | HPC - Single Pressure Calibrator | $3,751.00 | |
| HPC:HPC42 | HPC - Dual Sensor Calibrator | $4,258.00 | |
| HPC:HPC51 | HPC - Single Pressure Calibrator | $4,133.00 | |
| HPC:HPC52 | HPC - Dual Pressure Calibrator | $4,722.00 | |
| HPC:M20 | M20 x 1.5 Metric Male Pressure Fitting | $87.00 | |
| HPC:NONE | Pump system ONLY ** NO Calibrator** | $213.00 | |
| HPC:T2 | UHM8 Pt100 Probe, -40 to 150°C, System Calibration - Accredited Certificate - ISO17025* | $1,559.00 | |
| HPC:T3 | STS050 Probe, -45 to 400°C, System Calibration - Accredited Certificate - ISO17025* | $2,016.00 | |
| HPC:W | Additional Price for Waterproof Carrying Case | $270.00 | |
| HPC:XXX | See Pressure Range section for correct ordering code | Request a quote | |
| MPM-1/2MPT | CPF Male to 1/2 NPT Male | $153.00 | |
| MPM-1/4BSPM | CPF Male to 1/4 BSP Male | $153.00 | |
| MPM-1/4MPT | CPF Male to 1/4 NPT Male | $153.00 | |
| MPM-M20X1.5M | CPF Male to M20 x 1.5 Male | $153.00 | |
| SPK-HHC-003 | Large Padded Soft Carrying Case w. shoulder strap | $271.00 |
