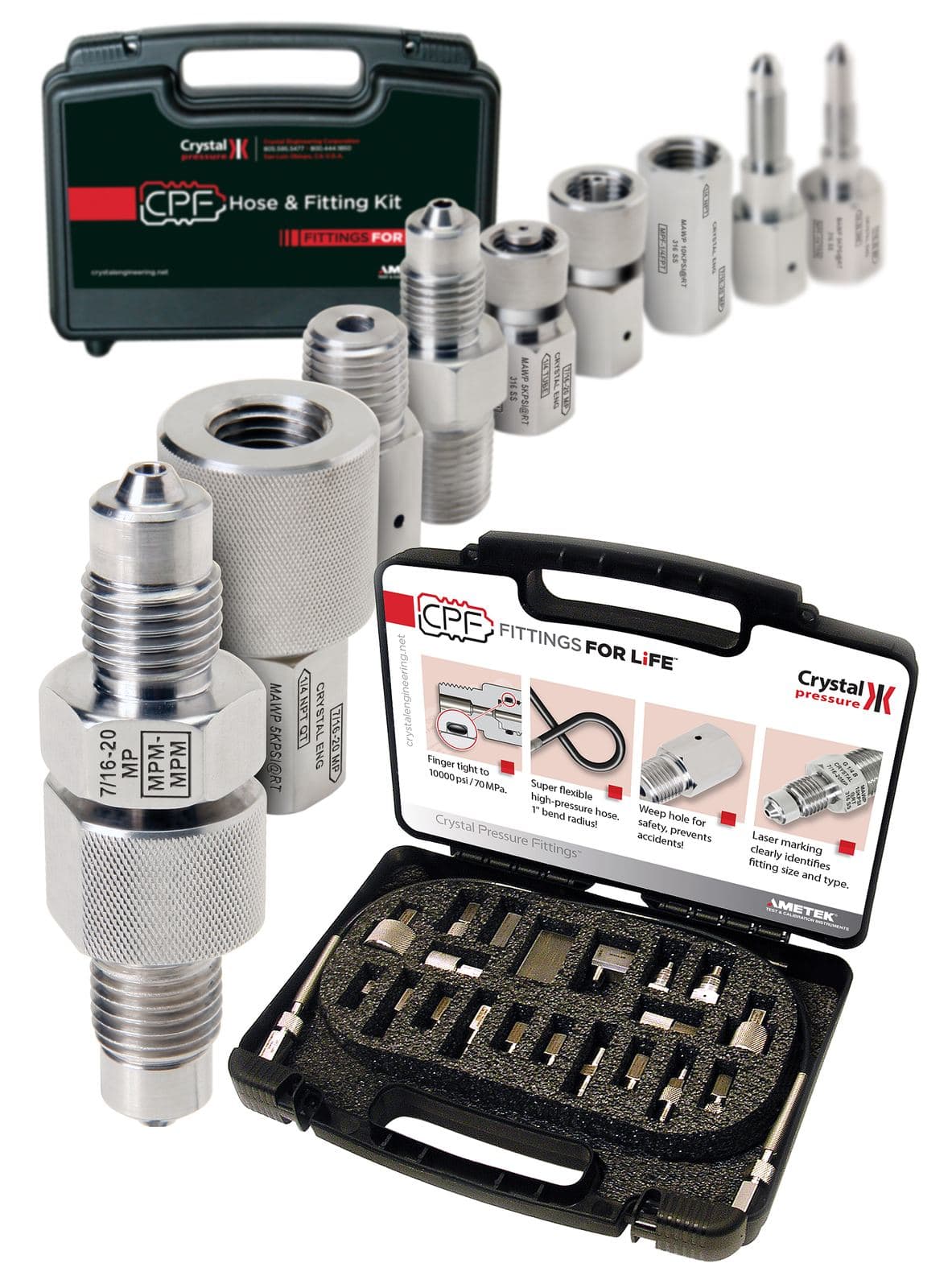

Crystal Pressure Fittings (CPF). CPF Fittings and Hose are a new line of quick-test pressure fittings for calibration and test applications — 316 stainless steel, patented o-ring plus metal-to-metal cone seal, finger-tight and leak-free to 10,000 psi (10000 psi) / 700 bar, with a self-venting weep hole and laser-marked MAWP.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
CPF Fittings and Hose are a new line of quick-test pressure fittings for calibration and test applications — designed with an emphasis on safety. Crystal Pressure Fittings (CPF) perform up to 15,000 psi / 1,000 bar and feature a safety weep hole to alert you before you accidentally disconnect from a pressurized system. It can also be used as a bleed point. Each fitting is machined in 316 stainless steel and laser-marked with thread type, size, part number, and Maximum Allowable Working Pressure.
A patented o-ring connection (U.S. Patent 8,794,677) holds a leak-free seal to 10,000 psi / 700 bar / 70 MPa with only finger-tightening from −20 to 50°C. Wrench-tight metal-to-metal cone seal is rated −40 to 150°C. O-rings are replaceable (AS568A-012 Viton 80 or 90, Crystal #3981). Designed and tested to ASME B31.3-2018 Chapter IX High Pressure Piping.
Wrench-tight, CPF mates with 1/4 in medium-pressure cone fittings from HiP (LF4 / LM4) and Autoclave Engineers (SF250CX). CPF thread is 7/16-20 UNF 2B, 60° cone. MPH hoses use a polyamide core and urethane jacket with a 1.0 in (25 mm) minimum bend radius. Most fittings share a 10,000 psi MAWP; 5,000 and 15,000 psi exceptions are marked on the part.
Specifications
| Pressure | |
| MAWP | 10,000 psi / 700 bar / 70 MPa typical; 5k and 15k exceptions laser-marked |
| Seals | |
| Finger-tight | O-ring seal to 10,000 psi, −20 to 50°C (no tools) |
| Wrench-tight | Metal-to-metal 60° cone, −40 to 150°C; 100–140 in-lb |
| Safety | |
| Weep hole | Self-venting hole alerts before disconnect from a pressurized system |
| Construction | |
| Material / thread | High-strength 316 SS; 7/16-20 UNF 2B; laser-marked type, size, MAWP |
| Compatibility | |
| Other MP fittings | Wrench-tight to HiP LF4/LM4 and Autoclave SF250CX 1/4 in medium pressure |
| Hose | |
| MPH | Polyamide core, urethane jacket; 1.0 in min bend radius; 0.235 in OD |
| Standard | |
| Design | ASME B31.3-2018 Chapter IX; U.S. Patent 8,794,677 |
| General | |
| Sources | AMETEK CPF product page + official datasheet high-pressure-fittings-cpf-data-sheet-us.pdf (4895.Q 2404) |
