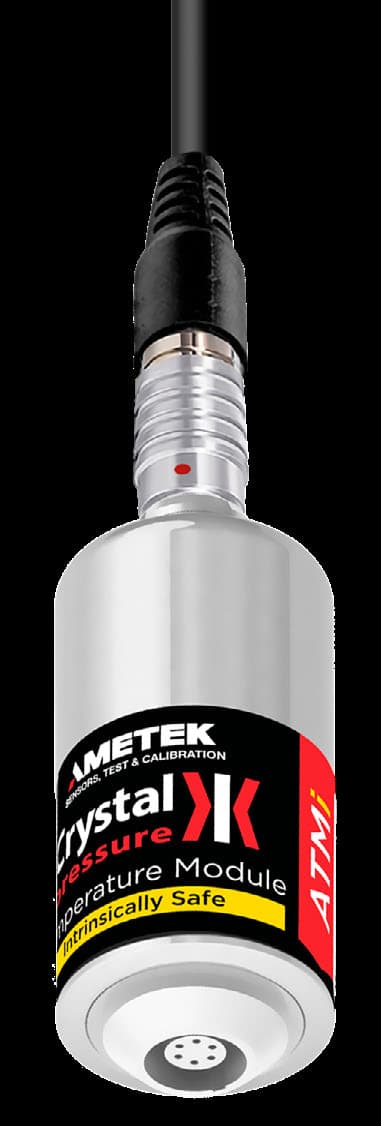

Crystal ATMi Series Advanced Temperature Module Intrinsically Safe
Intrinsically safe Crystal temperature module for the HPC50 handheld calibrator. ±(0.015% of reading) + 0.02 Ω on Pt100 RTDs, two ATMi modules per HPC50, and a machined stainless-steel housing.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Crystal ATMi is an intrinsically safe advanced temperature module for the Crystal HPC50 Series. Official AMETEK copy: two ATMi modules can be connected to a single HPC50, in addition to the two installed pressure modules, so you can read pressure together with ambient and process temperature on the same instrument. The official manual states the HPC50 is currently the only Crystal calibrator supported by the ATMi.
Temperature measurement is ±(0.015% of reading) + 0.02 Ω over 0 to 400 Ω, 4-wire, with 0.01 resolution on °C, K, °F, R, and Ω. TCR is 0.003850 Ω/Ω/°C (IEC 60751). The module is temperature compensated from −20 to 50°C. Calibration data is stored in the module, so any ATMi works with any HPC50 without pairing calibration.
Housing is machined stainless steel (2.5 × 1.1 in, 0.31 lb). Approvals: Ex ia IIC T4/T3 Ga, FTZU 18 ATEX 0043X, IECEx FTZU 18.0012X, and Class I, Division 1, Groups A, B, C, and D. Interface cables are 1, 3, or 10 m. Optional JOFRA Pt100 (IS, −40 to 150°C) and STS050 probes are available. Each module ships with ISO 17025 / A2LA and NIST-traceable calibration certificates.
Specifications
| Temperature | |
| Accuracy | ±(0.015% of reading) + 0.02 Ω; 0 to 400 Ω; 1-year including temperature |
| Units / wiring | °C, K, °F, R, Ω; 4-wire; TCR 0.003850 Ω/Ω/°C (IEC 60751) |
| Resolution | 0.01 on all scales; display update up to 10/s |
| Host | |
| Calibrator | Crystal HPC50 only (official manual); up to two ATMi modules |
| Probes | |
| JOFRA options | Pt100 IS −40 to 150°C (T / T4); STS050 −45 to 400°C (T5, not IS) |
| Safety | |
| Intrinsic safety | Ex ia IIC T4/T3 Ga; FTZU 18 ATEX 0043X; IECEx FTZU 18.0012X; Class I Div 1 Groups A–D |
| Enclosure | |
| Size / weight | 2.5 × 1.1 in (63.3 × 27.0 mm); 0.31 lb / 141 g; machined stainless steel |
| Calibration | |
| Certificate | ISO 17025 / A2LA (#2601.01) plus NIST-traceable |
| General | |
| Sources | AMETEK ATMi product page + official datasheet temperature-modules-atmi-datasheet-us.pdf |
Documents
Ordering information
6 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| ATMiSeries:10M | Cable 10 m / 33 ft. | $513.00 | |
| ATMiSeries:3M | Cable 3 m / 10 ft. | $107.00 | |
| ATMiSeries:ATM-I | ATMi - Advanced Temperature Module - Intrinsically Safe | $815.00 | |
| ATMiSeries:T | UHM8i Pt100 Probe, IS Certified, -40 to 150°C, without Calibration Certificate | $568.00 | |
| ATMiSeries:T4 | UHM8i Pt100 Probe, IS Certified, -40 to 150°C, with Traceable Calibration Certificate | $889.00 | |
| ATMiSeries:T5 | STS050 Probe, -50 to 400°C, with Traceable Calibration Certificate, ** NOT IS Certified ** | $1,346.00 |
