Crystal
Crystal APM CPF Series Advanced Pressure Module
Model APMCPFSeries

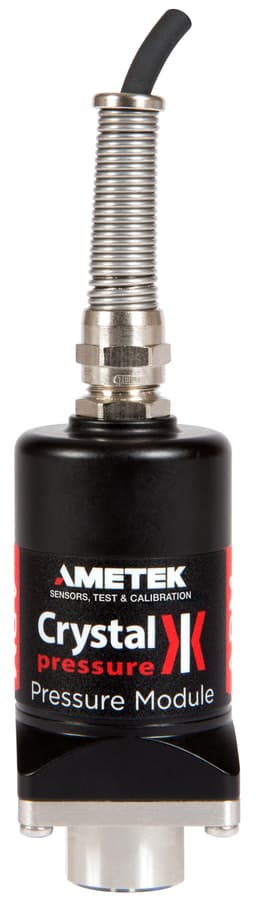

Intelligent Crystal pressure module with an integrated CPF female connection, 0.025% of reading accuracy, and seven ranges from vacuum to 15,000 psi / 1,000 bar. Adds pressure measurement to a multifunction signal calibrator or expands a handheld pressure calibrator.
From $14.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Crystal APM CPF Series is a portable, self-contained pressure module with an integrated Crystal CPF female connection. Official AMETEK copy: it offers the functionality and flexibility to perform pressure calibrations with a multifunction signal calibrator, and when connected to a hand-held pressure calibrator the APM can expand that calibrator’s range.
Accuracy is 0.025% of reading on 30 / 100 / 300 psi modules (0 to 30% of range ±0.0075% of full scale; 30 to 110% ±0.025% of reading) and 0.05% of reading on 1,000 / 3,000 / 10,000 / 15,000 psi modules (0 to 30% ±0.015% of full scale; 30 to 110% ±0.05% of reading). Figures include linearity, hysteresis, repeatability, temperature, and one-year stability. Modules are fully temperature compensated from −20 to 50°C — no change in accuracy over the operating range after zeroing.

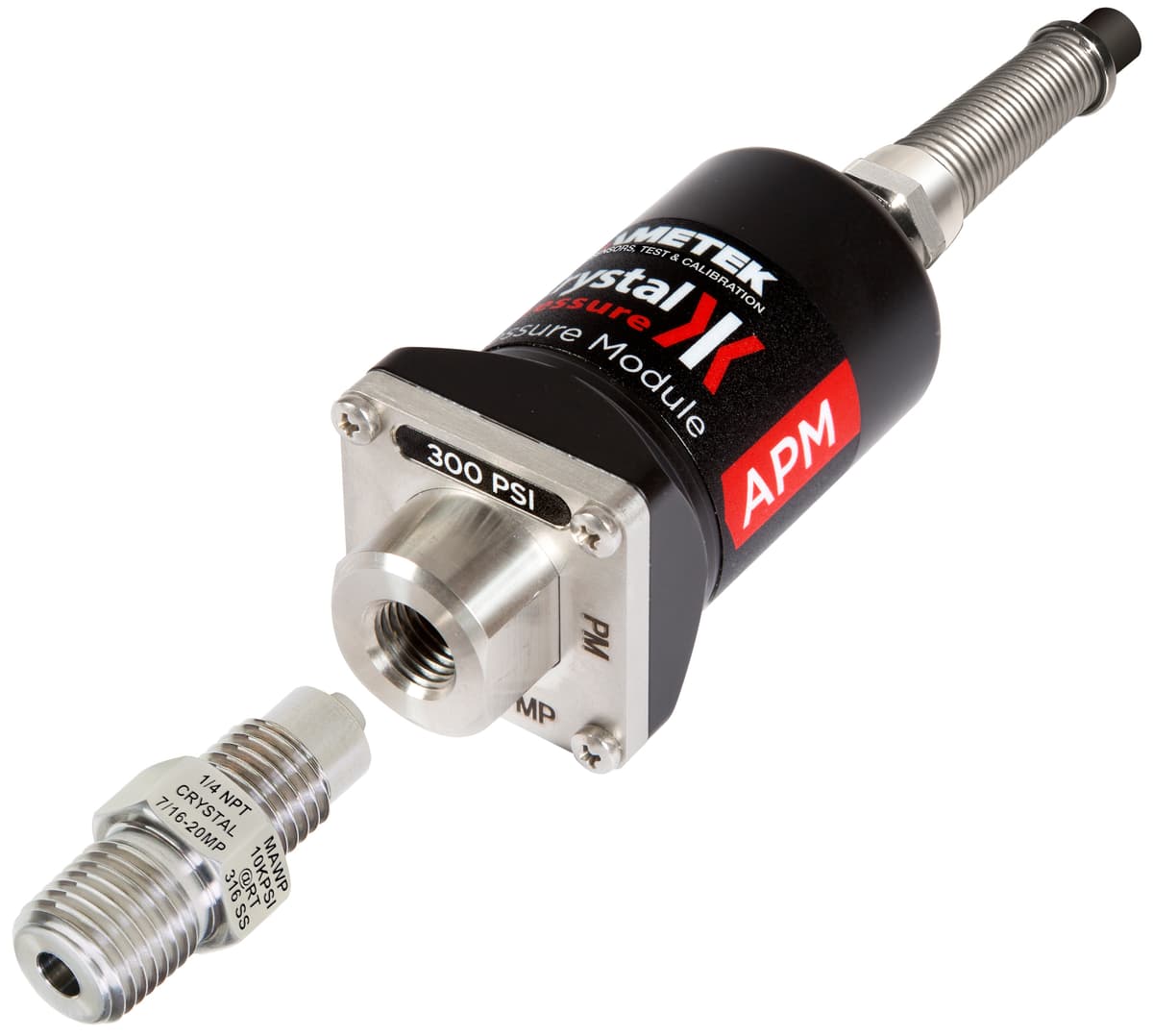

Seven ranges cover vacuum through 15,000 psi / 1,000 bar / 100 MPa. Calibration data lives in the module, so any APM can be combined with any compatible JOFRA indicator without pairing calibration. The enclosure is machined aluminum (1.4 × 1.4 × 3.0 in, 0.51 lb). Connection is Crystal CPF female; a 1/4 in male NPT adapter is included unless BSP, M20, or 15,000 psi is specified. Everyday thread wear shifts to that replaceable CPF adapter. Crystal Engineering calibration facilities are A2LA accredited (#2601.01).
Specifications
| Pressure | |
| Accuracy 30/100/300 psi | 0–30% of range ±(0.0075% FS); 30–110% ±(0.025% of reading); 1-year, includes temperature |
| Accuracy 1k–15k psi | 0–30% of range ±(0.015% FS); 30–110% ±(0.05% of reading) |
| Ranges | Seven ranges, vacuum to 15,000 psi / 1,000 bar / 100 MPa |
| Compensation | −20 to 50°C; no change in accuracy after zero |
| Connection | |
| Fitting | Crystal CPF female; 1/4 in NPT adapter included unless BSP, M20, or 15 KPSI |
| Sensor | |
| Wetted materials | 316 stainless steel (wrench tight); 316 SS + Viton o-ring (finger tight); silicone-oil diaphragm |
| Output | |
| Resolution / update | Up to 6 digits; up to 10 readings/s |
| Communication | |
| Interface | 5-pin LEMO; 9600 8N1 ASCII |
| Enclosure | |
| Size / weight | 1.4 × 1.4 × 3.0 in (35.5 × 35.5 × 76.2 mm); 0.51 lb / 231 g |
| Calibration | |
| Certificate | A2LA accredited (#2601.01), ILAC recognized |
| General | |
| Sources | AMETEK APM CPF Series product page + official datasheet pressure-modules-apm-cpf-data-sheet-us.pdf |
