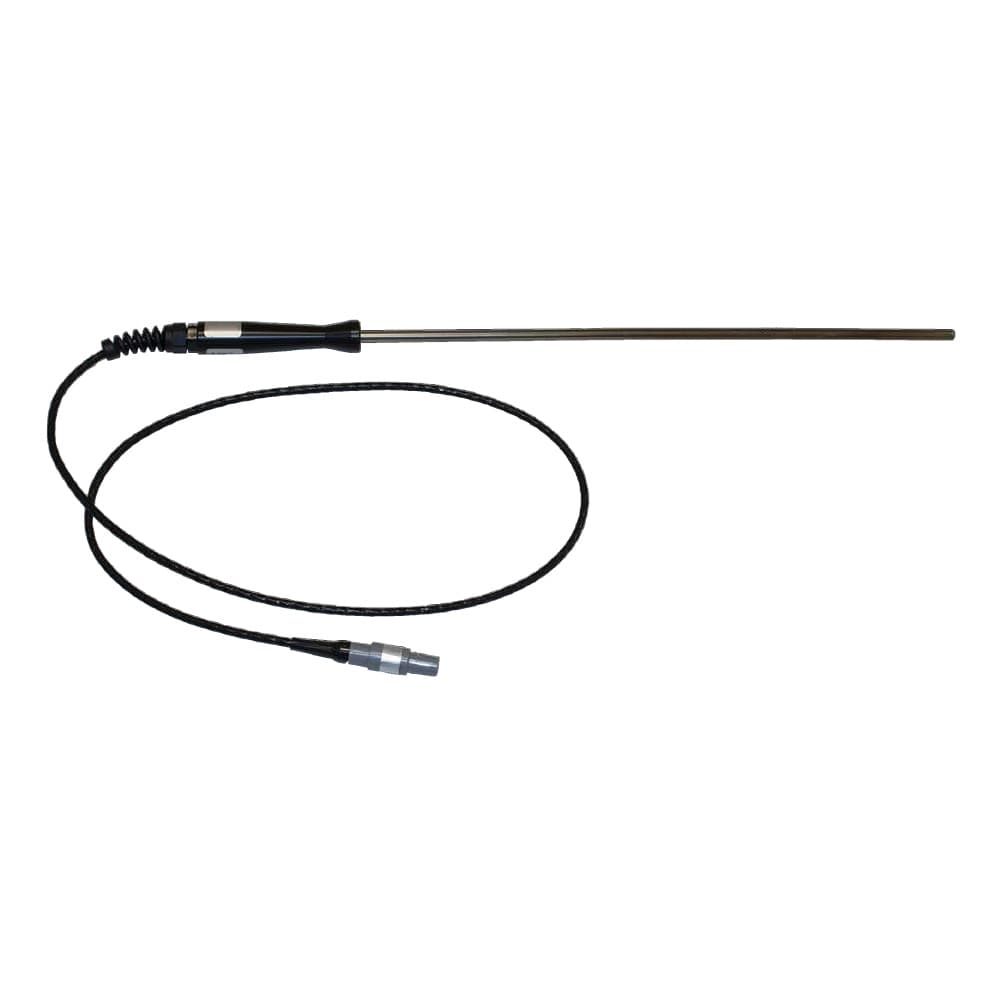

JOFRA STS-050 Reference Sensor
Pt100 reference probe for fast, traceable temperature calibration with DTI, PTC, RTC, HPC, ATMi, and ASC instruments. Official range −50 to 400°C (−58 to 752°F).
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The STS Reference Sensors are Pt100 reference probes used as the reference instrument to verify true temperature in any type of hand-held, liquid bath, or dry-block calibrator. Use directly in custody transfer applications where high accuracy means money. The superior specifications combined with a long history of reliability and low drift have made the STS probes the working standard in many national laboratories worldwide.
STS sensors are economical and offer fast response times, low immersion depths, compact physical sizes, and specified low drift rates, even at high temperatures. Combine with JOFRA temperature instruments for complete high-accuracy systems. Series features from the official AMETEK page include a wide temperature range of −100 to 700°C, high system accuracy of ±0.04°C when combined with RTC calibrators, a long-term burn-in procedure up to 650°C, and accredited certificates up to 650°C as standard delivery.
The JOFRA STS-050 A probes are designed for fast and accurate, traceable calibration of temperature. Official AMETEK documentation states STS-050 can be used for measuring and calibration with AMETEK DTI Series, PTC B & C Series, RTC B & C Series, HPC Series, ATMi and ASC series. Official base model: Pt100 reference sensor, solid, with handle, −50 to 400°C (−58 to 752°F). Standard delivery includes an international traceable calibration certificate; an accredited (ISO/EN/IEC 17025) calibration certificate can be selected.
Official sources: https://www.ametekcalibration.com/products/temperature/reference-temperature-sensors/sts-reference-sensors and the official STS selection guide / DTI-1000 STS datasheet.
Specifications
| Sensor | |
| Type | Pt100 reference probe, solid, with handle |
| Range | |
| Temperature | −50 to 400°C (−58 to 752°F) |
| Compatibility | |
| Instruments | DTI Series, PTC B & C, RTC B & C, HPC Series, ATMi, ASC series |
| System | |
| With RTC (series) | ±0.04°C system accuracy (STS series, official AMETEK page) |
| Certificate | |
| Standard | International traceable calibration certificate; accredited ISO 17025 optional |
Documents
Ordering information
17 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| STS050:cable:D | Cable 1 m (3.3 ft.) with Redel connector for DTI050 | Request a quote | |
| STS050:cable:F | Cable 1 m (3.3 ft.) 4mm Banana Male for ASC400 | Request a quote | |
| STS050:cable:G | Cable 1 m (3.3 ft.) LEMO 4-POL for DTI1000 / HPC40 | Request a quote | |
| STS050:cable:H | Cable 1 m (3.3 ft.) LEMO 6-POL for ATM-I / HPC50 | Request a quote | |
| STS050:cert:F | Traceable Certificate to International Standards - Standard * -45°C to 400°C | Request a quote | |
| STS050:cert:H | Accredited Certificate - ISO17025 - Option * -45°C to 400°C | $226.00 | |
| STS050:diameter-of-the-probe:A | Overall diameter 4 mm (0.16 in) | Request a quote | |
| STS050:opt:65-F100 | Insulation in Tube, 100 mm x Ø25 mm | $49.00 | |
| STS050:opt:65-F101 | Insulation in Tube, 150 mm x Ø25 mm | $65.00 | |
| STS050:opt:65-F102 | Insulation in Tube, 200 mm x Ø25 mm | $80.00 | |
| STS050:opt:65-F103 | Insulation in Tube, 250 mm x Ø25 mm | $104.00 | |
| STS050:opt:65-F104 | Insulation in Tube, 300 mm x Ø25 mm | $117.00 | |
| STS050:opt:65-F105 | Insulation in Tube, 350 mm x Ø25 mm | $172.00 | |
| STS050:opt:65-F106 | Insulation in Tube, 400 mm x Ø25 mm | $117.00 | |
| STS050:opt:65-F107 | Insulation in Tube, 450 mm x Ø25 mm | $203.00 | |
| STS050:shape-and-lenght:250 | Straight probe, 250 mm (9.8 in) delivered in carton box | Request a quote | |
| STS050:shape-and-lenght:350 | Straight probe, 350 mm (13.8 in) delivered in carton box | Request a quote |
