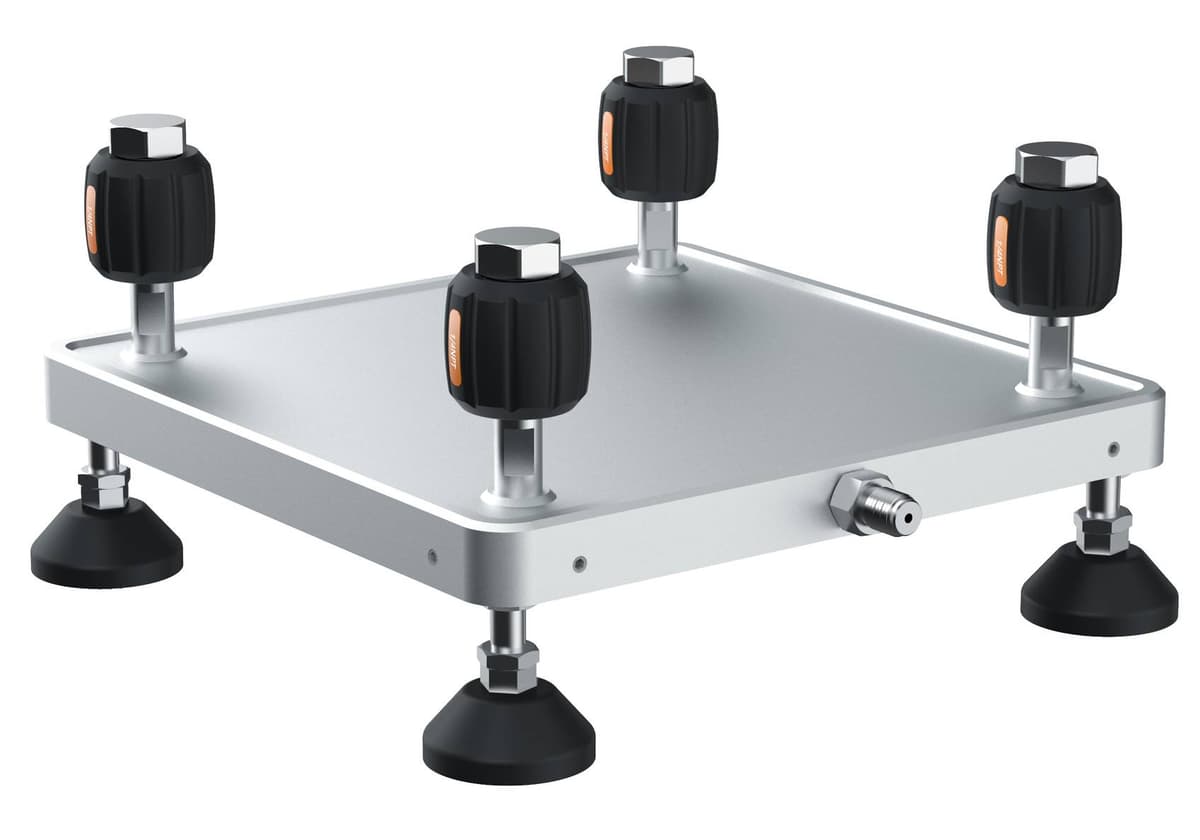

Additel 123 Hydraulic Pressure Manifold
Four-port hydraulic pressure manifold with hand-tight quick connectors for −15 to 15,000 psi (−1 to 1,000 bar). No wrenches or PTFE tape. From $1,800.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Additel 123 is a hydraulic pressure manifold for expanding test ports during calibration. Four hand-tight quick connectors are pre-installed so you connect gauges and transmitters without wrenches or PTFE tape — useful on calibration pumps, pressure controllers, dead-weight testers, and piston gauges.
The official 12X datasheet rates the 123 at −15 to 15,000 psi (−1 to 1,000 bar) for hydraulic service. Port options are 1/4 NPT, 1/2 NPT, 1/4 BSP, 1/2 BSP, and M20×1.5 (male hose to four matching female hand-tight connectors). A test hose is included. Accessory hoses and filters have an estimated 10-year service life and should be replaced at the first sign of wear.
Five port variants, each $1,800.
Specifications
| Pressure | |
| Range | Hydraulic, −15 to 15,000 psi (−1 to 1,000 bar) |
| Mechanical | |
| Test ports | Four hand-tight quick connectors (no wrenches or PTFE tape) |
| Ports | |
| Connections | 1/4 NPT, 1/2 NPT, 1/4 BSP, 1/2 BSP, or M20×1.5 (male hose to four matching female QCs) |
| Included | |
| Hose | Test hose included |
| Service | |
| Hose / filter life | Estimated 10-year EOL; replace at first sign of wear or damage |
| General | |
| Starting price | From $1,800 |
Documents
Ordering information
5 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| ADT123-B | Hydraulic Pressure Manifold, -15 to 15000 psi, 1/4 BSP F | $1,800.00 | |
| ADT123-B2 | Hydraulic Pressure Manifold, -15 to 15000 psi, 1/2 BSP F | $1,800.00 | |
| ADT123-M | Hydraulic Pressure Manifold, -15 to 15000 psi, M20X1.5 F | $1,800.00 | |
| ADT123-N | Hydraulic Pressure Manifold, -15 to 15000 psi, 1/4 NPT F | $1,800.00 | |
| ADT123-N2 | Hydraulic Pressure Manifold, -15 to 15000 psi, 1/2 NPT F | $1,800.00 |
