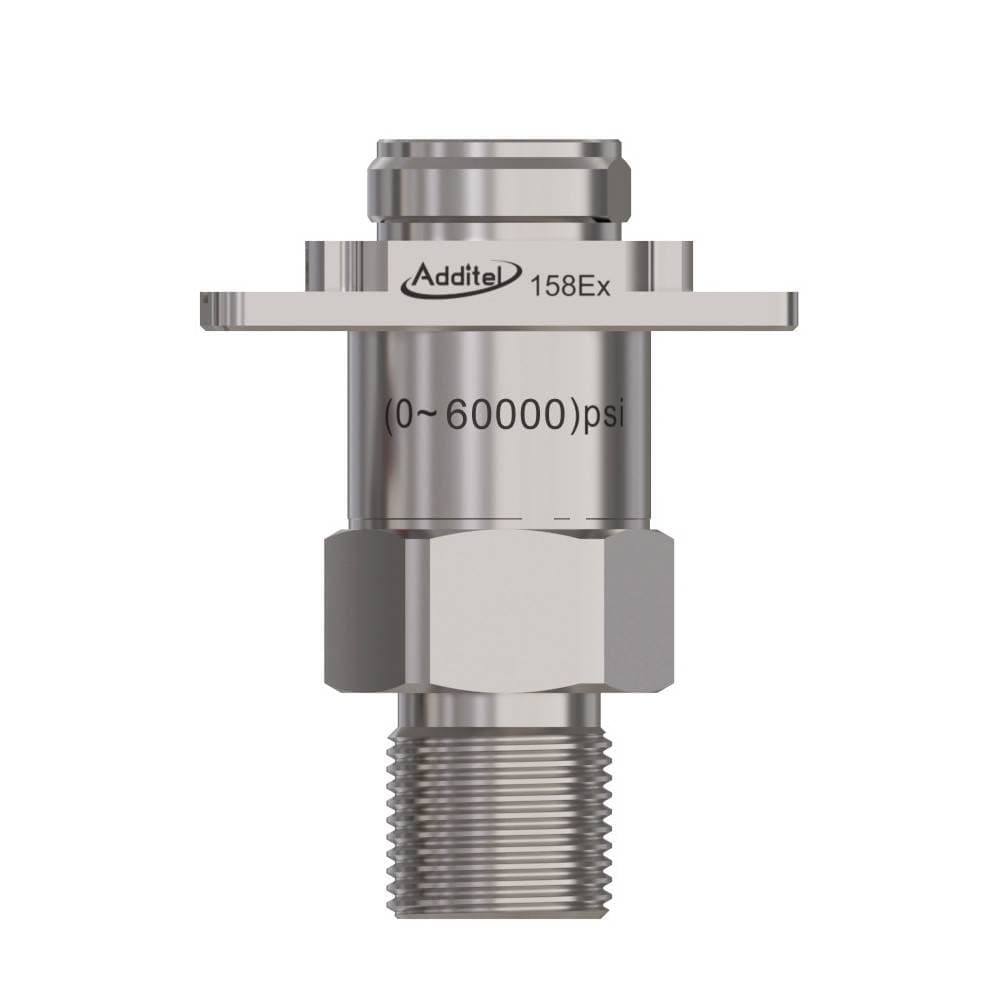

Additel 158Ex Intelligent Digital Pressure Module
Model ADT158
Field-switchable intrinsically safe digital pressure modules for Additel 273Ex and 260Ex handhelds. Ranges to 60,000 psi (4,200 bar). Accuracy 0.02% FS (0.05% / 0.1% on selected ranges). ISO 17025 cert included. From $1,382.
From $1,382.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Additel 158Ex is the field-switchable digital pressure module for Additel 273Ex and 260Ex handheld calibrators. It mounts on the bottom of the handheld — swap the module in the field and the same 260Ex recorder or 273Ex calibrator covers a new range without a second instrument. Every silicon sensor is aged, tested, and screened before assembly. ATEX intrinsically safe only when used with ADT260EX or ADT273EX.
Gauge, compound, vacuum, and barometric ranges run from ±2 psi up to 60,000 psi (4,200 bar). Most ranges are 0.02% FS; low-range GP2 / GP5 / CP2 and high-range GP15K–GP40K are 0.05% FS; GP50K / GP60K are 0.1% FS. The optional ADT158Ex-BP barometer (60–110 kPa, ±55 Pa) is the cheapest configuration. Ports: 1/4 and 1/2 NPT or BSP male, M20×1.5, or Autoclave F-250-C / M-250-C on high-pressure models. Stainless enclosure, 33 × 123 mm, 0.4 kg. ISO 17025 accredited calibration with data included.
Unlike the Additel 151 — the removable control module that swaps into 773 / 783 / 793 benchtop controllers — and unlike the Additel 161 — a standalone intelligent module for process calibrators, tablets, and the external Lemo ports on 260Ex / 273Ex — the 158Ex is the bottom-mount handheld module. 403 configurations. From $1,382.
Specifications
| Pressure | |
| Host handhelds | Field-switchable bottom-mount module for Additel 273Ex and 260Ex |
| Pressure types | Gauge (GP), compound (CP), vacuum (V15), plus optional barometer (BP) |
| Maximum range | To 60,000 psi (4,200 bar) on GP60K |
| Accuracy | 0.02% FS (02) on most ranges; 0.05% FS (05) on GP2 / GP5 / CP2 and GP15K–GP40K; 0.1% FS (10) on GP50K / GP60K |
| Barometer | Optional ADT158Ex-BP, 60–110 kPa, ±55 Pa, gas, 3× burst |
| Temperature compensation | Fully temperature-compensated accuracy, valid −10 °C to 50 °C (14 °F to 122 °F) |
| Media | Gas on vacuum / low compound and GP2–GP10; gas and liquid on GP15 and above and CP100 and above. Sealed gauge above 1,000 psi |
| Burst / overpressure | Typical 3× burst / 1.2× overpressure; 2× on GP10K / CP10K; 1.5×–1.1× burst on 20k–60k psi |
| Safety | |
| Intrinsic safety | ATEX certified intrinsically safe only with ADT260EX and ADT273EX |
| General | |
| Pressure connections | 1/4 NPT, 1/2 NPT, 1/4 BSP, 1/2 BSP, M20×1.5 male; Autoclave F-250-C female / M-250-C male on high-pressure models (external use) |
| Form factor | 33 × 123 mm (1.3 × 4.84 in); 0.99 lb (0.4 kg); stainless-steel enclosure |
| Operating environment | −10 °C to 50 °C; storage −20 °C to 70 °C; 95% RH |
| Calibration | ISO 17025 accredited calibration with data included |
| Warranty | 1 year |
| Contrast | ADT151 swaps into 773 / 783 / 793 controllers; ADT161 is the standalone / external intelligent module — 158Ex is the 260Ex / 273Ex bottom-mount handheld module |
| Ordering models | 403 configurations (0.02% FS, 0.05% FS, 0.1% FS, BP; PSI / BAR; N / N2 / B / B2 / M / AF / AM) |
| Starting price | From $1,382 |
Documents
Build your part number
Configure your ADT158
Pick your options and we'll build the exact part number - 199 configurations match so far.
Select 3 more options to get your part number and price.
Ordering information
403 ordering models available - showing 100, use the filter to narrow down.
| Model | Description | List Price | |
|---|---|---|---|
| ADT158EX-02-CP100-BAR-B | Digital Pressure module, ADT158EX,0.02%FS, -1 to 7bar, Compound pressure, 1/4BSP M | $1,958.00 | |
| ADT158EX-02-CP100-BAR-B2 | Digital Pressure module, ADT158EX,0.02%FS, -1 to 7bar, Compound pressure, 1/2BSP M | $1,958.00 | |
| ADT158EX-02-CP100-BAR-M | Digital Pressure module, ADT158EX,0.02%FS, -1 to 7bar, Compound pressure, M20X1.5 M | $1,958.00 | |
| ADT158EX-02-CP100-BAR-N | Digital Pressure module, ADT158EX,0.02%FS, -1 to 7bar, Compound pressure, 1/4NPT M | $1,958.00 | |
| ADT158EX-02-CP100-BAR-N2 | Digital Pressure module, ADT158EX,0.02%FS, -1 to 7bar, Compound pressure, 1/2NPT M | $1,958.00 | |
| ADT158EX-02-CP100-PSI-B | Digital Pressure module, ADT158EX,0.02%FS, -15 to 100 psi, Compound pressure, 1/4BSP M | $1,958.00 | |
| ADT158EX-02-CP100-PSI-B2 | Digital Pressure module, ADT158EX,0.02%FS, -15 to 100 psi, Compound pressure, 1/2BSP M | $1,958.00 | |
| ADT158EX-02-CP100-PSI-M | Digital Pressure module, ADT158EX,0.02%FS, -15 to 100 psi, Compound pressure, M20X1.5 M | $1,958.00 | |
| ADT158EX-02-CP100-PSI-N | Digital Pressure module, ADT158EX,0.02%FS, -15 to 100 psi, Compound pressure, 1/4NPT M | $1,958.00 | |
| ADT158EX-02-CP100-PSI-N2 | Digital Pressure module, ADT158EX,0.02%FS, -15 to 100 psi, Compound pressure, 1/2NPT M | $1,958.00 | |
| ADT158EX-02-CP10-BAR-B | Digital Pressure module, ADT158EX,0.02%FS, -700 to 700 mbar, Compound pressure, 1/4BSP M | $1,958.00 | |
| ADT158EX-02-CP10-BAR-B2 | Digital Pressure module, ADT158EX,0.02%FS, -700 to 700 mbar, Compound pressure, 1/2BSP M | $1,958.00 | |
| ADT158EX-02-CP10-BAR-M | Digital Pressure module, ADT158EX,0.02%FS, -700 to 700 mbar, Compound pressure, M20X1.5 M | $1,958.00 | |
| ADT158EX-02-CP10-BAR-N | Digital Pressure module, ADT158EX,0.02%FS, -700 to 700 mbar, Compound pressure, 1/4NPT M | $1,958.00 | |
| ADT158EX-02-CP10-BAR-N2 | Digital Pressure module, ADT158EX,0.02%FS, -700 to 700 mbar, Compound pressure, 1/2NPT M | $1,958.00 | |
| ADT158EX-02-CP10K-BAR-B | Digital Pressure module, ADT158EX,0.02%FS, -1 to 700 bar, Compound pressure, 1/4BSP M | $2,081.00 | |
| ADT158EX-02-CP10K-BAR-B2 | Digital Pressure module, ADT158EX,0.02%FS, -1 to 700 bar, Compound pressure, 1/2BSP M | $2,081.00 | |
| ADT158EX-02-CP10K-BAR-M | Digital Pressure module, ADT158EX,0.02%FS, -1 to 700 bar, Compound pressure, M20X1.5 M | $2,081.00 | |
| ADT158EX-02-CP10K-BAR-N | Digital Pressure module, ADT158EX,0.02%FS, -1 to 700 bar, Compound pressure, 1/4NPT M | $2,081.00 | |
| ADT158EX-02-CP10K-BAR-N2 | Digital Pressure module, ADT158EX,0.02%FS, -1 to 700 bar, Compound pressure, 1/2NPT M | $2,081.00 | |
| ADT158EX-02-CP10K-PSI-B | Digital Pressure module, ADT158EX,0.02%FS, -15 to 10000 psi, Compound pressure, 1/4BSP M | $2,081.00 | |
| ADT158EX-02-CP10K-PSI-B2 | Digital Pressure module, ADT158EX,0.02%FS, -15 to 10000 psi, Compound pressure, 1/2BSP M | $2,081.00 | |
| ADT158EX-02-CP10K-PSI-M | Digital Pressure module, ADT158EX,0.02%FS, -15 to 10000 psi, Compound pressure, M20X1.5 M | $2,081.00 | |
| ADT158EX-02-CP10K-PSI-N | Digital Pressure module, ADT158EX,0.02%FS, -15 to 10000 psi, Compound pressure, 1/4NPT M | $2,081.00 | |
| ADT158EX-02-CP10K-PSI-N2 | Digital Pressure module, ADT158EX,0.02%FS, -15 to 10000 psi, Compound pressure, 1/2NPT M | $2,081.00 | |
| ADT158EX-02-CP10-PSI-B | Digital Pressure module, ADT158EX,0.02%FS, -10 to 10 psi, Compound pressure, 1/4BSP M | $1,958.00 | |
| ADT158EX-02-CP10-PSI-B2 | Digital Pressure module, ADT158EX,0.02%FS, -10 to 10 psi, Compound pressure, 1/2BSP M | $1,958.00 | |
| ADT158EX-02-CP10-PSI-M | Digital Pressure module, ADT158EX,0.02%FS, -10 to 10 psi, Compound pressure, M20X1.5 M | $1,958.00 | |
| ADT158EX-02-CP10-PSI-N | Digital Pressure module, ADT158EX,0.02%FS, -10 to 10 psi, Compound pressure, 1/4NPT M | $1,958.00 | |
| ADT158EX-02-CP10-PSI-N2 | Digital Pressure module, ADT158EX,0.02%FS, -10 to 10 psi, Compound pressure, 1/2NPT M | $1,958.00 | |
| ADT158EX-02-CP150-BAR-B | Digital Pressure module, ADT158EX,0.02%FS, -1 to 10 bar, Compound pressure, 1/4BSP M | $1,958.00 | |
| ADT158EX-02-CP150-BAR-B2 | Digital Pressure module, ADT158EX,0.02%FS, -1 to 10 bar, Compound pressure, 1/2BSP M | $1,958.00 | |
| ADT158EX-02-CP150-BAR-M | Digital Pressure module, ADT158EX,0.02%FS, -1 to 10 bar, Compound pressure, M20X1.5 M | $1,958.00 | |
| ADT158EX-02-CP150-BAR-N | Digital Pressure module, ADT158EX,0.02%FS, -1 to 10 bar, Compound pressure, 1/4NPT M | $1,958.00 | |
| ADT158EX-02-CP150-BAR-N2 | Digital Pressure module, ADT158EX,0.02%FS, -1 to 10 bar, Compound pressure, 1/2NPT M | $1,958.00 | |
| ADT158EX-02-CP150-PSI-B | Digital Pressure module, ADT158EX,0.02%FS, -15 to 150 psi, Compound pressure, 1/4BSP M | $1,958.00 | |
| ADT158EX-02-CP150-PSI-B2 | Digital Pressure module, ADT158EX,0.02%FS, -15 to 150 psi, Compound pressure, 1/2BSP M | $1,958.00 | |
| ADT158EX-02-CP150-PSI-M | Digital Pressure module, ADT158EX,0.02%FS, -15 to 150 psi, Compound pressure, M20X1.5 M | $1,958.00 | |
| ADT158EX-02-CP150-PSI-N | Digital Pressure module, ADT158EX,0.02%FS, -15 to 150 psi, Compound pressure, 1/4NPT M | $1,958.00 | |
| ADT158EX-02-CP150-PSI-N2 | Digital Pressure module, ADT158EX,0.02%FS, -15 to 150 psi, Compound pressure, 1/2NPT M | $1,958.00 | |
| ADT158EX-02-CP15-BAR-B | Digital Pressure module, ADT158EX,0.02%FS, -1 to 1 bar, Compound pressure, 1/4BSP M | $1,958.00 | |
| ADT158EX-02-CP15-BAR-B2 | Digital Pressure module, ADT158EX,0.02%FS, -1 to 1 bar, Compound pressure, 1/2BSP M | $1,958.00 | |
| ADT158EX-02-CP15-BAR-M | Digital Pressure module, ADT158EX,0.02%FS, -1 to 1 bar, Compound pressure, M20X1.5 M | $1,958.00 | |
| ADT158EX-02-CP15-BAR-N | Digital Pressure module, ADT158EX,0.02%FS, -1 to 1 bar, Compound pressure, 1/4NPT M | $1,958.00 | |
| ADT158EX-02-CP15-BAR-N2 | Digital Pressure module, ADT158EX,0.02%FS, -1 to 1 bar, Compound pressure, 1/2NPT M | $1,958.00 | |
| ADT158EX-02-CP15-PSI-B | Digital Pressure module, ADT158EX,0.02%FS, -15 to 15 psi, Compound pressure, 1/4BSP M | $1,958.00 | |
| ADT158EX-02-CP15-PSI-B2 | Digital Pressure module, ADT158EX,0.02%FS, -15 to 15 psi, Compound pressure, 1/2BSP M | $1,958.00 | |
| ADT158EX-02-CP15-PSI-M | Digital Pressure module, ADT158EX,0.02%FS, -15 to 15 psi, Compound pressure, M20X1.5 M | $1,958.00 | |
| ADT158EX-02-CP15-PSI-N | Digital Pressure module, ADT158EX,0.02%FS, -15 to 15 psi, Compound pressure, 1/4NPT M | $1,958.00 | |
| ADT158EX-02-CP15-PSI-N2 | Digital Pressure module, ADT158EX,0.02%FS, -15 to 15 psi, Compound pressure, 1/2NPT M | $1,958.00 | |
| ADT158EX-02-CP1K-BAR-B | Digital Pressure module, ADT158EX,0.02%FS, -1 to 70 bar, Compound pressure, 1/4BSP M | $1,958.00 | |
| ADT158EX-02-CP1K-BAR-B2 | Digital Pressure module, ADT158EX,0.02%FS, -1 to 70 bar, Compound pressure, 1/2BSP M | $1,958.00 | |
| ADT158EX-02-CP1K-BAR-M | Digital Pressure module, ADT158EX,0.02%FS, -1 to 70 bar, Compound pressure, M20X1.5 M | $1,958.00 | |
| ADT158EX-02-CP1K-BAR-N | Digital Pressure module, ADT158EX,0.02%FS, -1 to 70 bar, Compound pressure, 1/4NPT M | $1,958.00 | |
| ADT158EX-02-CP1K-BAR-N2 | Digital Pressure module, ADT158EX,0.02%FS, -1 to 70 bar, Compound pressure, 1/2NPT M | $1,958.00 | |
| ADT158EX-02-CP1K-PSI-B | Digital Pressure module, ADT158EX,0.02%FS, -15 to 1000 psi, Compound pressure, 1/4BSP M | $1,958.00 | |
| ADT158EX-02-CP1K-PSI-B2 | Digital Pressure module, ADT158EX,0.02%FS, -15 to 1000 psi, Compound pressure, 1/2BSP M | $1,958.00 | |
| ADT158EX-02-CP1K-PSI-M | Digital Pressure module, ADT158EX,0.02%FS, -15 to 1000 psi, Compound pressure, M20X1.5 M | $1,958.00 | |
| ADT158EX-02-CP1K-PSI-N | Digital Pressure module, ADT158EX,0.02%FS, -15 to 1000 psi, Compound pressure, 1/4NPT M | $1,958.00 | |
| ADT158EX-02-CP1K-PSI-N2 | Digital Pressure module, ADT158EX,0.02%FS, -15 to 1000 psi, Compound pressure, 1/2NPT M | $1,958.00 | |
| ADT158EX-02-CP2K-BAR-B | Digital Pressure module, ADT158EX,0.02%FS, -1 to 140 bar, Compound pressure, 1/4BSP M | $1,958.00 | |
| ADT158EX-02-CP2K-BAR-B2 | Digital Pressure module, ADT158EX,0.02%FS, -1 to 140 bar, Compound pressure, 1/2BSP M | $1,958.00 | |
| ADT158EX-02-CP2K-BAR-M | Digital Pressure module, ADT158EX,0.02%FS, -1 to 140 bar, Compound pressure, M20X1.5 M | $1,958.00 | |
| ADT158EX-02-CP2K-BAR-N | Digital Pressure module, ADT158EX,0.02%FS, -1 to 140 bar, Compound pressure, 1/4NPT M | $1,958.00 | |
| ADT158EX-02-CP2K-BAR-N2 | Digital Pressure module, ADT158EX,0.02%FS, -1 to 140 bar, Compound pressure, 1/2NPT M | $1,958.00 | |
| ADT158EX-02-CP2K-PSI-B | Digital Pressure module, ADT158EX,0.02%FS, -15 to 2000 psi, Compound pressure, 1/4BSP M | $1,958.00 | |
| ADT158EX-02-CP2K-PSI-B2 | Digital Pressure module, ADT158EX,0.02%FS, -15 to 2000 psi, Compound pressure, 1/2BSP M | $1,958.00 | |
| ADT158EX-02-CP2K-PSI-M | Digital Pressure module, ADT158EX,0.02%FS, -15 to 2000 psi, Compound pressure, M20X1.5 M | $1,958.00 | |
| ADT158EX-02-CP2K-PSI-N | Digital Pressure module, ADT158EX,0.02%FS, -15 to 2000 psi, Compound pressure, 1/4NPT M | $1,958.00 | |
| ADT158EX-02-CP2K-PSI-N2 | Digital Pressure module, ADT158EX,0.02%FS, -15 to 2000 psi, Compound pressure, 1/2NPT M | $1,958.00 | |
| ADT158EX-02-CP300-BAR-B | Digital Pressure module, ADT158EX,0.02%FS, -1 to 20 bar, Compound pressure, 1/4BSP M | $1,958.00 | |
| ADT158EX-02-CP300-BAR-B2 | Digital Pressure module, ADT158EX,0.02%FS, -1 to 20 bar, Compound pressure, 1/2BSP M | $1,958.00 | |
| ADT158EX-02-CP300-BAR-M | Digital Pressure module, ADT158EX,0.02%FS, -1 to 20 bar, Compound pressure, M20X1.5 M | $1,958.00 | |
| ADT158EX-02-CP300-BAR-N | Digital Pressure module, ADT158EX,0.02%FS, -1 to 20 bar, Compound pressure, 1/4NPT M | $1,958.00 | |
| ADT158EX-02-CP300-BAR-N2 | Digital Pressure module, ADT158EX,0.02%FS, -1 to 20 bar, Compound pressure, 1/2NPT M | $1,958.00 | |
| ADT158EX-02-CP300-PSI-B | Digital Pressure module, ADT158EX,0.02%FS, -15 to 300 psi, Compound pressure, 1/4BSP M | $1,958.00 | |
| ADT158EX-02-CP300-PSI-B2 | Digital Pressure module, ADT158EX,0.02%FS, -15 to 300 psi, Compound pressure, 1/2BSP M | $1,958.00 | |
| ADT158EX-02-CP300-PSI-M | Digital Pressure module, ADT158EX,0.02%FS, -15 to 300 psi, Compound pressure, M20X1.5 M | $1,958.00 | |
| ADT158EX-02-CP300-PSI-N | Digital Pressure module, ADT158EX,0.02%FS, -15 to 300 psi, Compound pressure, 1/4NPT M | $1,958.00 | |
| ADT158EX-02-CP300-PSI-N2 | Digital Pressure module, ADT158EX,0.02%FS, -15 to 300 psi, Compound pressure, 1/2NPT M | $1,958.00 | |
| ADT158EX-02-CP30-BAR-B | Digital Pressure module, ADT158EX,0.02%FS, -1 to 2 bar, Compound pressure, 1/4BSP M | $1,958.00 | |
| ADT158EX-02-CP30-BAR-B2 | Digital Pressure module, ADT158EX,0.02%FS, -1 to 2 bar, Compound pressure, 1/2BSP M | $1,958.00 | |
| ADT158EX-02-CP30-BAR-M | Digital Pressure module, ADT158EX,0.02%FS, -1 to 2 bar, Compound pressure, M20X1.5 M | $1,958.00 | |
| ADT158EX-02-CP30-BAR-N | Digital Pressure module, ADT158EX,0.02%FS, -1 to 2 bar, Compound pressure, 1/4NPT M | $1,958.00 | |
| ADT158EX-02-CP30-BAR-N2 | Digital Pressure module, ADT158EX,0.02%FS, -1 to 2 bar, Compound pressure, 1/2NPT M | $1,958.00 | |
| ADT158EX-02-CP30-PSI-B | Digital Pressure module, ADT158EX,0.02%FS, -15 to 30 psi, Compound pressure, 1/4BSP M | $1,958.00 | |
| ADT158EX-02-CP30-PSI-B2 | Digital Pressure module, ADT158EX,0.02%FS, -15 to 30 psi, Compound pressure, 1/2BSP M | $1,958.00 | |
| ADT158EX-02-CP30-PSI-M | Digital Pressure module, ADT158EX,0.02%FS, -15 to 30 psi, Compound pressure, M20X1.5 M | $1,958.00 | |
| ADT158EX-02-CP30-PSI-N | Digital Pressure module, ADT158EX,0.02%FS, -15 to 30 psi, Compound pressure, 1/4NPT M | $1,958.00 | |
| ADT158EX-02-CP30-PSI-N2 | Digital Pressure module, ADT158EX,0.02%FS, -15 to 30 psi, Compound pressure, 1/2NPT M | $1,958.00 | |
| ADT158EX-02-CP3K-BAR-B | Digital Pressure module, ADT158EX,0.02%FS, -1 to 200 bar, Compound pressure, 1/4BSP M | $1,958.00 | |
| ADT158EX-02-CP3K-BAR-B2 | Digital Pressure module, ADT158EX,0.02%FS, -1 to 200 bar, Compound pressure, 1/2BSP M | $1,958.00 | |
| ADT158EX-02-CP3K-BAR-M | Digital Pressure module, ADT158EX,0.02%FS, -1 to 200 bar, Compound pressure, M20X1.5 M | $1,958.00 | |
| ADT158EX-02-CP3K-BAR-N | Digital Pressure module, ADT158EX,0.02%FS, -1 to 200 bar, Compound pressure, 1/4NPT M | $1,958.00 | |
| ADT158EX-02-CP3K-BAR-N2 | Digital Pressure module, ADT158EX,0.02%FS, -1 to 200 bar, Compound pressure, 1/2NPT M | $1,958.00 | |
| ADT158EX-02-CP3K-PSI-B | Digital Pressure module, ADT158EX,0.02%FS, -15 to 3000 psi, Compound pressure, 1/4BSP M | $1,958.00 | |
| ADT158EX-02-CP3K-PSI-B2 | Digital Pressure module, ADT158EX,0.02%FS, -15 to 3000 psi, Compound pressure, 1/2BSP M | $1,958.00 | |
| ADT158EX-02-CP3K-PSI-M | Digital Pressure module, ADT158EX,0.02%FS, -15 to 3000 psi, Compound pressure, M20X1.5 M | $1,958.00 | |
| ADT158EX-02-CP3K-PSI-N | Digital Pressure module, ADT158EX,0.02%FS, -15 to 3000 psi, Compound pressure, 1/4NPT M | $1,958.00 | |
| ADT158EX-02-CP3K-PSI-N2 | Digital Pressure module, ADT158EX,0.02%FS, -15 to 3000 psi, Compound pressure, 1/2NPT M | $1,958.00 |
