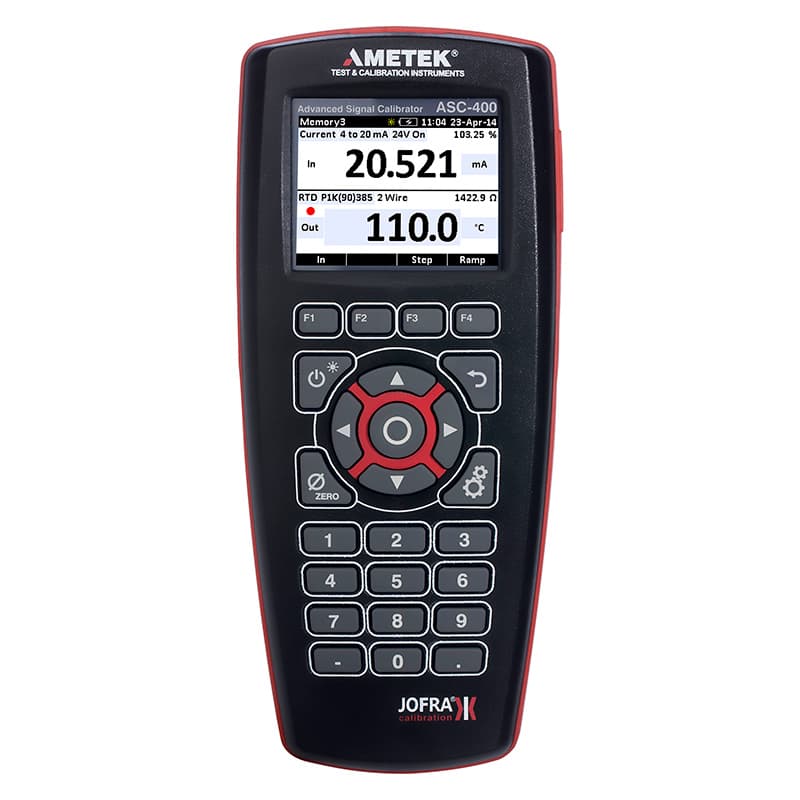

JOFRA ASC-400 Multifunction Process Calibrator
All-in-one multifunction process calibrator that reads and sources RTD, thermocouple, current, voltage, frequency, resistance, and pulse train. Full-color display, Connection Assistant, and True Ohm technology.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The ASC-400 Multifunction Process Calibrator is a versatile, state-of-the-art device that brings together all your essential calibration features into a single, easy-to-use tool. Designed for professionals who demand accuracy, efficiency, and convenience, the ASC-400 is perfect for calibrating many process parameters, including temperature, pressure, electrical signals, and more. Whether in the lab or out in the field, the ASC-400 ensures that you have the precision and reliability needed to perform critical calibration tasks confidently.
The ASC-400 features a large, easy-to-read full-color display and the Advanced Simplicity user interface so technicians can perform even complex calibration tasks quickly and efficiently. The innovative Connection Assistant provides detailed connection information for the current setup, simplifying the calibration process and reducing the risk of errors. True Ohm technology enables it to function as a high-accuracy thermometer when connected to an RTD.
The ASC-400 reads and sources RTD, thermocouple, current, voltage, frequency, resistance, and pulse train output. Combined with an APM CPF pressure module, it can calibrate gauge or absolute pressure. Paired with a dry-block calibrator, it can facilitate temperature calibration. Time-saving functions include % error calculation, scaling, leak testing, and switch calibration. A full numerical keypad with cursor and function keys allows quick data entry, and saved tasks can be recalled for both upper and lower windows. Fuseless protection safeguards the user and the device.
Official source: https://www.ametekcalibration.com/products/process/multifunction-process-calibrators/asc400-multifunction-process-calibrator
Specifications
| Functions | |
| Read and source | RTD, thermocouple, current, voltage, frequency, resistance, and pulse train output |
| Pressure | |
| With APM CPF | Calibrate gauge or absolute pressure |
| Temperature | |
| With dry-block | Temperature calibration; True Ohm high-accuracy thermometer when connected to an RTD |
| Interface | |
| Display | Large full-color display; Advanced Simplicity user interface; full numerical keypad |
| Features | |
| Productivity | % error calculation, scaling, leak testing, switch calibration, Connection Assistant, recall saved tasks |
| Safety | |
| Protection | Fuseless protection |
Documents
Ordering information
10 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| ASC400:acc:A | Extern Power Supply / Charger | $262.00 | |
| ASC400:acc:B | Rechargeable Battery pack & Charger | $378.00 | |
| ASC400:acc:C | Large Padded Softcase with shoulder strap | $231.00 | |
| ASC400:acc:T | Temperature Sensor Pt100 | $889.00 | |
| ASC400:acc:T2 | UHM9 Pt100 Probe, -40 to 150°C, System Calibration - Accredited Certificate - ISO17025* | $1,559.00 | |
| ASC400:acc:T3 | STS050 Probe, -45 to 400°C, System Calibration - Accredited Certificate - ISO17025* | $2,016.00 | |
| ASC400:baro:BARO | Barometric module to absolute pressure mode | $1,002.00 | |
| ASC400:base:ASC | Advanced Signal Calibrator | $3,920.00 | |
| ASC400:cert:H | Accredited Certificate - ISO17025 | Request a quote | |
| ASC400:version:400 | Multi-function Signal Calibrator with standard accessories | Request a quote |
