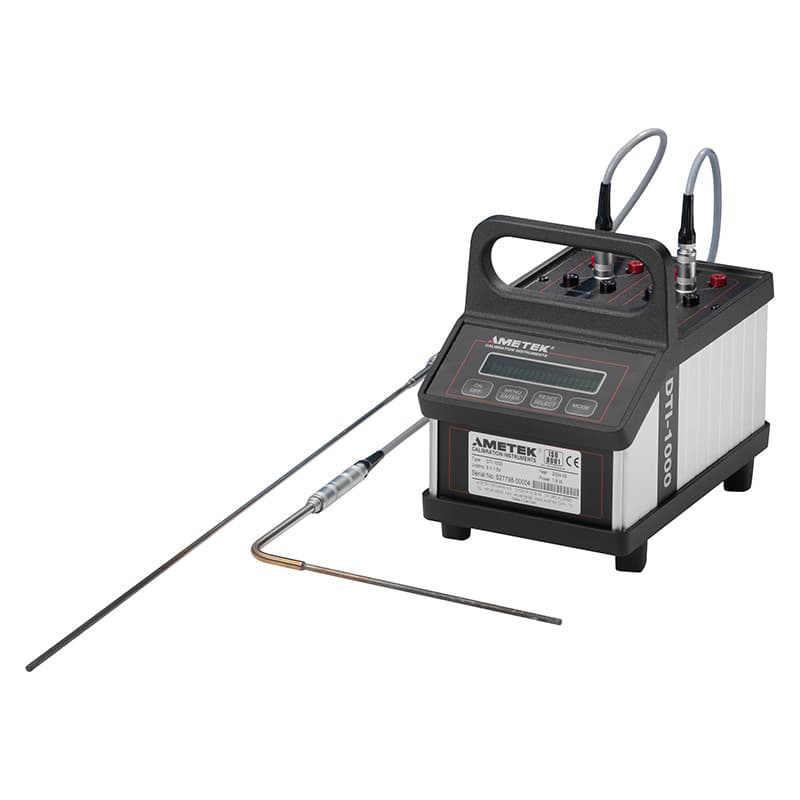

JOFRA DTI-1000 Digital Temperature Indicator
High-accuracy digital temperature indicator with ±0.004°C one-year accuracy, dual-channel inputs, and a −200 to 750°C range. Recommended reference thermometer for liquid baths and dry-block calibrators.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The DTI-1000 digital temperature indicator is an industry-leading instrument designed to provide precise and traceable temperature measurements. It is the recommended reference thermometer for verifying the true temperature of any temperature calibrator, whether a liquid bath or dry-block calibrator. With a legacy of reliable, low-drift calibration tools, this digital temperature indicator is the working standard in numerous national laboratories around the world. It is ideally suited for custody transfer applications where high accuracy and dependability are paramount.
The DTI-1000 boasts a one-year accuracy of ±0.004°C. When paired with STS Series temperature sensors, the system accuracy improves to ±0.03°C. The operating range is −200 to 750°C (−328 to 1382°F), with resolution of up to 0.001°C.
Dual-channel inputs enable simultaneous monitoring of two temperature points, with a differential measurement option to compare temperatures directly. A wide selection of temperature sensors is supported, including straight, 90-degree, and cabled options. True Ohm Measurement technology eliminates Electromotive Force (EMF) interference in cables, sockets, and sensors.
Official source: https://www.ametekcalibration.com/products/temperature/temperature-indicators/dti-1000-digital-temperature-indicator
Specifications
| Accuracy | |
| One-year | ±0.004°C |
| System with STS | ±0.03°C |
| Range | |
| Temperature | −200 to 750°C (−328 to 1382°F) |
| Resolution | |
| Maximum | 0.001°C |
| Inputs | |
| Channels | Dual-channel inputs with differential measurement option |
| Sensors | |
| Options | Straight, 90-degree, and cabled; True Ohm Measurement eliminates EMF |
Documents
Ordering information
6 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| DTI1000:base:DTI | Handheld Reference Digital Reference Indicator with standard accessories | Request a quote | |
| DTI1000:cert:H | Accredited Certificate - ISO17025 | Request a quote | |
| DTI1000:opt:60V991 | Cable for RS232, length 2 meter | $72.00 | |
| DTI1000:options:C | Carrying Case | $1,061.00 | |
| DTI1000:version:1000A | DTI-1000 A, -200 to 750°C / -328 to 1382°F, Pt25 and Pt100 | $5,595.00 | |
| DTI1000:version:1000B | DTI-1000 B, -200 to 750°C / -328 to 1382°F, only Pt25 | $5,595.00 |
