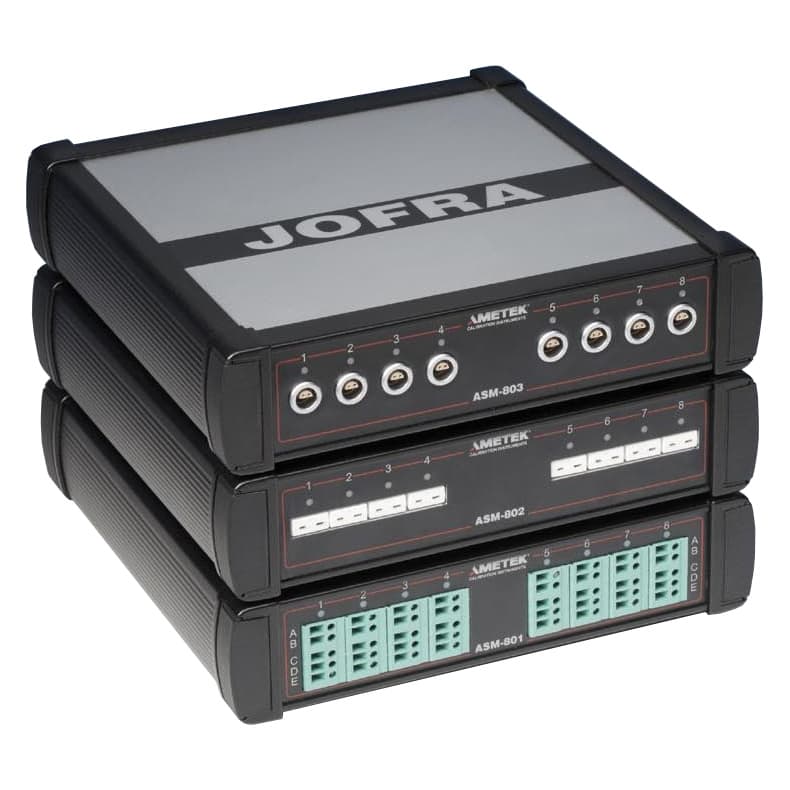

JOFRA ASM Advanced Signal Multi-scanner
Eight-channel advanced process multi-scanner for automated calibration of multiple pressure and temperature sensors. Stack up to three units to calibrate 24 sensors at once.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Advanced Process Multi-Scanner (ASM) is an innovative solution designed to simultaneously streamline the calibration of multiple pressure and temperature sensors. Each unit is an eight-channel scanner managed by JofraCal software on a PC. It is ideal for use in industrial environments where precision and efficiency are paramount.
The ASM can handle signals from 2-, 3-, and 4-wire RTDs, thermocouples (TCs), transmitters, thermistors, and temperature and voltage switches. Each ASM unit has eight input channels. For larger setups, up to three ASM units can be stacked together, enabling the calibration of up to 24 sensors concurrently.
The ASM can be combined with any JofraCal compatible pressure calibrator, dry-block or liquid calibrators, DTI reference thermometers, and ASC multifunction process calibrators. True Ohm technology eliminates electromotive force (EMF) interference from cables, sockets, and sensors. Automatic calibration procedures reduce the potential for human error. One input channel can be dedicated to a reference sensor with an accuracy of 0.026°C.
Two model types are available: 'A' models with a separate measuring unit as the standard, and 'B' models with built-in measurement capabilities. Combined with JofraCal or JofraLog software, the ASM provides setup, execution, printing, and saving of traceable calibration data, and can data-log up to 24 sensors simultaneously.
Official source: https://www.ametekcalibration.com/products/process/multi-scanners/asm-series-multi-scanner
Specifications
| Channels | |
| Per unit | 8 input channels |
| Stacked | Up to 3 units / 24 sensors simultaneously |
| Inputs | |
| Sensor types | 2-, 3-, and 4-wire RTDs, thermocouples, transmitters, thermistors, temperature and voltage switches |
| Accuracy | |
| Reference channel | Dedicate one input to a reference sensor with accuracy of 0.026°C |
| Technology | |
| True Ohm | Eliminates EMF interference from cables, sockets, and sensors |
| Models | |
| A / B | 'A' models use a separate measuring unit; 'B' models have built-in measurement capabilities |
| Software | |
| Control | JofraCal and JofraLog; data-log up to 24 sensors |
Documents
Ordering information
11 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| ASM:base:ASM | Advanced Signal Scanner with standard accessories | Request a quote | |
| ASM:cert:F | Traceable Certificate to International Standards | Request a quote | |
| ASM:cert:H | Accredited Certificate - ISO17025 | $864.00 | |
| ASM:opt:60E151 | 1 meter, 4 Core cable with shield for Pt100 | $19.00 | |
| ASM:options:C | Carrying Case | $713.00 | |
| ASM:version:801A | ASM-801 A with 8 universal screw plugs and no built-in measuring circuit | $3,660.00 | |
| ASM:version:801B | ASM-801 B with 8 universal screw plugs including built-in measuring circuit | $5,688.00 | |
| ASM:version:802A | ASM-802 A with 8 TC plugs and no built-in measuring circuit | $3,866.00 | |
| ASM:version:802B | ASM-802 B with 8 TC plugs including built-in measuring circuit | $5,877.00 | |
| ASM:version:803A | ASM-803 A with 8 LEMO plugs and no built-in measuring circuit | $4,048.00 | |
| ASM:version:803B | ASM-803 B with 8 LEMO plugs including built-in measuring circuit | $6,068.00 |
