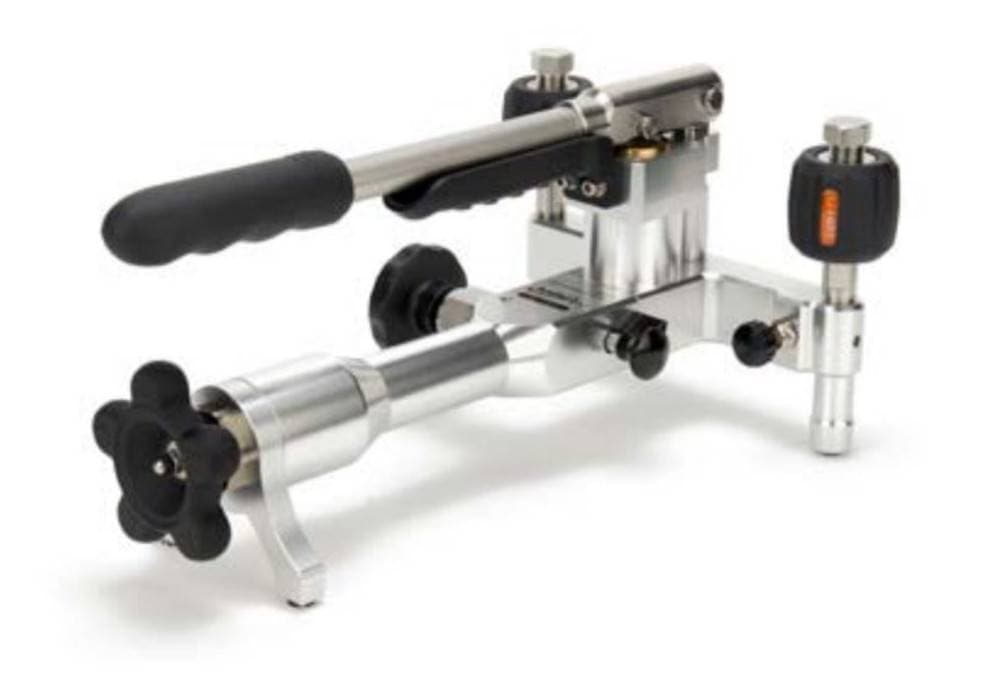

Additel 918 Pneumatic Pressure Test Pump
Hand-operated pneumatic comparison test pump, 95% vacuum to 1,500 psi (100 bar). 5.7 lb, 10 Pa screw-press fine adjust, shut-off valve, built-in gas-liquid isolator, two hand-tight quick connectors. Pumps from $4,117.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Additel 918 is a hand-operated pneumatic comparison test pump for generating 95% vacuum to 1,500 psi (100 bar). A high-quality screw press provides fine pressure adjustment to 0.001 psi (10 Pa / 0.1 mbar). A specially designed shut-off valve holds the pressure as stable as possible during calibration. A built-in gas-liquid isolator protects the pump from moisture and dirt so maintenance stays minimal. The 918 can be special ordered to comply with oxygen-free applications.
Two hand-tight quick connectors take the reference gauge and the device under test — no PTFE tape or wrenches. Port choices are 1/4 NPT, 1/2 NPT, 1/4 BSP, 1/2 BSP, or M20×1.5 female. The pump weighs 5.7 lb (2.6 kg) and uses air as the media. SET models add the 9904-918 carrying case for one 918 pump and two gauges. Twenty O-rings are included.
Compared with the Additel 917 (pneumatic, 95% vacuum to 1,000 psi / 70 bar, 5.7 lb) the 918 is the next pneumatic step on the same portable chassis. The Additel 920 is the high-pressure pneumatic pump — 95% vacuum to 3,000 psi (200 bar). This page is the 918 family only; there is no 918HV variant.
Pumps from $4,117. SET models from $4,642. A maintenance kit (ADT918-MK) is listed with the variants.
Specifications
| Pressure | |
| Generated range | 95% vacuum to 1,500 psi (100 bar) positive pressure |
| Media | Air |
| Adjustment resolution | 0.001 psi (10 Pa, 0.1 mbar) via high-quality screw press |
| Stability | Shut-off valve holds pressure as stable as possible during calibration |
| Piston volume | 1.6 in³ (27 ml) |
| Connections | |
| Quick connectors | Two hand-tight connectors for reference and test gauge — no PTFE tape or wrenches |
| Port types | 1/4 NPT, 1/2 NPT, 1/4 BSP, 1/2 BSP, or M20×1.5 female |
| General | |
| Weight | 5.7 lb (2.6 kg) |
| Dimensions | Height 5.5 in (140 mm); base 12.4 × 7.8 in (315 × 198 mm) |
| Materials | Ram/adapters SS; body SS and aluminum; seals Buna-N, FTM, PTFE, copper alloy |
| Included | 20 O-rings. SET models add 9904-918 carrying case for one pump and two gauges |
| Oxygen-free | Can be special ordered to comply with oxygen-free applications |
| Models | ADT918 port options N / N2 / B / B2 / M; optional -SET carrying case; ADT918-MK maintenance kit. No 918HV |
| Warranty | 1 year |
| Family | |
| vs Additel 917 | 917 is the lower-range pneumatic: 95% vacuum to 1,000 psi (70 bar). Same 5.7 lb portable form |
| vs Additel 920 | 920 is the high-pressure pneumatic pump: 95% vacuum to 3,000 psi (200 bar) |
| General | |
| Starting price | Pumps from $4,117; SET models from $4,642 |
Documents
Ordering information
11 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| ADT918-B | Pneumatic Pressure Test Generator, -14 to 1500psi (-0.95~100)bar, 1/4BSP F | $4,117.00 | |
| ADT918-B2 | Pneumatic Pressure Test Generator, -14 to 1500psi (-0.95~100)bar, 1/2BSP F | $4,117.00 | |
| ADT918-B2-SET | Pneumatic Pressure Test Generator, -14 to 1500psi (-0.95~100)bar, 1/2BSP F with carrying case | $4,642.00 | |
| ADT918-B-SET | Pneumatic Pressure Test Generator, -14 to 1500psi (-0.95~100)bar, 1/4BSP F with carrying case | $4,642.00 | |
| ADT918-M | Pneumatic Pressure Test Generator, -14 to 1500psi (-0.95~100)bar,M20X1.5 F | $4,117.00 | |
| ADT918-MK | Maintenance kit for ADT918 Generator | $111.00 | |
| ADT918-M-SET | Pneumatic Pressure Test Generator, -14 to 1500psi (-0.95~100)bar,M20X1.5 F with carrying case | $4,642.00 | |
| ADT918-N | Pneumatic Pressure Test Generator, -14 to 1500psi (-0.95~100)bar,1/4NPT F | $4,117.00 | |
| ADT918-N2 | Pneumatic Pressure Test Generator, -14 to 1500psi (-0.95~100)bar,1/2NPT F | $4,117.00 | |
| ADT918-N2-SET | Pneumatic Pressure Test Generator, -14 to 1500psi (-0.95~100)bar,1/2NPT F with carrying case | $4,642.00 | |
| ADT918-N-SET | Pneumatic Pressure Test Generator, -14 to 1500psi (-0.95~100)bar,1/4NPT F with carrying case | $4,642.00 |
