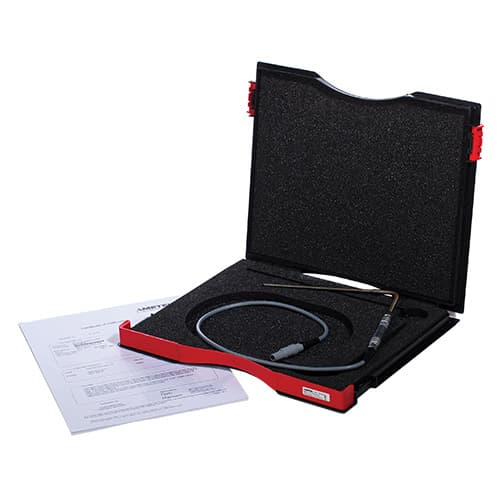

JOFRA STS-200 Reference Sensor
Pt100 reference probe for dry-block calibrators, including 90° angled versions. Official STS-200 type ranges extend from −100°C up to 700°C depending on type.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The STS Reference Sensors are Pt100 reference probes used as the reference instrument to verify true temperature in any type of hand-held, liquid bath, or dry-block calibrator. Official AMETEK series features include fast response times, low immersion depths, compact sizes, specified low drift even at high temperatures, 90° angled probes to make room for sensors under test, a long-term burn-in procedure up to 650°C, and accredited certificates up to 650°C as standard delivery.
STS-200 is listed on the official AMETEK STS Reference Sensors product page (STS200 all). The official STS-200 user manual states the sensors can be used for measuring temperatures in the following type ranges: −65 to 160°C (915/916); −100 to 155°C (917); −65 to 180°C (918); −65 to 165°C (919); 0 to 250°C (925); 0 to 700°C (970). The official STS selection guide pairs STS-200 angled sensors with RTC calibrators.
Official sources: https://www.ametekcalibration.com/products/temperature/reference-temperature-sensors/sts-reference-sensors and the official STS-200 user manual.
Specifications
| Sensor | |
| Type | Pt100 reference probe; 90° angled versions available |
| Range | |
| Types 915/916 | −65 to 160°C (−85 to 320°F) |
| Type 917 | −100 to 155°C (−148 to 311°F) |
| Type 970 | 0 to 700°C (32 to 1292°F) |
| System | |
| With RTC (series) | ±0.04°C system accuracy (official AMETEK STS page) |
Documents
Ordering information
25 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| STS200:cable:A | Cable 0.5 m (1.6 ft.) with LEMO / LEMO connectors | Request a quote | |
| STS200:cable:B | Cable 2 m (6.6 ft.) with LEMO / LEMO connectors | Request a quote | |
| STS200:cable:C | Cable 2 m (6.6 ft.) with LEMO / Banana connectors | Request a quote | |
| STS200:cable:D | Cable 2 m (6.6 ft.) with LEMO / Redel connector for DTI050 | Request a quote | |
| STS200:cable:E | Cable 0.5 m (1.6 ft.) with LEMO / Redel connector for Calibrator | Request a quote | |
| STS200:cable:F | Cable 0.5 m (1.6 ft.) with LEMO / Redel connector for CTC652 | Request a quote | |
| STS200:cert:H | Accredited Certificate - ISO17025 | Request a quote | |
| STS200:cert:I | No Certificate - Annealed only * | Request a quote | |
| STS200:diameter-of-the-probe:A | Overall diameter 4 mm (0.16 in) | $2,252.00 | |
| STS200:diameter-of-the-probe:B | Overall diameter 6.35 mm (0.25 in) | $2,634.00 | |
| STS200:opt:65-F100 | Insulation in Tube, 100 mm x Ø25 mm | $49.00 | |
| STS200:opt:65-F101 | Insulation in Tube, 150 mm x Ø25 mm | $65.00 | |
| STS200:opt:65-F102 | Insulation in Tube, 200 mm x Ø25 mm | $80.00 | |
| STS200:opt:65-F103 | Insulation in Tube, 250 mm x Ø25 mm | $104.00 | |
| STS200:opt:65-F104 | Insulation in Tube, 300 mm x Ø25 mm | $117.00 | |
| STS200:opt:65-F105 | Insulation in Tube, 350 mm x Ø25 mm | $172.00 | |
| STS200:opt:65-F106 | Insulation in Tube, 400 mm x Ø25 mm | $117.00 | |
| STS200:opt:65-F107 | Insulation in Tube, 450 mm x Ø25 mm | $203.00 | |
| STS200:shape-and-lenght:915 | 90° Angled probe, | Request a quote | |
| STS200:type-915-is-for-rtc-156-:916 | 90° Angled probe, | Request a quote | |
| STS200:type-916-is-for-rtc-158-:917 | 90° Angled probe, | Request a quote | |
| STS200:type-917-is-for-rtc-159-:918 | 90° Angled probe, | Request a quote | |
| STS200:type-918-is-for-rtc-187-:919 | 90° Angled probe, | Request a quote | |
| STS200:type-919-is-for-rtc-168-:925 | 90° Angled probe, | Request a quote | |
| STS200:type-925-is-for-rtc-250-:970 | 90° Angled probe, | Request a quote |
