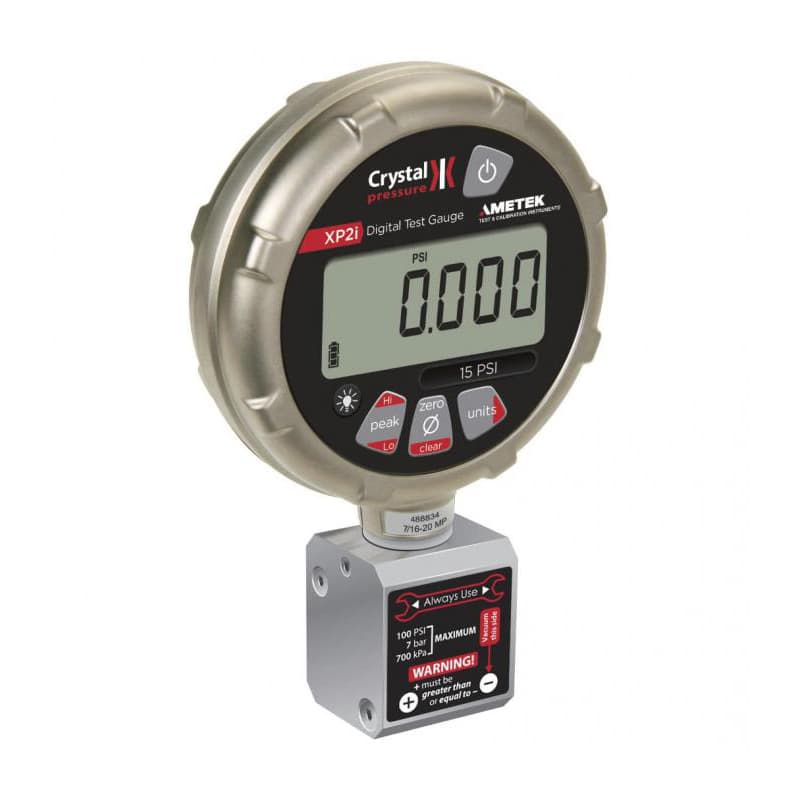

Crystal XP2i-DP Differential Pressure Gauge
Intrinsically safe Crystal wet/wet differential test gauge with 0.1% of reading accuracy, a marine-grade enclosure, and an optional DataLoggerXP upgrade for 32,000 points.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Crystal XP2i-DP is an ultra-rugged wet/wet differential pressure gauge. Official AMETEK copy: this intrinsically safe gauge delivers 0.1% of reading accuracy and is designed for demanding applications, including long-term vacuum measurement.
Official datasheet (psi): 0 to 20% of range is ±(0.02% of full scale + static line effect) and 20 to 110% is ±(0.1% of reading + static line effect). Static line effect is 0.0003 psi/psi of the lowest static pressure. Figures include linearity, hysteresis, repeatability, temperature, and one-year stability. Maximum static line pressure is 100 psi. Operating temperature is −10 to 50°C with no change in accuracy after zeroing.
The wet/wet transducer uses 300-series stainless steel and buna-n wetted materials. Connection is 1/8 in female NPT. The marine-grade diecast enclosure is IP67. Optional DataLoggerXP records up to 32,000 measurements, with an ultra-low-power mode. ConFigXP (free) customizes units and features. FastCalXP is the official calibration-software option. Each gauge ships with an ISO 17025 accredited, NIST-traceable calibration certificate. Crystal Engineering calibration facilities are A2LA accredited.
Specifications
| Pressure | |
| Accuracy | 0–20% of range ±(0.02% FS + static line); 20–110% ±(0.1% of reading + static line); 1-year, includes temperature |
| Static line effect | 0.0003 psi/psi of lowest static pressure; max static line 100 psi |
| Measurement | Wet/wet differential; long-term vacuum measurement (official page + datasheet) |
| Environment | |
| Operating temperature | −10 to 50°C (14 to 122°F); no change in accuracy after zero |
| Connection | |
| Port | 1/8 in female NPT; 300-series stainless steel and buna-n wetted parts |
| Enclosure | |
| Housing | Marine-grade diecast aluminum; IP67; panel-mount or portable |
| Options | |
| Firmware / software | DataLoggerXP (32,000 points, ULP); ConFigXP; FastCalXP; PSV mode |
| Safety | |
| Approvals / cal | Intrinsically safe; ISO 17025 / NIST-traceable certificate (official datasheet) |
| General | |
| Sources | ametekcalibration.com XP2i-DP page + official psi datasheet differential-pressure-gauge-xp2i-dp-psi-data-sheet-us.pdf |
Documents
Build your part number
Configure your XP2I-DP
Pick your options and we'll build the exact part number with a list-price estimate.
Select a pressure range to build your part number.
Prices come from the current Crystal price list. Pump systems are not available on XP2i-DP. Shipping and tax are confirmed when we review your order.
Ordering information
10 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| 3963 | Panel Mount Flange, Used with -RP Rear Port Gauges | $112.00 | |
| XP2i-DP:100KPA | 100KPA Differential Pressure/Vacuum Gauge | $3,974.00 | |
| XP2i-DP:100PSI | 100PSI Differential Pressure/Vacuum Gauge | $3,974.00 | |
| XP2i-DP:15PSI | 15PSI Differential Pressure/Vacuum Gauge | $3,974.00 | |
| XP2i-DP:1BAR | 1BAR Differential Pressure/Vacuum Gauge | $3,974.00 | |
| XP2i-DP:700KPA | 700KPA Differential Pressure/Vacuum Gauge | $3,974.00 | |
| XP2i-DP:7BAR | 7BAR Differential Pressure/Vacuum Gauge | $3,974.00 | |
| XP2i-DP:DL | DataLoggerXP | $990.00 | |
| XP2i-DP:F4 | Rear Pressure Port & Panel Mount Flange | $286.00 | |
| XP2i-DP:RP | Back / Rear Pressure Port | $206.00 |
