Crystal FastCalXP
Crystal gauge and transmitter calibration software. Completes a 10-point up-and-down calibration in less than 3 minutes, including the certificate. Official hosts: nVision, XP2i, and 30 Series.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview

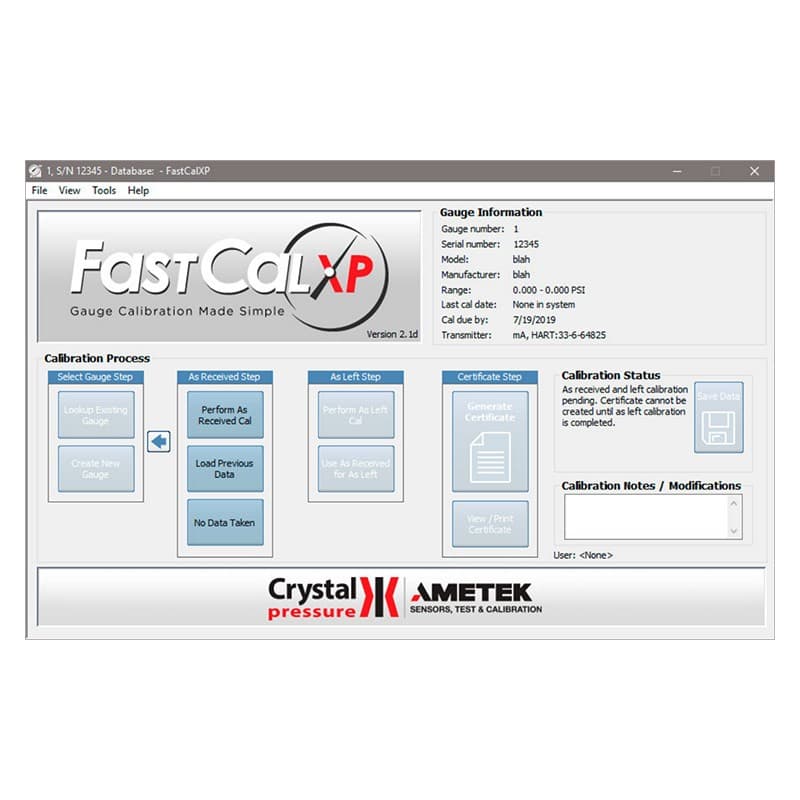

FastCalXP is Crystal / AMETEK pressure calibration software. Official AMETEK copy: it lets you complete a 10-point up and down calibration in less than 3 minutes, including printing a calibration certificate, and frees you from manually recording and interpolating gauge readings.

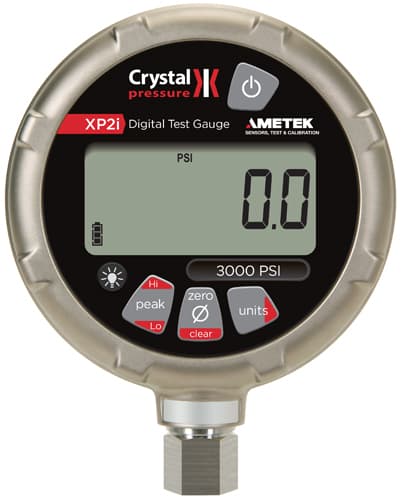

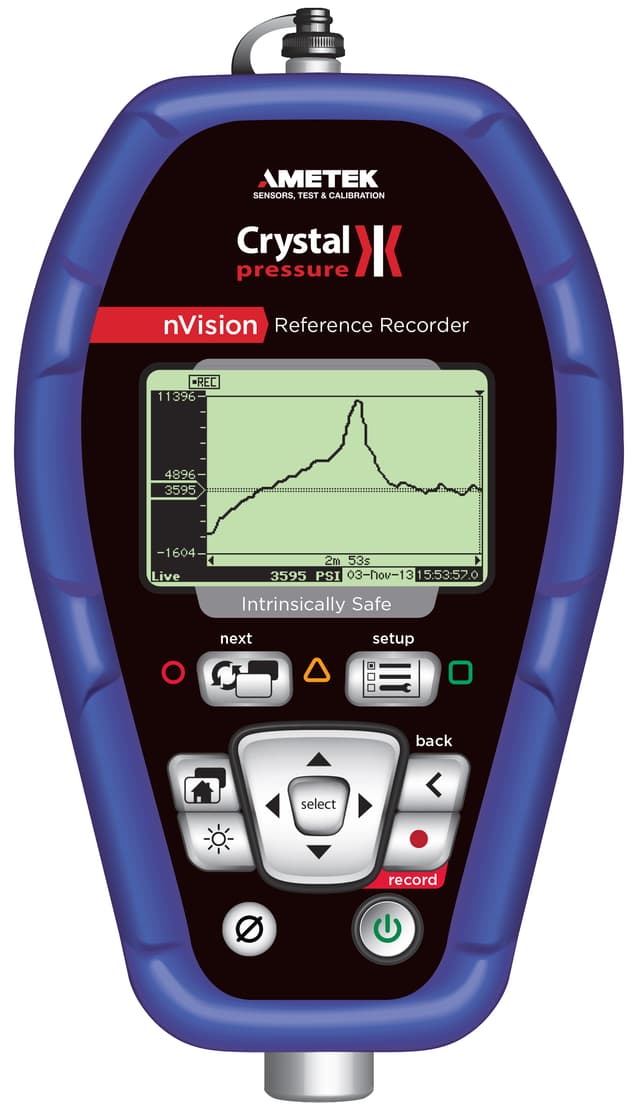

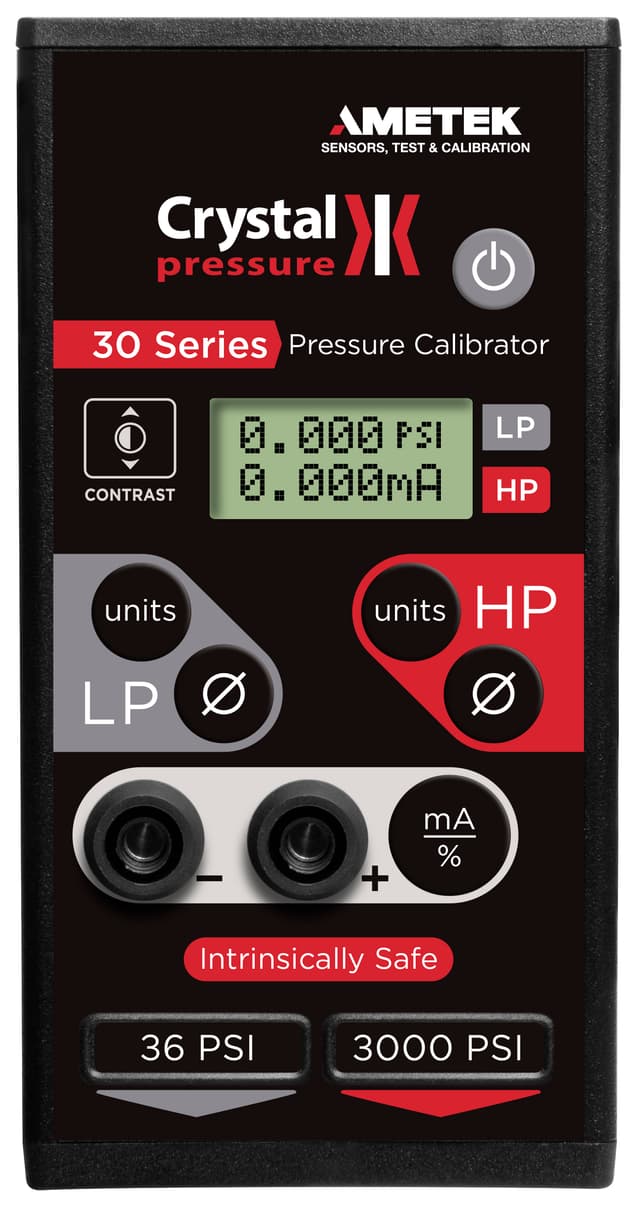

The software stores all pressure-calibration data in a single database, automatically detects Crystal Engineering digital reference gauges and stores their pressure readings, generates and stores pressure test profiles, and uses flexible templates for certificates. The official product page lists compatible AMETEK products as nVision, XP2i, and 30 Series. It is not compatible with S2, S5, C2, or C5 gauges.
The official manual states FastCalXP was designed for Crystal Engineering products as the reference standards (currently nVision, XP2i / XP2, and 30 Series calibrators) and the GaugeCalHP pressure comparator for generation and control. A USB authorization key must stay plugged in while FastCalXP runs. System requirements on the official page: Windows Vista SP2, 7 SP1, 8.1, or 10. Microsoft Excel (or Office) 2003 or later is recommended to modify or view certificates. A fully functional 30-day trial (2.1d) is offered from the official product page.
Specifications
| Software | |
| What it does | 10-point up and down gauge/transmitter calibration in < 3 minutes, including certificate |
| Hosts | |
| Compatible references | Crystal nVision, XP2i, and 30 Series (official page). Not S2, S5, C2, or C5 |
| Generation | |
| Comparator | GaugeCalHP (official manual) for pressure generation and control |
| OS | |
| System requirements | Windows Vista SP2, 7 SP1, 8.1, or 10; USB authorization key required while running |
| Certificates | |
| Templates | Flexible certificate templates; Excel / Office 2003 or later recommended |
| Data | |
| Database | Single database for gauges, profiles, as-found/as-left data, and certificates |
| Accessories | |
| Catalog options | USB license key (FASTCALXP); USB footswitch 5354; HART modem 3716 |
| General | |
| Sources | AMETEK FastCalXP product page + official manual pressure-calibration-software-fastcalxp-manual-us.pdf |
Documents
Ordering information
3 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| FastCalXP:3716 | One-way Hart Modem Communicator for FastCalXP | $1,330.00 | |
| FastCalXP:5354 | USB Footswitch for FastCalXP | $621.00 | |
| FastCalXP:FASTCALXP | Gauge and Transmitter Calibration Software | $2,379.00 |
