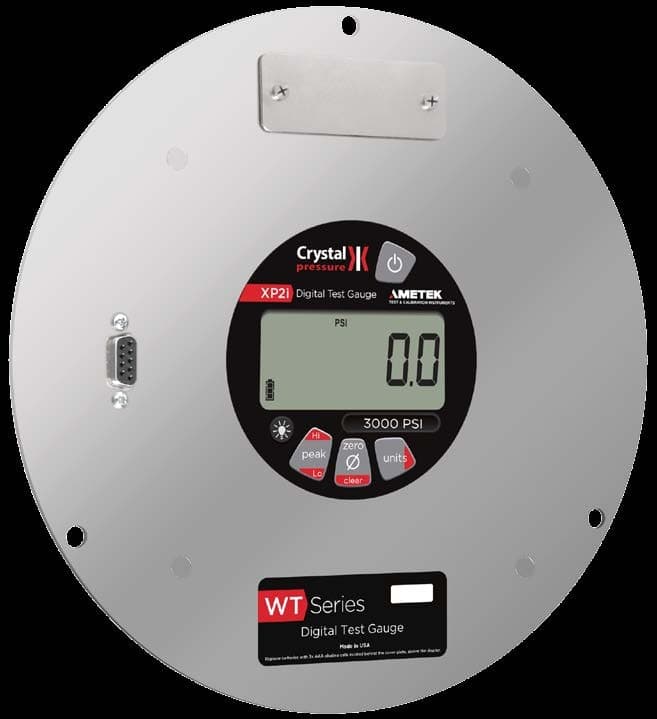

Crystal WT Pressure Gauge
Panel-mount Crystal digital test gauge — the WT version of the XP2i — built as a drop-in Wally Box replacement. 0.1% of reading accuracy, front-accessible batteries and RS-232, and 6 in / 8.5 in panel options for portable test sets.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Crystal WT Series is the panel-mount version of the XP2i digital test gauge. Official AMETEK copy: it is designed to replicate the dimensions and pressure connections of the most common test gauges mounted in portable cases, and is a drop-in replacement for a Wally Box pressure gauge.
Accuracy is 0.1% of reading (20 to 100% of full scale ±0.1% of reading; 0 to 20% ±0.02% of full scale), including linearity, hysteresis, repeatability, temperature, and one-year stability. Vacuum on 300 psi / 20 bar / 2000 kPa and lower is ±0.25% of full scale, where full scale is −14.5 psig. The gauge is fully temperature compensated from −10 to 50°C — no change in accuracy over the operating range after zeroing.
Batteries (3× AAA, 500 hours typical) and the environmentally sealed DB-9 RS-232 port are accessible from the front of the panel, so you do not have to pull the gauge to change cells or connect a cable. Choose the 6 in (−1000 / 8.7 in bolt center) or 8.5 in (−1500 / 10.125 in bolt center) panel. The pressure connection is 1/8 in female NPT. Optional DataLoggerXP records up to 32,000 measurements; ConfigXP customizes units and features. The enclosure is rugged aluminum alloy with a gasket against dust and water. The WT Series is not certified for use in hazardous locations.
Specifications
| Pressure | |
| Accuracy | 20–100% FS ±(0.1% of reading); 0–20% ±(0.02% FS); 1-year, includes temperature |
| Vacuum | ±(0.25% FS) on 300 psi / 20 bar / 2000 kPa and lower; FS = −14.5 psig |
| Ranges | 15 psi to 10,000 psi / 1 bar to 700 bar (absolute on 2,000 psi and higher) |
| Environment | |
| Operating temperature | −10 to 50°C (14 to 122°F); no change in accuracy after zero |
| Connection | |
| Pressure / comms | 1/8 in female NPT; environmentally sealed DB-9 RS-232 |
| Display | |
| Screen | 5.5 digits, 16.9 mm; 4 readings/s (8/s PSV mode); sunlight-readable backlight |
| Power | |
| Batteries | 3× AAA alkaline; 500 hours typical; front-access cover |
| Enclosure | |
| Panel / housing | 6 in (−1000) or 8.5 in (−1500) panel; aluminum alloy, gasket-sealed |
| Options | |
| Firmware | DataLoggerXP (−DL, 32,000 points); dual-line display (−DD); ConfigXP customization |
| Safety | |
| Hazardous locations | Not certified for hazardous locations |
| General | |
| Sources | AMETEK WT Series product page + official manual digital-pressure-gauge-wt-manual-us.pdf |
Documents
Build your part number
Configure your WT
Pick your options and we'll build the exact part number with a list-price estimate.
Select a pressure range to build your part number.
Prices come from the current Crystal price list. WT is not CE marked and is not for sale in the EU. Shipping and tax are confirmed when we review your order.
Ordering information
36 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| WT:1000 | For 6 Inch Dial Size Panel Mount | Request a quote | |
| WT:1500 | For 8 1/2 Inch Dial Size Panel Mount | Request a quote | |
| WT:DD | Dual Line Display | $378.00 | |
| WT:DL | DataLoggerXP | $990.00 | |
| WT:WT | WT Pressure Gauge | Request a quote | |
| WT:WT100KPA | 100 kPa Gauge | $2,025.00 | |
| WT:WT100PSI | 100 psi Gauge | $2,025.00 | |
| WT:WT10KPSI | 10K psi Gauge | $2,107.00 | |
| WT:WT140BAR | 140 bar Gauge | $2,025.00 | |
| WT:WT14KKPA | 14000 kPa Gauge | $2,025.00 | |
| WT:WT15PSI | 15 psi Gauge | $2,025.00 | |
| WT:WT1BAR | 1 bar Gauge | $2,025.00 | |
| WT:WT1KPSI | 1K psi Gauge | $2,025.00 | |
| WT:WT200BAR | 200 bar Gauge | $2,025.00 | |
| WT:WT200KPA | 200 kPa Gauge | $2,025.00 | |
| WT:WT20BAR | 20 bar Gauge | $2,025.00 | |
| WT:WT20KKPA | 20000 kPa Gauge | $2,025.00 | |
| WT:WT2BAR | 2 bar Gauge | $2,025.00 | |
| WT:WT2KKPA | 2000 kPa Gauge | $2,025.00 | |
| WT:WT2KPSI | 2K psi Gauge | $2,025.00 | |
| WT:WT300BAR | 300 bar Gauge | $2,025.00 | |
| WT:WT300PSI | 300 psi Gauge | $2,025.00 | |
| WT:WT30BAR | 30 bar Gauge | $2,025.00 | |
| WT:WT30KKPA | 30000 kPa Gauge | $2,025.00 | |
| WT:WT30PSI | 30 psi Gauge | $2,025.00 | |
| WT:WT3KKPA | 3000 kPa Gauge | $2,025.00 | |
| WT:WT3KPSI | 3K psi Gauge | $2,025.00 | |
| WT:WT500PSI | 500 psi Gauge | $2,025.00 | |
| WT:WT5KPSI | 5K psi Gauge | $2,025.00 | |
| WT:WT700BAR | 700 bar Gauge | $2,107.00 | |
| WT:WT700KPA | 700 kPa Gauge | $2,025.00 | |
| WT:WT70BAR | 70 bar Gauge | $2,025.00 | |
| WT:WT70KKPA | 70000 kPa Gauge | $2,107.00 | |
| WT:WT7BAR | 7 bar Gauge | $2,025.00 | |
| WT:WT7KKPA | 7000 kPa Gauge | $2,025.00 | |
| WT:XXX | See Pressure Range section for price and correct ordering code | Request a quote |
