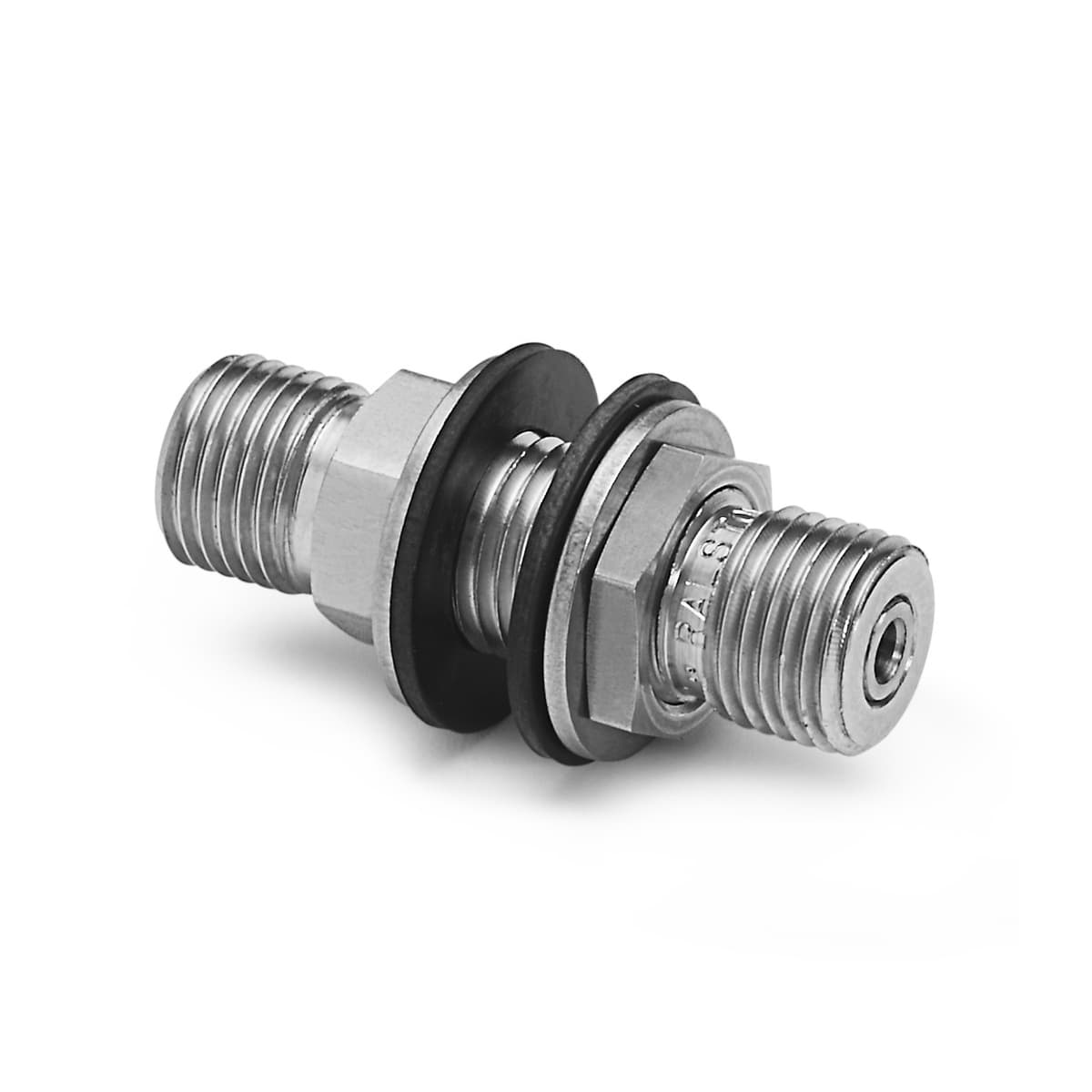

Ralston Quick-test Bulkhead Connections
Male Quick-test × male Quick-test bulkhead unions with cap & chain — seal through panels up to 0.5 in thick
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
Quick-test Bulkhead Connections safely connect two Quick-test hoses through an enclosure, truck, or panel wall.
- Bulkhead seals so no liquid or moisture can get into a control panel or enclosure
- Use to connect a Quick-test hose on the inside of an enclosure to a Quick-test hose on the outside
- Will connect through a wall that is up to 0.5 in (1.3 cm) thick
- Cap and chain on the Quick-test side (QTFT)
- Working pressure up to 5,000 psi
- Made in USA
Part of the Ralston Quick-test system of safe, stable, leak-free connections without a wrench.
Shipping and tax are confirmed when we review your order.
OEM family: Quick-test Bulkhead Connections (https://www.ralstoninst.com/quick-test-bulkhead-connections).
Specifications
| Family | Quick-test Bulkhead Connections |
| Connections | Male Quick-test × male Quick-test |
| Cap and chain | Yes (QTFT) |
| Max wall thickness | 0.5 in / 1.3 cm |
| Max pressure | 5,000 psi / 350 bar / 35 MPa |
| Materials | Stainless steel |
| Country of origin | USA |
Videos
Build your part number
Configure your QTFT
Pick your options and we'll build the exact part number with a list-price estimate.
Select a model to build your part number.
Stainless Quick-test bulkhead connection with cap and chain on both sides. Shipping and tax are confirmed when we review your order.
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| QTFT-HHSB | Male Quick-test x male Quick-test bulkhead union, with cap and chain, S.S. | $78.28 |
