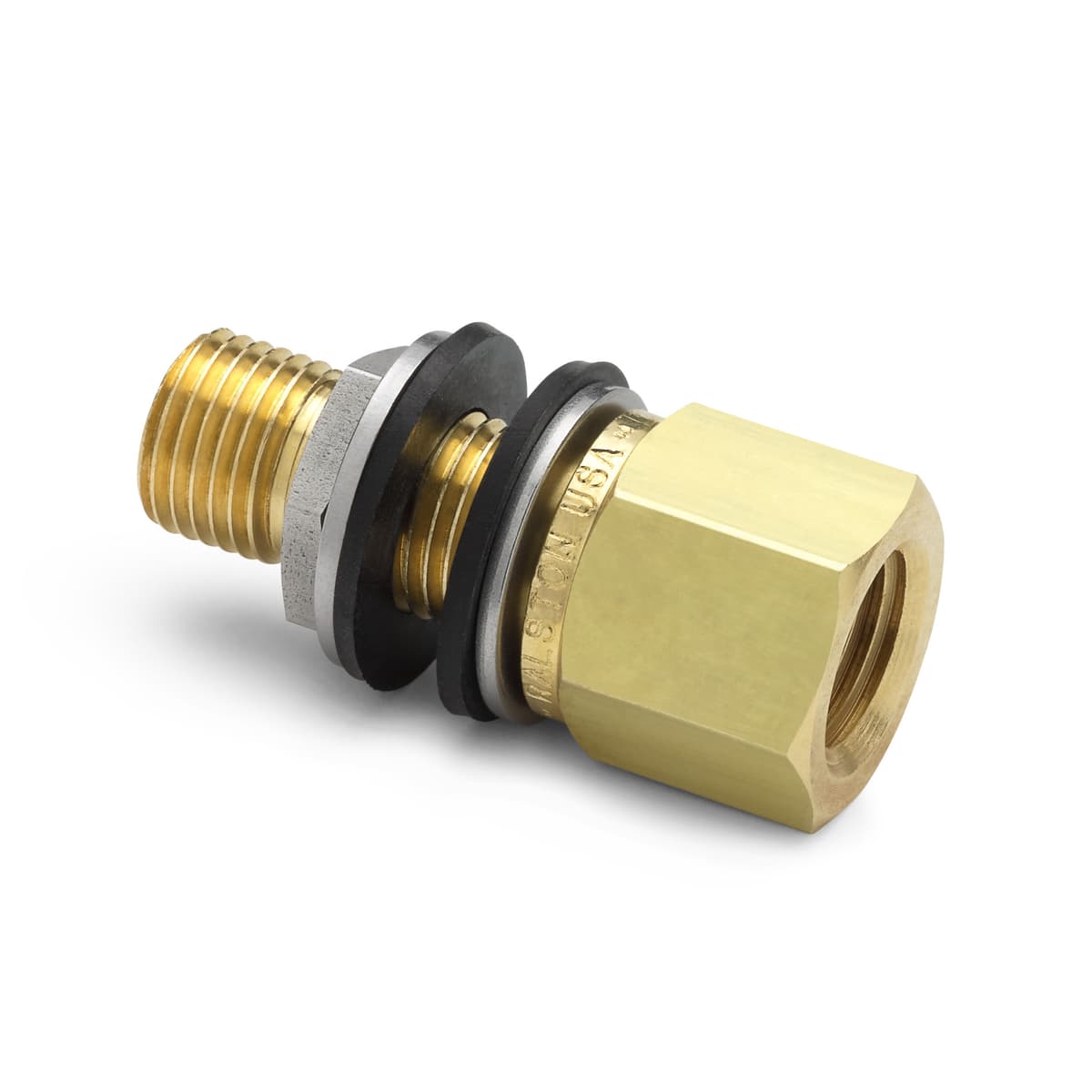

Ralston NPT Female Quick-test Bulkhead Unions
Female NPT × male Quick-test bulkhead unions with cap & chain — seal through panels up to 0.5 in thick
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
NPT Female Quick-test Bulkhead Unions connect a hose on one side of a panel, wall or enclosure with female NPT on the other side.
- Bulkhead seals so no liquid or moisture can get into a control panel or enclosure
- Use to connect fittings on the inside of an enclosure to a Quick-test hose on the outside
- Will connect through a wall that is up to 0.5 in (1.3 cm) thick
- Cap and chain on the Quick-test side
- Working pressure up to 5,000 psi
- Made in USA
Part of the Ralston Quick-test system of safe, stable, leak-free connections without a wrench.
Shipping and tax are confirmed when we review your order.
OEM family: NPT Female Quick-test Bulkhead Unions (https://www.ralstoninst.com/npt-female-quick-test-bulkhead-unions).
Specifications
| Family | NPT Female Quick-test Bulkhead Unions |
| Process connection | 1/4 in female NPT |
| Hose connection | Male Quick-test with cap and chain |
| Max wall thickness | 0.5 in / 1.3 cm |
| Max pressure | 5,000 psi / 350 bar / 35 MPa |
| Seal materials | Buna-N |
| Country of origin | USA |
Videos
Build your part number
Configure your QTFT
Pick your options and we'll build the exact part number with a list-price estimate.
Select a model to build your part number.
Choose material. These QTFT bulkhead unions connect a Quick-test hose outside a panel to female NPT inside. Shipping and tax are confirmed when we review your order.
Ordering information
2 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| QTFT-HFBB-2F | 1/4" female NPT x male Quick-test bulkhead union, with cap and chain brass | $80.36 | |
| QTFT-HFSB-2F | 1/4" female NPT x male Quick-test bulkhead union, with cap and chain, S.S. | $86.63 |
