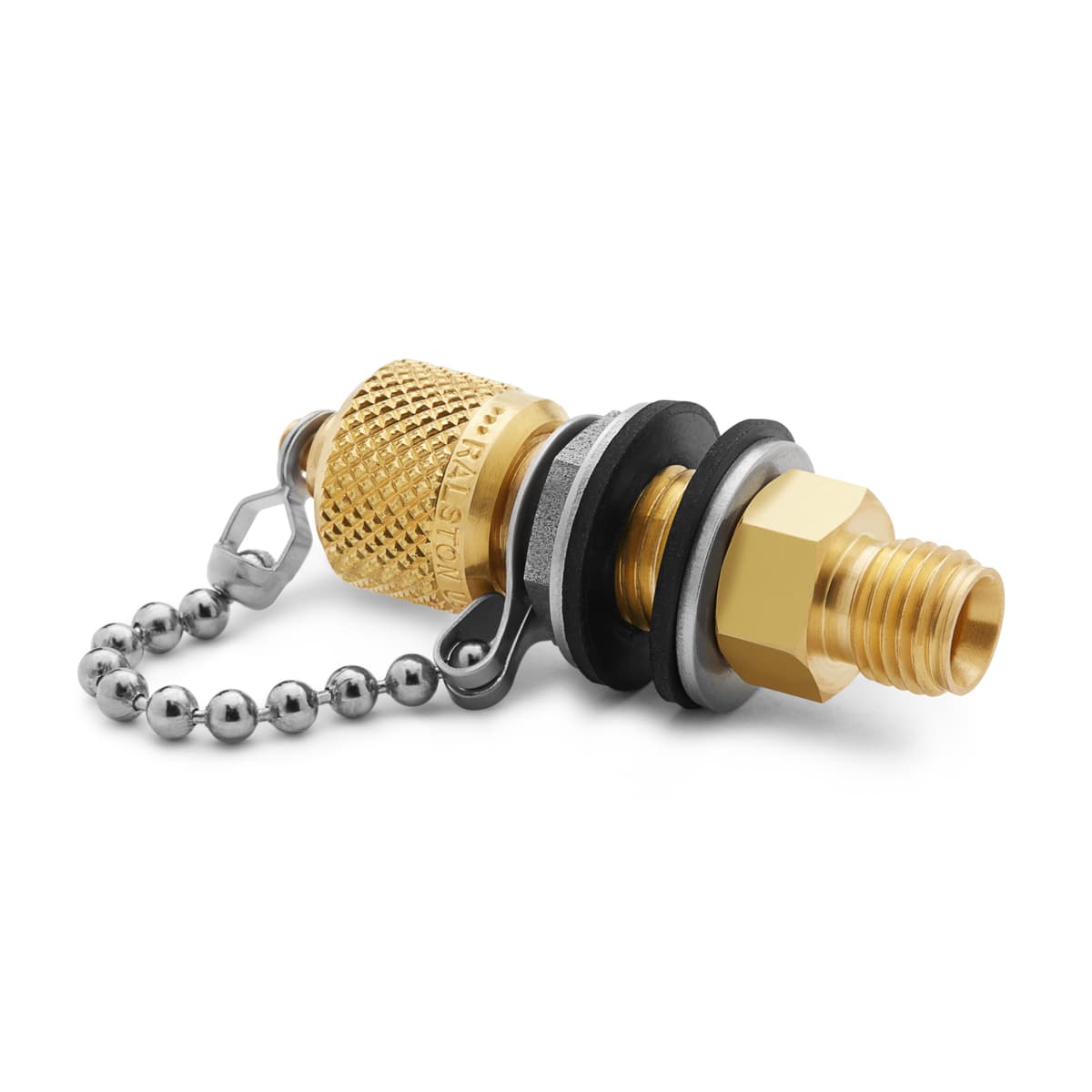

Ralston Tube Fitting Quick-test Bulkhead Unions
Tube fitting × male Quick-test bulkhead unions with cap & chain — seal through panels up to 0.5 in thick
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
Tube Fitting Quick-test Bulkhead Unions connect a Quick-test hose on one side of a panel, wall or enclosure and a tube fitting on the other.
- Bulkhead seals so no liquid or moisture can get into a control panel or enclosure
- Use to connect tube fittings on the inside of an enclosure to a Quick-test hose on the outside
- Will connect through a wall that is up to 0.5 in (1.3 cm) thick
- Cap and chain on the Quick-test side (QTFT)
- Working pressure up to 5,000 psi
- Made in USA
Part of the Ralston Quick-test system of safe, stable, leak-free connections without a wrench.
Shipping and tax are confirmed when we review your order.
OEM family: Tube Fitting Quick-test Bulkhead Unions (https://www.ralstoninst.com/tube-fitting-quick-test-bulkhead-unions).
Specifications
| Family | Tube Fitting Quick-test Bulkhead Unions |
| Process connection | Tube fitting (1/8 in or 1/4 in) |
| Hose connection | Male Quick-test with cap and chain |
| Max wall thickness | 0.5 in / 1.3 cm |
| Max pressure | 5,000 psi / 350 bar / 35 MPa |
| Seal materials | Buna-N |
| Country of origin | USA |
Videos
Build your part number
Configure your QTFT
Pick your options and we'll build the exact part number with a list-price estimate.
Select a model to build your part number.
Choose size and material. These QTFT bulkhead unions connect a Quick-test hose outside a panel to a tube fitting inside. Shipping and tax are confirmed when we review your order.
Ordering information
2 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| QTFT-HTBB-2T | 1/4" tube fitting x male Quick-test bulkhead union, with cap and chain, brass | $78.96 | |
| QTFT-HTSB-1T | Male Quick-test with cap and chain x 1/8" tube fitting with Bulkhead seals, SS | $86.98 |
