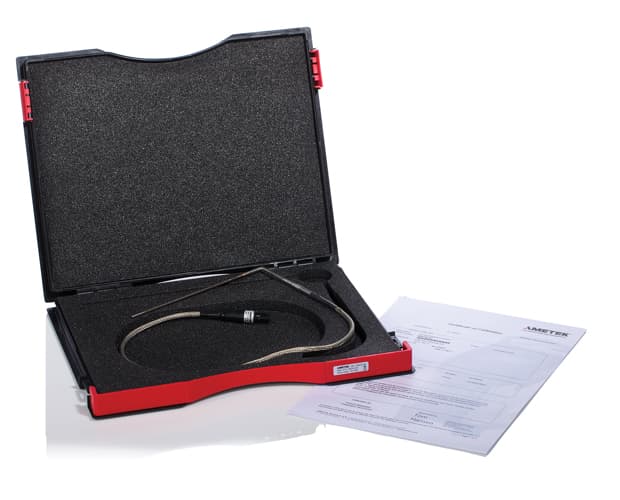

JOFRA DLC Dynamic Load Compensation Sensor

Overview

The DLC Dynamic Load Compensation System is a state-of-the-art innovation within temperature calibration. The DLC compensates for the negative effect on calibration accuracy that heat exchange between a dry-block calibrator and the sensor-under-test creates.

When a sensor is inserted into a dry-block calibrator, the sensor size (diameter and length) and the difference between calibration temperature and ambient temperature create an axial gradient deviation inside the insert. JOFRA temperature calibrators are already known for their active dual-zone calibration principle; the DLC takes this one step further and now compensates inside the insert.

The DLC, combined with an RTC Calibrator, creates the only dry-block that compensates for the heat dissipation caused by sensor loading. Official AMETEK features: control the lower section of the insert to within a few hundredths of a degree; the DLC indicator shows that the dual-zone is active and working; a DLC checkmark is present when temperature homogeneity is achieved; save time by calibrating several sensors simultaneously; calibrate large diameter sensors without losing accuracy; aligning the thermos-sensitive part of the sensor is no longer needed.

Official source: https://www.ametekcalibration.com/products/temperature/reference-temperature-sensors/dlc-dynamic-load-compensation

Specifications

Documents

• datasheetDLC Dynamic Load Compensation Datasheet
• manualDLC User Manual
