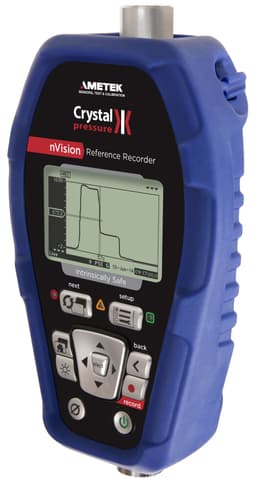

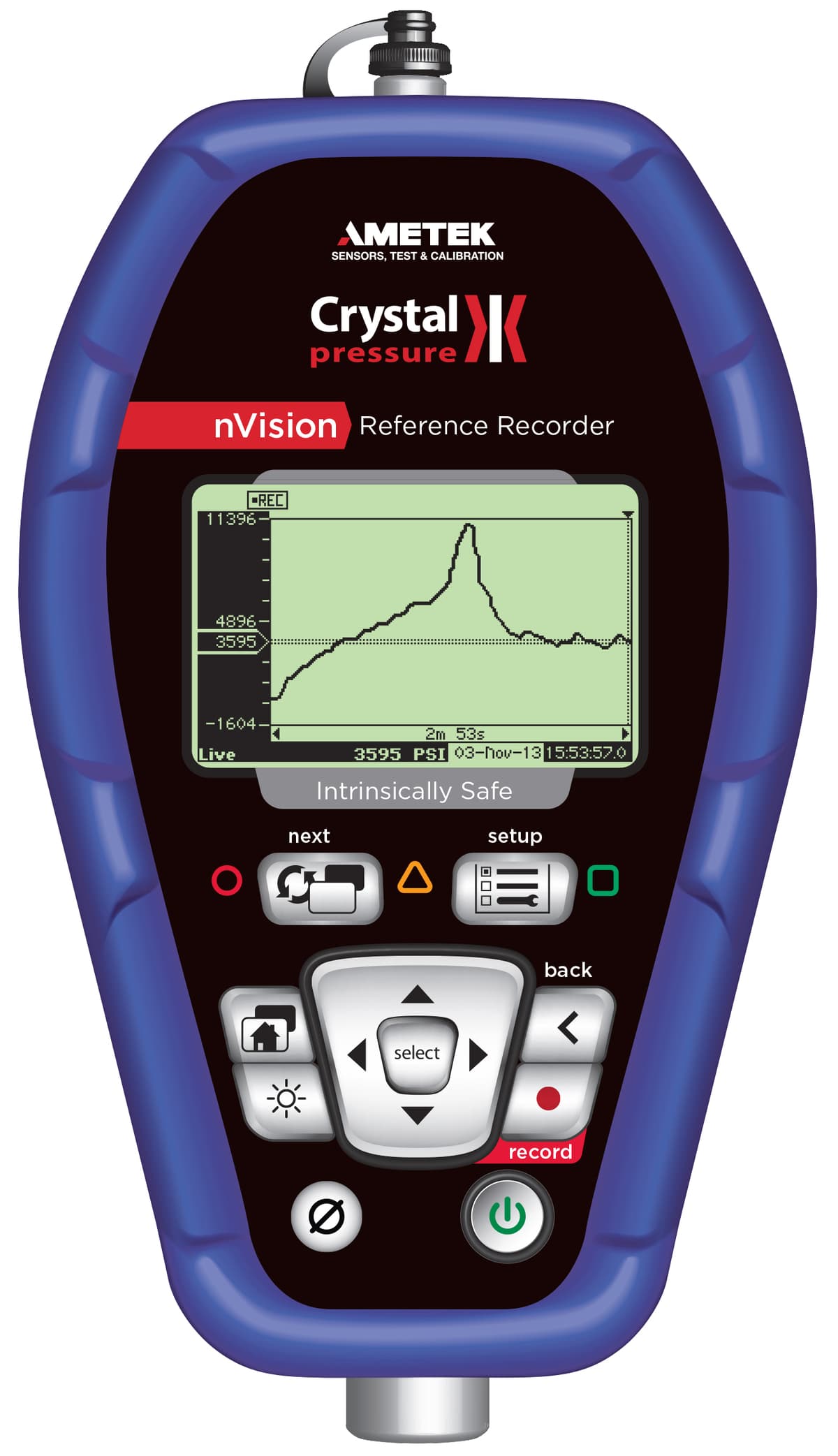

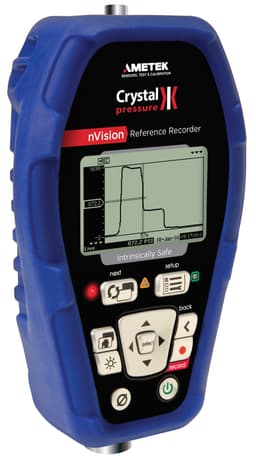

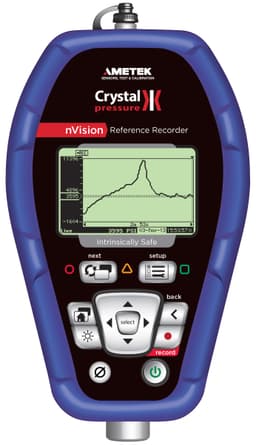

Crystal nVision Reference Pressure Recorder
Modular reference pressure recorder that is accurate enough to replace a deadweight tester, rugged enough to sit in 3 feet of water, and portable enough to calibrate anywhere. Logs gauge and absolute pressure to 15,000 psi / 1,000 bar with differential accuracy to 0.025% of reading.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Crystal nVision is a modular reference pressure recorder for field and laboratory calibration. It is accurate enough to replace a traditional deadweight tester, rugged enough to sit in 3 feet (1 m) of water, and portable enough to complete calibrations anywhere.
nVision logs gauge and absolute pressure to 15,000 psi / 1,000 bar / 100 MPa and measures differential pressure with up to 0.025% of reading accuracy. Two module bays accept pressure (PM), current/voltage/switch (MA20), and temperature (RTD100) modules, plus an optional BARO barometric reference. Switch, voltage, current, and temperature measurements are supported.
The recorder stores up to 500,000 data points and samples at 10 readings per second from two modules. Live data graphs on the LCD — no PC required — and CrystalControl exports tamper-proof digital records. Accuracy is temperature-compensated from −20 to 50°C. Every unit includes an ISO 17025 / A2LA accredited calibration certificate with test data at five temperatures. Everyday wear shifts to a replaceable Crystal CPF adapter.
Specifications
| Pressure | |
| Ranges | Gauge / absolute to 15,000 psi / 1,000 bar / 100 MPa |
| Differential accuracy | Up to 0.025% of reading |
| Compensation | −20 to 50°C |
| Measurement | |
| Signals | Pressure, switch, voltage, current, and temperature |
| Modules | |
| Bays | Two field-swappable module ports (PM, MA20, RTD100, blank) |
| Optional BARO | Barometric reference for absolute readings |
| Data logging | |
| Capacity | 500,000 data points; 10 readings/s from 2 modules |
| Display | |
| Graphing | Live graphical display on LCD — no PC required |
| Software | |
| CrystalControl | Configure, view live data, export signed PDF / CSV / Excel |
| Enclosure | |
| Ingress | Submersible to 1 m / 3 ft for 30 minutes (IEC 60529) |
| Connection | |
| Fitting | Replaceable Crystal CPF adapter |
| Calibration | |
| Certificate | ISO 17025 / A2LA with data at 5 temperatures |
Documents
Build your part number
Configure your NV
Pick your options and we'll build the exact part number with a list-price estimate.
Select a power, upper module, lower module to build your part number.
Prices come from the current Crystal price list. Two module bays: pick a pressure, MA20, RTD100, or a blank plate. BARO sits under the battery pack. Shipping and tax are confirmed when we review your order.
Ordering information
110 ordering models available - showing 100, use the filter to narrow down.
| Model | Description | List Price | |
|---|---|---|---|
| 124110 | Aluminum carrying case for system A / B | $1,167.00 | |
| 124299 | Aluminum carrying case for system C | $1,167.00 | |
| 124301 | Aluminum carrying case for system D | $1,433.00 | |
| 124303 | Aluminum carrying case for system E | $1,433.00 | |
| 124304 | Aluminum carrying case for system F | $1,433.00 | |
| 129856 | Cable 1m (3.3 ft.) with REDEL / PHOENIX | $247.00 | |
| 2888 | Waterproof Carrying Case for system A,B,C&H | $1,330.00 | |
| 3951 | USB A to mini USB B Cable | $107.00 | |
| 3952 | MA20 Module Test Lead Set | $112.00 | |
| 3953 | RTD terminal block connector | $177.00 | |
| 3983 | RTD100 terminal cap | $27.00 | |
| 3985 | Protective Boot | $107.00 | |
| 4110 | nVision Module o-ring - seals module to chassis | $19.00 | |
| 4547 | Barometric Module Calibration Kit | $153.00 | |
| 4947 | 20 m (64 ft) USB active extension cable | $121.00 | |
| 4AA | Alkaline disposable power pack | $379.00 | |
| 5008 | Module Storage / Shipping Tube | $14.00 | |
| 5177 | nVison Magnetic Hanging Strap Kit nVision | $112.00 | |
| 6053 | Carrying Case with Strap | $224.00 | |
| nVision:1000KG | 1000 kg/cm2 pressure module - 0.05% of rdg | $3,288.00 | |
| nVision:100BAR | 100 bar pressure module - 0.05% of rdg. | $2,735.00 | |
| nVision:100KG | 100 kg/cm2 pressure module - 0.05% of rdg. | $2,735.00 | |
| nVision:100MPA | 100 MPa pressure module - 0.05% of rdg. | $3,288.00 | |
| nVision:100PSI | 100 psi pressure module - 0.025% of rdg. | $3,288.00 | |
| nVision:10BAR | 10 bar pressure module - 0.025% of rdg. | $3,288.00 | |
| nVision:10KG | 10 kg/cm2 pressure module - 0.025% of rdg. | $3,288.00 | |
| nVision:10KPSI | 10000 psi pressure module - 0.05% of rdg. | $2,735.00 | |
| nVision:10MPA | 10 MPa pressure module - 0.05% of rdg. | $2,735.00 | |
| nVision:15KPSI | 15000 psi pressure module - 0.05% of rdg. | $3,288.00 | |
| nVision:1KBAR | 1000 bar pressure module - 0.05% of rdg. | $3,288.00 | |
| nVision:1KPSI | 1000 psi pressure module - 0.05% of rdg. | $2,735.00 | |
| nVision:1MPA | 1 MPa pressure module - 0.025% of rdg. | $3,288.00 | |
| nVision:300BAR | 300 bar pressure module - 0.05% of rdg. | $2,735.00 | |
| nVision:300KG | 300 kg/cm2 pressure module - 0.05% of rdg. | $2,735.00 | |
| nVision:300KPA | 300 kPa pressure module - 0.025% of rdg. | $3,288.00 | |
| nVision:300PSI | 300 psi pressure module - 0.025% of rdg. | $3,288.00 | |
| nVision:30BAR | 30 bar pressure module - 0.025% of rdg. | $3,288.00 | |
| nVision:30KG | 30 kg/cm2 pressure module - 0.025% of rdg. | $3,288.00 | |
| nVision:30MPA | 30 MPa pressure module - 0.05% of rdg. | $2,735.00 | |
| nVision:30PSI | 30 psi pressure module - 0.025% of rdg. | $3,288.00 | |
| nVision:3981 | O-ring for Female CPF/Male 1/2" Tube /100pcs | $87.00 | |
| nVision:3BAR | 3 bar pressure module - 0.025% of rdg. | $3,288.00 | |
| nVision:3KG | 3 kg/cm2 pressure module - 0.025% of rdg. | $3,288.00 | |
| nVision:3KPSI | 3000 psi pressure module - 0.05% of rdg. | $2,735.00 | |
| nVision:3MPA | 3 MPa pressure module - 0.025% of rdg. | $3,288.00 | |
| nVision:4126 | RTD100/385, 3 WIRE, CLASS B, Probe - 4" x 3/16", | $263.00 | |
| nVision:4491 | RTD100/385, 3 WIRE, CLASS B, Probe - 4" x 4mm, | $438.00 | |
| nVision:4492 | MP Male to 3/8 NPT Male (6N04M15) | $175.00 | |
| nVision:4493 | MP Male to 1/2 NPT Male (8N04M15) | $198.00 | |
| nVision:4497 | MP Male to 1/8 NPT Female (2NF04M15) | $175.00 | |
| nVision:4498 | MP Male to 1/4 NPT Female (4NF04M15) | $175.00 | |
| nVision:4499 | MP Male to 3/8 NPT Female (6NF04M15) | $175.00 | |
| nVision:4500 | MP Male to 1/2 NPT Female (8NF04M15) | $175.00 | |
| nVision:4623-1 | RTD100/385, 3 WIRE, CLASS B, Probe - 4" x 3/16", | $456.00 | |
| nVision:4623-10 | RTD100/385, 3 WIRE, CLASS B, Probe - 4" 3/16", | $795.00 | |
| nVision:4623-11 | RTD100/385, 3 WIRE, CLASS B, Probe - 4" x 3/16", | $943.00 | |
| nVision:4623-12 | RTD100/385, 3 WIRE, CLASS B, Probe - 4" x 3/16", | $943.00 | |
| nVision:4623-13 | RTD100/385, 3 WIRE, CLASS B, Probe - 4" x 1/4", | $728.00 | |
| nVision:4623-14 | RTD100/385, 3 WIRE, CLASS B, Probe - 12" x 1/4", | $728.00 | |
| nVision:4623-15 | RTD100/385, 3 WIRE, CLASS B, Probe - 4" x .188", | $389.00 | |
| nVision:4623-16 | RTD100/385, 3 WIRE, CLASS B, Probe - 10" x .188", | $389.00 | |
| nVision:4623-17 | RTD100/385, 3 WIRE, CLASS B, Probe - 12" x .250", | $889.00 | |
| nVision:4623-18 | RTD100/385, 3 WIRE, CLASS B, Probe - 12" x .25", | $1,132.00 | |
| nVision:4623-19 | RTD100/385, 3 WIRE, CLASS B, Probe - 4" x .25", | $1,132.00 | |
| nVision:4623-2 | RTD100/385, 4 WIRE, CLASS A3, Probe - 4" x 1/4", | $878.00 | |
| nVision:4623-21 | RTD100/385, 3 WIRE, CLASS B, Probe - 4" x .25", | $665.00 | |
| nVision:4623-22 | Leadwire assembly for RTD, 4 WIRE | $467.00 | |
| nVision:4623-23 | RTD100/385, 4 WIRE, CLASS A3, Probe - 5.9" x 1/4", | $522.00 | |
| nVision:4623-24 | RTD100/385, 3 wire, CLASS B, Probe - 6" x .250" | $631.00 | |
| nVision:4623-25 | RTD100/385, 3 wire, CLASS B, Probe - 4" x .250" | $596.00 | |
| nVision:4623-3 | RTD100/385, 3 WIRE, CLASS B, Probe - 4" x 3/16", | $412.00 | |
| nVision:4623-4 | Extension Cable for Probe with 4-POL Connectors | $308.00 | |
| nVision:4623-5 | RTD100/385, 3 WIRE, CLASS B, Probe - 4" x 3/16", | $614.00 | |
| nVision:4623-6 | RTD100/385, 4 WIRE, CLASS A3, Probe - 4" x 1/4", | $1,171.00 | |
| nVision:4623-7 | RTD100/385, 3 WIRE, CLASS B, Probe - 12" x 3/16", | $293.00 | |
| nVision:4623-8 | RTD100/385, 4 WIRE, CLASS B, Probe - 6" x 3/16", | $1,260.00 | |
| nVision:4623-9 | RTD100/385, 4 WIRE, CLASS B, Probe - 6" x 3/16", | $2,150.00 | |
| nVision:4696 | MP Male to 1/8 NPT Male (15000 psi rated) | $175.00 | |
| nVision:4698 | MP Male to 1/4 NPT Male (4N04M15) | $175.00 | |
| nVision:4748 | RTD100/385, 4 WIRE, CLASS B, Probe - 6" x 3/16", | $949.00 | |
| nVision:4AA | Base Version w. Power Module with 4 pcs AA (LR6) | Request a quote | |
| nVision:700BAR | 700 bar pressure module - 0.05% of rdg. | $2,735.00 | |
| nVision:700KG | 700 kg/cm2 pressure module - 0.05% of rdg. | $2,735.00 | |
| nVision:70MPA | 70 MPa pressure module - 0.05% of rdg. | $2,735.00 | |
| nVision:AHX | System A (pneumatic) 0 to 40 bar | $2,113.00 | |
| nVision:AXX | System A (pneumatic) 0 to 2 bar | $2,113.00 | |
| nVision:BARO | Barometric module to absolute pressure mode | $1,066.00 | |
| nVision:BHX | System B (pneumatic) -0.91 to 40 bar | $2,291.00 | |
| nVision:BXX | System B (pneumatic) -0.91 to 2 bar | $2,291.00 | |
| nVision:CHX | System C (oil) 0 to 350 bar | $2,206.00 | |
| nVision:CXX | System C (oil) 0 to 200 bar | $1,940.00 | |
| nVision:DOX | System D (oil) 0 to 350 bar | $4,042.00 | |
| nVision:DWX | System D (water) 0 to 350 bar | $4,042.00 | |
| nVision:E | No Liquid (Pump Drained) | Request a quote | |
| nVision:EOX | System E (oil) 0 to 700 bar | $5,702.00 | |
| nVision:FOV | System F (oil) 0 to 1000 bar | $6,335.00 | |
| nVision:FWV | System F (water) 0 to 1000 bar | $6,335.00 | |
| nVision:GOX | System G (oil) 0 to 1000 bar | $6,758.00 | |
| nVision:GWX | System G (water) 0 to 1000 bar | $6,758.00 | |
| nVision:HOX | System H (oil/pneumatic) -0.91 to 350 bar | $3,863.00 |
