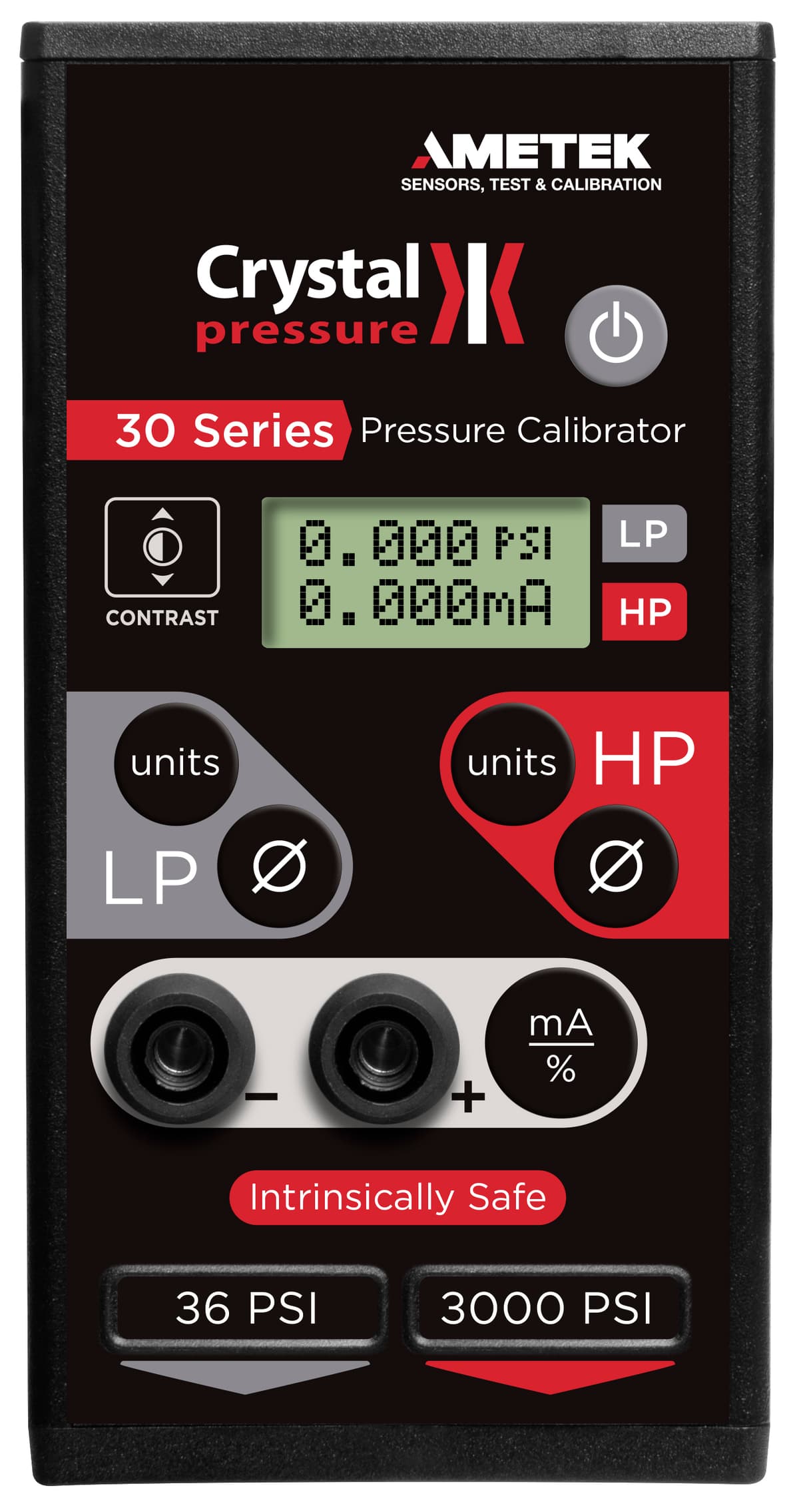

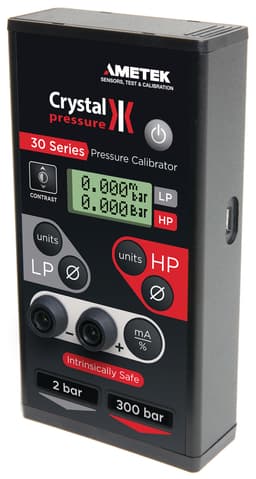

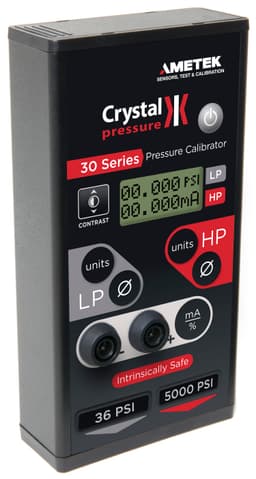

Crystal 30 Series Pressure Calibrator
Shirt-pocket pressure calibrator with 0.05% of reading accuracy, vacuum through 5,000 psi (300 bar), and milliamps indication for transmitter calibration. Intrinsically safe and battery powered for field use.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Crystal 30 Series is an ultra-compact, intrinsically safe digital pressure calibrator that brings laboratory accuracy to outdoor field conditions. It fits in a shirt pocket and still measures vacuum and pressure through 5,000 psi (300 bar) at 0.05% of reading, with high overpressure protection on the internal sensors.
Milliamps indication (0 to 55 mA) lets you calibrate transmitters from the same handheld. Dual-sensor Model 33 units show low- and high-pressure ranges together. The interface is two lines of up to six digits — easy to learn and use with no nested menus. ConfigM30 software customizes units and features over micro-USB.
Every 30 Series is fully temperature-compensated from 0 to 50°C and ships with an ISO 17025 / NIST-traceable calibration certificate. Battery operated for field work. Not recommended for oxygen service.
Specifications
| Pressure | |
| Accuracy | ±(0.05% of reading + floor term) from 0 to 110% of range |
| Ranges | Vacuum and pressure to 5,000 psi / 300 bar |
| Electrical | |
| mA | ±(0.025% of reading + 0.001 mA); 0 to 55 mA |
| Display | |
| Screen | 2 lines of up to 6 digits; 2 readings/s (adjustable) |
| Safety | |
| Approvals | Intrinsically safe (ATEX / IECEx with specified 9 V battery) |
| Interface | |
| Digital | micro-USB; ConfigM30 configuration software |
| Power | |
| Battery | 9 V alkaline (field use) |
| Housing | |
| Construction | Extruded aluminum; ultra-compact and lightweight |
| Calibration | |
| Certificate | ISO 17025 accredited, NIST traceable |
Documents
Ordering information
62 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| 30Series:1 | 1 bar Pressure Calibrator | Request a quote | |
| 30Series:100 | 100 bar Pressure Calibrator | Request a quote | |
| 30Series:10000 | 10000 kPa Pressure Calibrator | Request a quote | |
| 30Series:100/10000 | 100 kPa / 10000 Kpa Pressure Calibrator | Request a quote | |
| 30Series:100/2000 | 100 kPa / 2000 Kpa Pressure Calibrator | Request a quote | |
| 30Series:100/20000 | 100 kPa / 20000 Kpa Pressure Calibrator | Request a quote | |
| 30Series:100/30000 | 100 kPa / 30000 Kpa Pressure Calibrator | $378.00 | |
| 30Series:1/100 | 1 bar / 100 bar Pressure Calibrator | Request a quote | |
| 30Series:1/20 | 1 bar / 20 bar Pressure Calibrator | Request a quote | |
| 30Series:1/200 | 1 bar / 200 bar Pressure Calibrator | Request a quote | |
| 30Series:1/300 | 1 bar / 300 bar Pressure Calibrator | $378.00 | |
| 30Series:1500 | 1500 psi Pressure Calibrator | Request a quote | |
| 30Series:16 | 16 psi Pressure Calibrator | Request a quote | |
| 30Series:16/1500 | 16 psi / 1500 psi Pressure Calibrator | Request a quote | |
| 30Series:16/300 | 16 psi / 300 psi Pressure Calibrator | Request a quote | |
| 30Series:16/3000 | 16 psi / 3000 psi Pressure Calibrator | Request a quote | |
| 30Series:16/5000 | 16 psi / 5000 psi Pressure Calibrator | $378.00 | |
| 30Series:2 | 2 bar Pressure Calibrator | Request a quote | |
| 30Series:20 | 20 bar Pressure Calibrator | Request a quote | |
| 30Series:200 | 200 bar Pressure Calibrator | Request a quote | |
| 30Series:2000 | 2000 kPa Pressure Calibrator | Request a quote | |
| 30Series:20000 | 20000 kPa Pressure Calibrator | Request a quote | |
| 30Series:200/10000 | 200 kPa / 10000 Kpa Pressure Calibrator | Request a quote | |
| 30Series:200/2000 | 200 kPa / 2000 Kpa Pressure Calibrator | Request a quote | |
| 30Series:200/20000 | 200 kPa / 20000 Kpa Pressure Calibrator | Request a quote | |
| 30Series:200/30000 | 200 kPa / 30000 Kpa Pressure Calibrator | $378.00 | |
| 30Series:2/100 | 2 bar / 100 bar Pressure Calibrator | Request a quote | |
| 30Series:2/20 | 2 bar / 20 bar Pressure Calibrator | Request a quote | |
| 30Series:2/200 | 2 bar / 200 bar Pressure Calibrator | Request a quote | |
| 30Series:2/300 | 2 bar / 300 bar Pressure Calibrator | $378.00 | |
| 30Series:300 | 300 psi Pressure Calibrator | Request a quote | |
| 30Series:3000 | 3000 psi Pressure Calibrator | Request a quote | |
| 30Series:31 | Single Sensor Pressure Calibrator * | $2,760.00 | |
| 30Series:33 | Dual Sensor Pressure Calibrator * | $4,082.00 | |
| 30Series:36 | 36 psi Pressure Calibrator | Request a quote | |
| 30Series:36/1500 | 36 psi / 1500 psi Pressure Calibrator | Request a quote | |
| 30Series:36/300 | 36 psi / 300 psi Pressure Calibrator | Request a quote | |
| 30Series:36/3000 | 36 psi / 3000 psi Pressure Calibrator | Request a quote | |
| 30Series:36/5000 | 36 psi / 5000 psi Pressure Calibrator | $378.00 | |
| 30Series:AHX | System A (pneumatic) 0 to 40 bar | $2,113.00 | |
| 30Series:AXX | System A (pneumatic) 0 to 2 bar | $2,113.00 | |
| 30Series:BAR | bar Pressure Unit | Request a quote | |
| 30Series:BHX | System B (pneumatic) -0.91 to 40 bar | $2,291.00 | |
| 30Series:BXX | System B (pneumatic) -0.91 to 2 bar | $2,291.00 | |
| 30Series:CHX | System C (oil) 0 to 350 bar | $2,206.00 | |
| 30Series:CXX | System C (oil) 0 to 200 bar | $1,940.00 | |
| 30Series:DOX | System D (oil) 0 to 350 bar | $4,042.00 | |
| 30Series:DWX | System D (water) 0 to 350 bar | $4,042.00 | |
| 30Series:E | No Liquid (Pump Drained) | Request a quote | |
| 30Series:EOX | System E (oil) 0 to 700 bar | $5,702.00 | |
| 30Series:FOV | System F (oil) 0 to 1000 bar | $6,335.00 | |
| 30Series:FWV | System F (water) 0 to 1000 bar | $6,335.00 | |
| 30Series:GOX | System G (oil) 0 to 1000 bar | $6,758.00 | |
| 30Series:GWX | System G (water) 0 to 1000 bar | $6,758.00 | |
| 30Series:HOX | System H (oil/pneumatic) -0.91 to 350 bar | $3,863.00 | |
| 30Series:IS | Intrinsic Safety | Request a quote | |
| 30Series:KPA | kPa Pressure Unit | Request a quote | |
| 30Series:NONE | Pump system ONLY ** NO Calibrator** | $213.00 | |
| 30Series:PSI | psi Pressure Unit | Request a quote | |
| 30Series:SPSS | Stainless Steel Manifolds | $757.00 | |
| 30Series:W | Additional Price for Waterproof Carrying Case | $270.00 | |
| 30Series:XXX | See Pressure Range section for price and correct ordering code | Request a quote |
