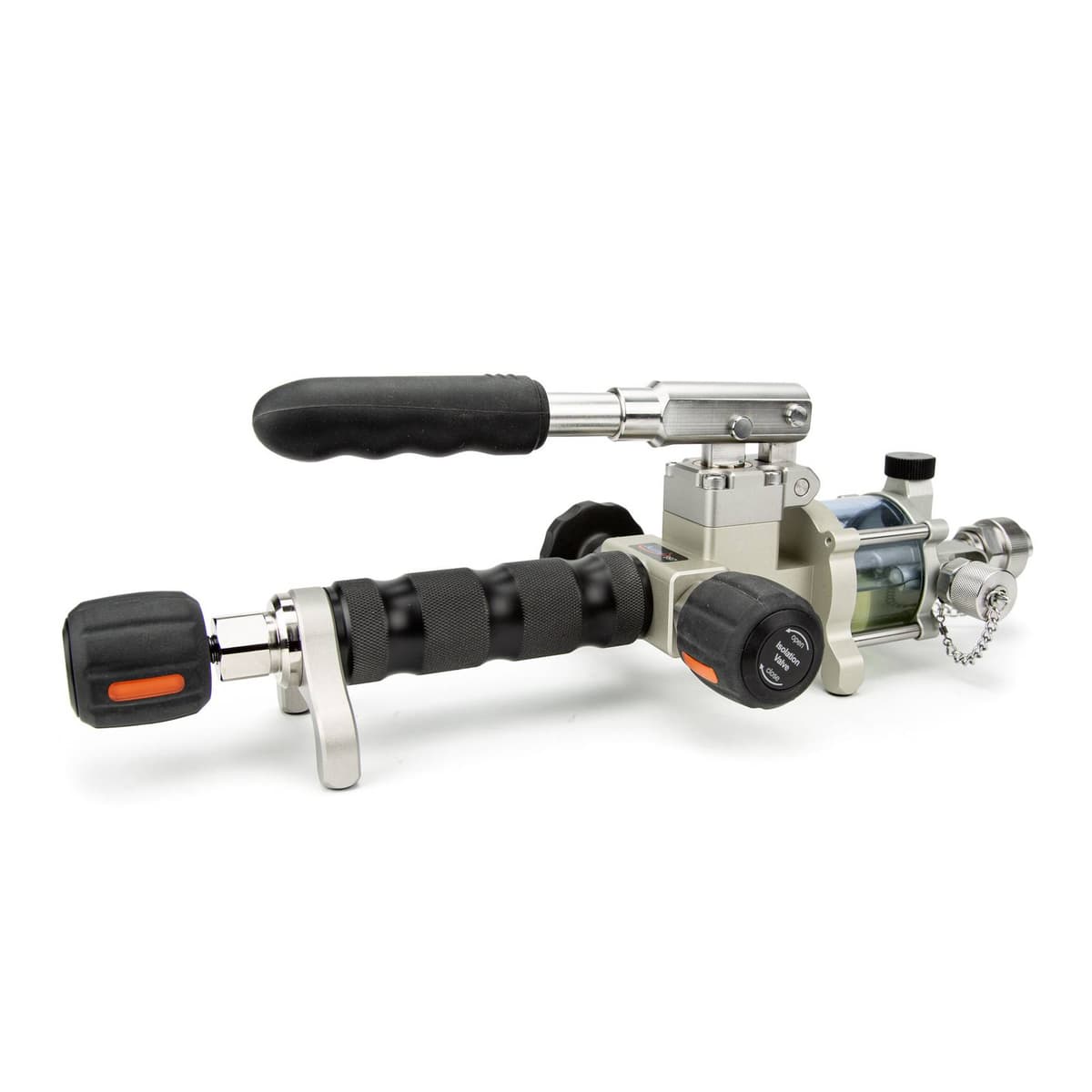

Additel 997 Handheld Hydraulic Pressure Pump
Handheld hydraulic pressure pump to 10,000 psi (10000 psi / 700 bar) with a dual-stage piston, lever pressurization, fine-adjust screw, and four operating positions. Weighs 4.19 lb. Pumps from $2,745.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Additel 997 is a handheld hydraulic pressure pump for field and laboratory calibration. A dual-stage pre-pressure piston generates up to 10,000 psi (700 bar) with less effort than a single-stage hand pump, and lever-type pressurization settles quickly. A fine-adjust screw resolves 100 Pa (1 mbar). The longitudinal layout, adjustable reference port, and dual rubber grips support four operating positions — horizontal, vertical, and tilt-head among them — so the pump can be used on a bench or in the field.
Compatible media include hydraulic oil, mineral oil, transformer oil, alcohol, antifreeze, and deionized water (contact Additel for other fluids). Port filters are 150 μm on the standard and outlet ports and 100 μm on the air intake. Materials are stainless ram and adapters, a stainless / aluminum / UPVC body, and Buna-N, PTFE, and copper-alloy seals. The pump weighs 4.19 lb (1.9 kg) and measures 15.2 × 6.5 × 5 in (385 × 166 × 128 mm).
Each pump includes a 250 ml bottle of mineral oil (when water media is not requested), 20 O-rings, a flexible hose rated to 720 bar, and one ADT100-X-M18M female quick connector for the DUT. SET models add the 9901-997 carrying case. Ports are 1/4 NPT, 1/2 NPT, 1/4 BSP, 1/2 BSP, or M20×1.5 female. Pumps are priced from $2,745; the ADT997-MK maintenance kit is $53. One-year warranty.
Specifications
| Pressure | |
| Generated range | Up to 10,000 psi (700 bar) |
| Fine adjustment | 100 Pa (1 mbar) |
| Volumes | Maximum load 100 ml; fine-adjust 1.5 ml |
| Media | |
| Compatible fluids | Hydraulic oil, mineral oil, transformer oil, alcohol, antifreeze, deionized water |
| Mechanical | |
| Piston / pressurization | Dual-stage pre-pressure piston; lever-type pressurization |
| Operating positions | Four positions — horizontal, vertical, and tilt-head; adjustable reference port and dual rubber grips |
| Filters | Standard and outlet 150 μm; intake 100 μm (quick-removal) |
| Materials | Ram/adapters SS; body SS, aluminum, UPVC; seals Buna-N, PTFE, copper alloy |
| Size / weight | 15.2 × 6.5 × 5 in (385 × 166 × 128 mm); 4.19 lb (1.9 kg) |
| Ports | |
| Connections | 1/4 NPT, 1/2 NPT, 1/4 BSP, 1/2 BSP, or M20×1.5 female; hand-tight quick connectors on the hose |
| Included | |
| Standard | 250 ml mineral oil (if not water media), 20 O-rings, 720 bar hose, ADT100-X-M18M DUT connector |
| SET / MK | SET adds 9901-997 case; ADT997-MK maintenance kit is a separate $53 variant |
| General | |
| Warranty | 1 year |
| Starting price | Pumps from $2,745; maintenance kit $53 |
Videos
Documents
Ordering information
11 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| ADT997-B | Handpump, Hydraulic Pressure Test Generator, 0 to 10000psi (0~700)bar, 1/4BSP F (Tested with oil) | $2,745.00 | |
| ADT997-B2 | Handpump, Hydraulic Pressure Test Generator, 0 to 10000psi (0~700)bar, 1/2BSP F (Tested with oil) | $2,745.00 | |
| ADT997-B2-SET | Handpump, Hydraulic Pressure Test Generator, 0 to 10000psi (0~700)bar, 1/2BSP F with carry case (Tested with oil) | $2,958.00 | |
| ADT997-B-SET | Handpump, Hydraulic Pressure Test Generator, 0 to 10000psi (0~700)bar, 1/4BSP F with carry case (Tested with oil) | $2,958.00 | |
| ADT997-M | Handpump, Hydraulic Pressure Test Generator, 0 to 10000psi (0~700)bar, M20X1.5 F (Tested with oil) | $2,745.00 | |
| ADT997-MK | Maintenance kit for ADT997 Generator | $53.00 | |
| ADT997-M-SET | Handpump, Hydraulic Pressure Test Generator, 0 to 10000psi (0~700)bar, M20X1.5 F with carry case (Tested with oil) | $2,958.00 | |
| ADT997-N | Handpump, Hydraulic Pressure Test Generator, 0 to 10000psi (0~700)bar, 1/4NPT F (Tested with oil) | $2,745.00 | |
| ADT997-N2 | Handpump, Hydraulic Pressure Test Generator, 0 to 10000psi (0~700)bar, 1/2NPT F (Tested with oil) | $2,745.00 | |
| ADT997-N2-SET | Handpump, Hydraulic Pressure Test Generator, 0 to 10000psi (0~700)bar, 1/2NPT F with carry case (Tested with oil) | $2,958.00 | |
| ADT997-N-SET | Handpump, Hydraulic Pressure Test Generator, 0 to 10000psi (0~700)bar, 1/4NPT F with carry case (Tested with oil) | $2,958.00 |
