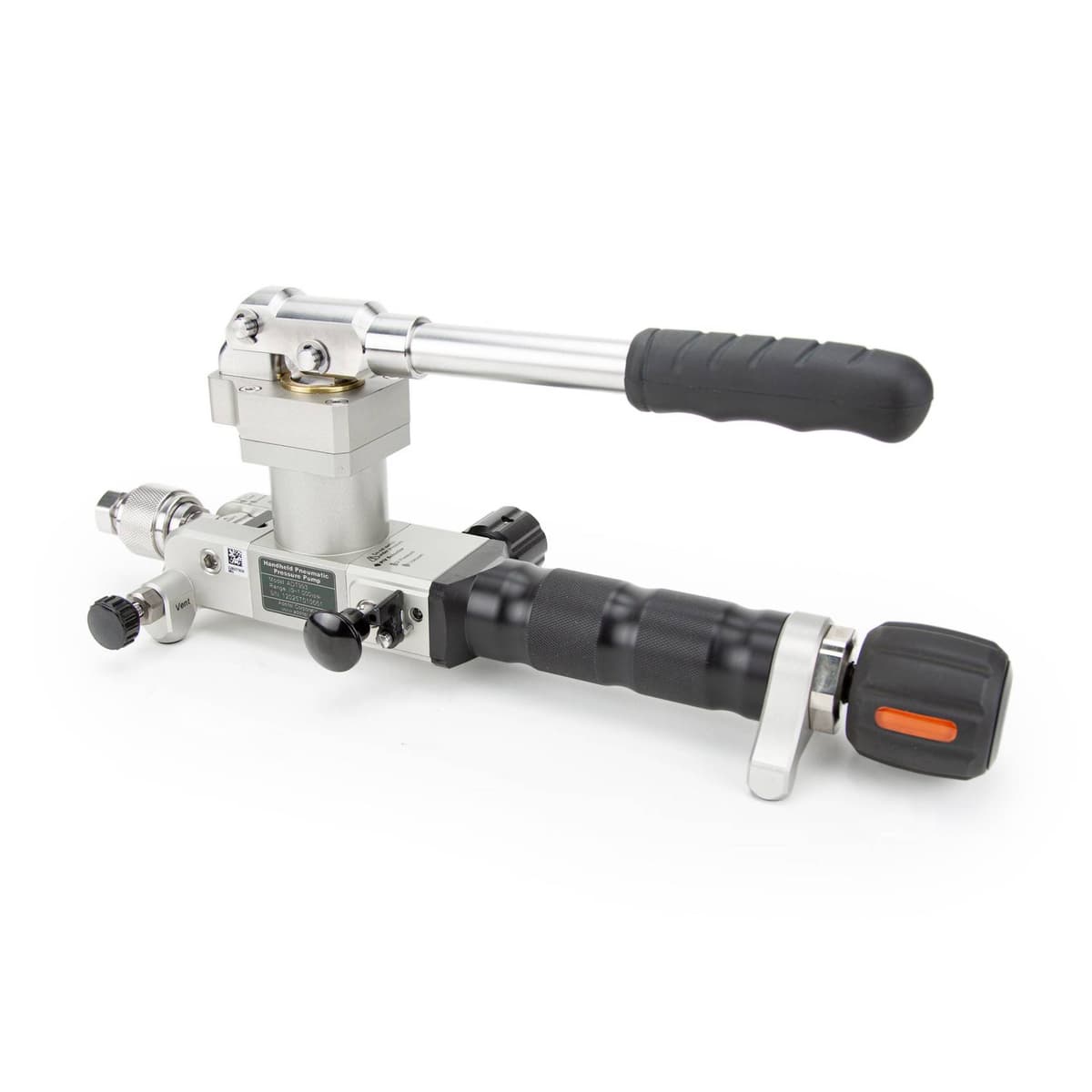

Additel 992 Handheld Pneumatic Pressure Pump
Handheld pneumatic pressure pump, 95% vacuum to 700 psi (50 bar). 3.5 lb, dual-stage pre-pressure piston, lever pressurization, 10 Pa fine adjust, four operating positions. Pumps from $1,315.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Additel 992 is a handheld pneumatic pressure pump for generating 95% vacuum to 700 psi (50 bar). A dual-stage pre-pressure piston provides a broad pressure range with less effort. Lever-type pressurization stabilizes quickly (+30 psi / 2 bar per stroke), and a fine adjustment screw sets pressure to 10 Pa (0.1 mbar). The longitudinal layout and four operating positions make it a modern replacement for traditional handheld pumps.
Media is air. The pump weighs 3.5 lb (1.6 kg). Height is 4.8 in (122 mm); base 12.6 × 4.3 in (320 × 110 mm). Port choices are 1/4 NPT, 1/2 NPT, 1/4 BSP, 1/2 BSP, or M20×1.5 female. Included are 20 O-rings, a flexible hose (maximum pressure 630 bar), and one ADT100-X-FNG female quick connector for the DUT. SET models add the 9901-992 carrying case.
Compared with the Additel 917 (bench-style pneumatic, 95% vacuum to 1,000 psi / 70 bar, 5.7 lb) the 992 is the handheld air pump — lower range, 3.5 lb, lever-type rather than screw-press. The Additel 918 is the next bench pneumatic step (1,500 psi / 100 bar). The Additel 920 is the high-pressure pneumatic pump (3,000 psi / 200 bar). The Additel 925 is the handheld hydraulic pump (6,000 psi / 400 bar on oil). This page is the 992 family only; ADT993 (1,000 psi) is a separate product.
Pumps from $1,315. SET models from $1,528. A maintenance kit (ADT992-MK) is listed with the variants.
Specifications
| Pressure | |
| Generated range | 95% vacuum to 700 psi (50 bar) |
| Media | Air |
| Adjustment resolution | 10 Pa (0.1 mbar) via fine adjustment screw |
| Pressurization | Dual-stage pre-pressure piston; lever-type, +30 psi (2 bar) per stroke |
| Minimum pre-pressure | 600 psi (40 bar) |
| Maximum load volume | 35 ml |
| Fine-adjust volume | 7.2 ml maximum |
| Connections | |
| Port types | 1/4 NPT, 1/2 NPT, 1/4 BSP, 1/2 BSP, or M20×1.5 female |
| Included connector | ADT100-X-FNG female quick connector for DUT (X matches the base model port) |
| Hose | Flexible hose included, maximum pressure 630 bar |
| Port filters | Standard port 150 μm quick-removal; air intake 100 μm quick-removal; pressure outlet 150 μm quick-release |
| General | |
| Weight | 3.5 lb (1.6 kg) |
| Dimensions | Height 4.8 in (122 mm); base 12.6 × 4.3 in (320 × 110 mm) |
| Materials | Ram/adapters SS; body SS and aluminum; seals Buna-N, PTFE, copper alloy |
| Operating positions | Four positions, including horizontal, vertical, and tilt-head |
| Included | 20 O-rings, flexible hose, ADT100-X-FNG. SET models add 9901-992 carrying case |
| Models | ADT992 port options N / N2 / B / B2 / M; optional -SET carrying case; ADT992-MK maintenance kit. No 992HV; ADT993 is a separate product |
| Warranty | 1 year |
| Family | |
| vs Additel 917 | 917 is the bench-style pneumatic: 95% vacuum to 1,000 psi (70 bar), 5.7 lb, screw-press fine adjust |
| vs Additel 918 | 918 is the next bench pneumatic step: 95% vacuum to 1,500 psi (100 bar), 5.7 lb |
| vs Additel 920 | 920 is the high-pressure pneumatic pump: 95% vacuum to 3,000 psi (200 bar) |
| vs Additel 925 | 925 is the handheld hydraulic pump: 85% vacuum to 6,000 psi (400 bar) on oil, 3.7 lb |
| General | |
| Starting price | Pumps from $1,315; SET models from $1,528 |
Videos
Documents
Ordering information
11 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| ADT992-B | Handpump, Pneumatic Pressure Test Generator, -14 to 700psi (-0.95~50)bar, 1/4BSP F | $1,315.00 | |
| ADT992-B2 | Handpump, Pneumatic Pressure Test Generator, -14 to 700psi (-0.95~50)bar, 1/2BSP F | $1,315.00 | |
| ADT992-B2-SET | Handpump, Pneumatic Pressure Test Generator, -14 to 700psi (-0.95~50)bar, 1/2BSP F with carry case | $1,528.00 | |
| ADT992-B-SET | Handpump, Pneumatic Pressure Test Generator, -14 to 700psi (-0.95~50)bar, 1/4BSP F with carry case | $1,528.00 | |
| ADT992-M | Handpump, Pneumatic Pressure Test Generator, -14 to 700psi (-0.95~50)bar, M20X1.5 F | $1,315.00 | |
| ADT992-MK | Maintenance kit for ADT992 and ADT993 Generator | $111.00 | |
| ADT992-M-SET | Handpump, Pneumatic Pressure Test Generator, -14 to 700psi (-0.95~50)bar, M20X1.5 F with carry case | $1,528.00 | |
| ADT992-N | Handpump, Pneumatic Pressure Test Generator, -14 to 700psi (-0.95~50)bar, 1/4NPT F | $1,315.00 | |
| ADT992-N2 | Handpump, Pneumatic Pressure Test Generator, -14 to 700psi (-0.95~50)bar, 1/2NPT F | $1,315.00 | |
| ADT992-N2-SET | Handpump, Pneumatic Pressure Test Generator, -14 to 700psi (-0.95~50)bar, 1/2NPT F with carry case | $1,528.00 | |
| ADT992-N-SET | Handpump, Pneumatic Pressure Test Generator, -14 to 700psi (-0.95~50)bar, 1/4NPT F with carry case | $1,528.00 |
