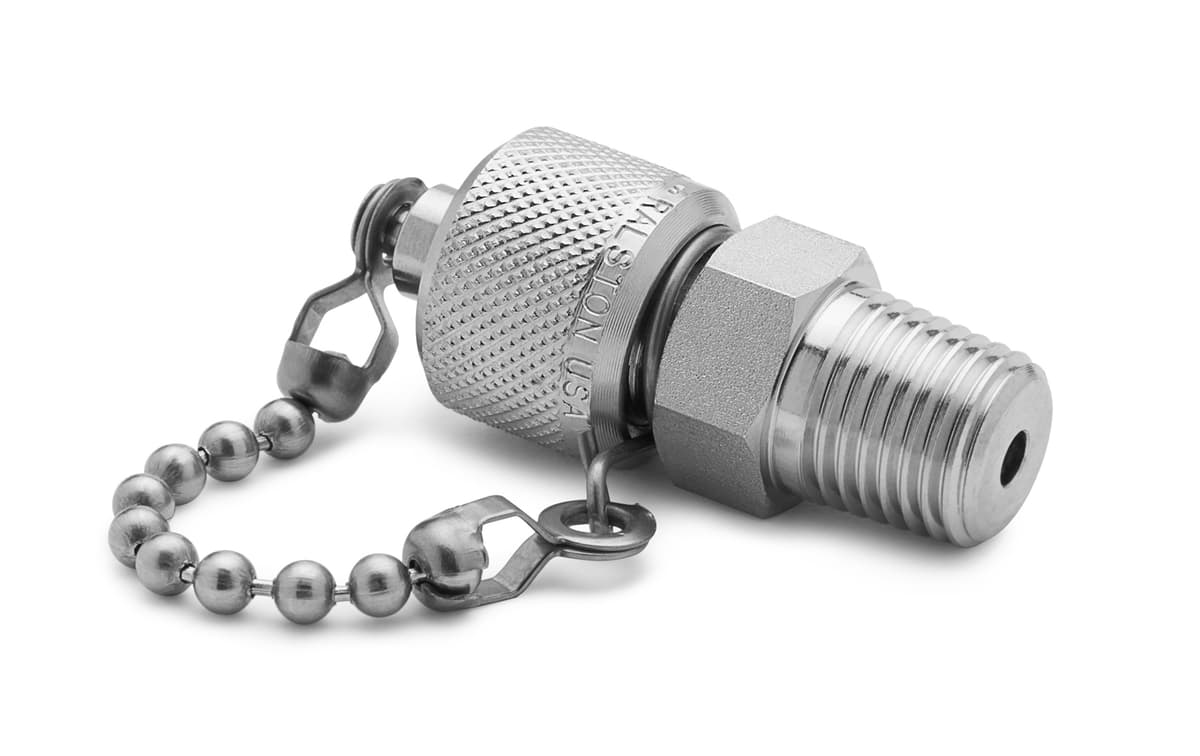

Ralston NPT Male Quick-test XT Fittings
Male NPT × male Quick-test XT fittings with cap & chain — permanent install up to 10,000 psi
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
NPT Male Quick-test XT Fittings connect female NPT process connections to Quick-test XT 10,000 psi hoses for permanent installation.
- Connect to pressure transmitters, EFMs, flow computers and other NPT devices under test using thread sealant for a permanent connection
- Cap and chain make calibration easy by connecting and disconnecting without a wrench or thread sealant
- Not compatible with standard QT or QS hoses — use Quick-test XT hoses
- Working pressure up to 10,000 psi
- Made in USA
Part of the Ralston Quick-test system of safe, stable, leak-free connections without a wrench.
Shipping and tax are confirmed when we review your order.
OEM family: NPT Male Quick-test XT Fittings (https://www.ralstoninst.com/npt-male-quick-test-xt-fittings).
Specifications
| Family | NPT Male Quick-test XT Fittings |
| Process connection | Male NPT (1/8 in or 1/4 in, ASME B1.20.1) |
| Hose connection | Male Quick-test XT with cap and chain |
| Check valve | No |
| Max pressure | 10,000 psi / 700 bar / 70 MPa |
| Max operating temperature | 225 °F / 105 °C |
| Min operating temperature | 0 °F / -18 °C |
| Materials | Stainless steel |
| Seal materials | Teflon, Viton |
| Country of origin | USA |
Videos
Build your part number
Configure your XTFT
Pick your options and we'll build the exact part number with a list-price estimate.
Select a model to build your part number.
Choose NPT size. These XTFT fittings connect female NPT devices to Quick-test XT hoses (not QT/QS hoses). Shipping and tax are confirmed when we review your order.
Ordering information
2 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| XTFT-1MS0 | 1/8" male NPT x male Quick-test XT, no check-valve, with cap and chain, S.S. | $94.48 | |
| XTFT-2MS0 | 1/4" male NPT x male Quick-test XT, no check-valve, with cap and chain, S.S. | $96.12 |
