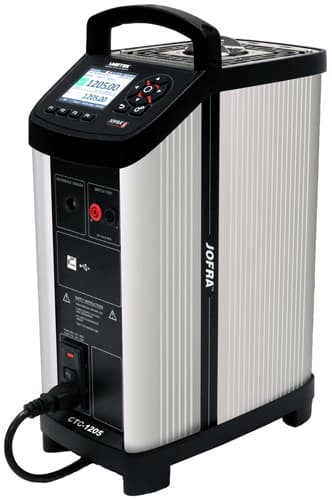

JOFRA CTC-1205 Compact Temperature Calibrator
JOFRA CTC-1205 high-temperature compact dry-block calibrator, 100 to 1205°C, for industrial sensors such as those used in steel processing.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The CTC-1205 covers 100 to 1205°C (212 to 2201°F), the high end of the CTC Series. Official documentation describes it as a high-temperature industrial-class calibrator with an external-reference input on C models. The JOFRA CTC Series is a compact dry-block calibrator for fast, accurate on-site work in oil and gas, pharmaceuticals, food processing, and HVAC. Across five models the series covers −25 to 1205°C (−13 to 2201°F), with accuracy up to ±0.2°C and stability of ±0.04°C. A large color display and one-key, one-function buttons provide automatic switch testing and auto-stepping. The CTC-652 offers 190 mm immersion depth for long sensors, and all C models include an input for an external reference sensor. MVI (Mains Voltage Immunity) circuitry maintains stability when supply voltage varies.
Specifications
| Temperature | |
| Range | 100 to 1205°C / 212 to 2201°F (official CTC-1205 datasheet) |
| Accuracy | |
| Accuracy | ±2°C / ±3.6°F with internal or external reference (official CTC-1205 datasheet) |
| Stability | |
| Stability | ±0.1°C / ±0.18°F (official CTC-1205 datasheet) |
Documents
Build your part number
Configure your CTC1205
Pick your options and we'll build the exact part number with a list-price estimate.
Select a model version, power supply, mains cable to build your part number.
Well / insert codes and prices are from the official JOFRA insert table for this well. Shipping and tax are confirmed when we review your order.
Ordering information
43 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| CTC1205:acc:CR | Solid Protective Carrying Case & Support rod set | $1,189.00 | |
| CTC1205:acc:CX | Solid Protective Carrying Case | $768.00 | |
| CTC1205:acc:SR | Support Rod Set | $449.00 | |
| CTC1205:acc:XX | No Accessories (standard delivery) | Request a quote | |
| CTC1205:base:CTC1205 | 100°C to 1205°C with Standard Accessories | Request a quote | |
| CTC1205:cable:A | European, 230V | Request a quote | |
| CTC1205:cable:B | USA / CANADA, 115V | Request a quote | |
| CTC1205:cable:C | UK, 240V | Request a quote | |
| CTC1205:cable:D | South Africa, 220V | Request a quote | |
| CTC1205:cable:E | Italy, 220V | Request a quote | |
| CTC1205:cable:F | Australia, 240V | Request a quote | |
| CTC1205:cable:G | Denmark, 230V | Request a quote | |
| CTC1205:cable:H | Switzerland, 230V | Request a quote | |
| CTC1205:cable:I | Israel, 230V | Request a quote | |
| CTC1205:cert:F | Traceable Certificate to International Standards (Standard delivery) | Request a quote | |
| CTC1205:cert:FS-TCN | Traceable System Calibration Certificate (Std. delivery w. STSTCN1205) | Request a quote | |
| CTC1205:cert:H | Accredited Certificate - ISO17025 | $674.00 | |
| CTC1205:cert:HS-TCN | Accredited System Certificate - ISO17025 (STSTCN1205) | $674.00 | |
| CTC1205:insert:NON | Without Insert (Standard delivery) | Request a quote | |
| CTC1205:insert:SIM | Complete Set of Imperial Inserts - Inch | $3,798.00 | |
| CTC1205:insert:SMM | Complete Set of Metric Inserts - MM | $5,422.00 | |
| CTC1205:insert:UNX | 1 x Undrilled Insert (Please see Insert Selection for correct code) | $361.00 | |
| CTC1205:insert:XXX | 1 x Single Hole Insert (Please see Insert Selection for correct code) | $722.00 | |
| CTC1205:opt:60B312 | 3,15 AT 5 x 20 fuse, IEC 127 | $13.00 | |
| CTC1205:opt:60B313 | 6,3 AT 5 x 20 fuse, IEC 127 | $13.00 | |
| CTC1205:opt:60F135 | Mains cable - USA / Canada, 115VAC | $57.00 | |
| CTC1205:opt:60F136 | Mains cable - UK, 240VAC | $57.00 | |
| CTC1205:opt:60F137 | Mains cable - South Africa, 220VAC | $57.00 | |
| CTC1205:opt:60F138 | Mains cable - Italy, 220VAC | $57.00 | |
| CTC1205:opt:60F139 | Mains cable - Australia, 240VAC | $57.00 | |
| CTC1205:opt:60F140 | Mains cable - European, 230VAC | $57.00 | |
| CTC1205:opt:60F141 | Mains cable - Denmark, 230VAC | $57.00 | |
| CTC1205:opt:60F142 | Mains cable - Switzerland, 220VAC | $57.00 | |
| CTC1205:opt:60F143 | Mains cable - Israel, 230VAC | $57.00 | |
| CTC1205:opt:60F170 | Tool for Insert | $40.00 | |
| CTC1205:opt:60F174 | Cleaning Brushes - 6 mm - Package of 3 pcs | $214.00 | |
| CTC1205:opt:60G032 | Rubber foot | $13.00 | |
| CTC1205:power:115 | 115VAC, 50/60Hz | Request a quote | |
| CTC1205:power:230 | 230VAC, 50/60Hz | Request a quote | |
| CTC1205:ref:R30 | STS-TC, Thermocouple Reference Probe, 90° Angled probe, STSTCNA1205 | $1,160.00 | |
| CTC1205:ref:XX | Without Reference Sensor (standard delivery) | Request a quote | |
| CTC1205:version:A | Basic Model, No Inputs | $11,809.00 | |
| CTC1205:version:C | Reference Sensor Input | $13,742.00 |
