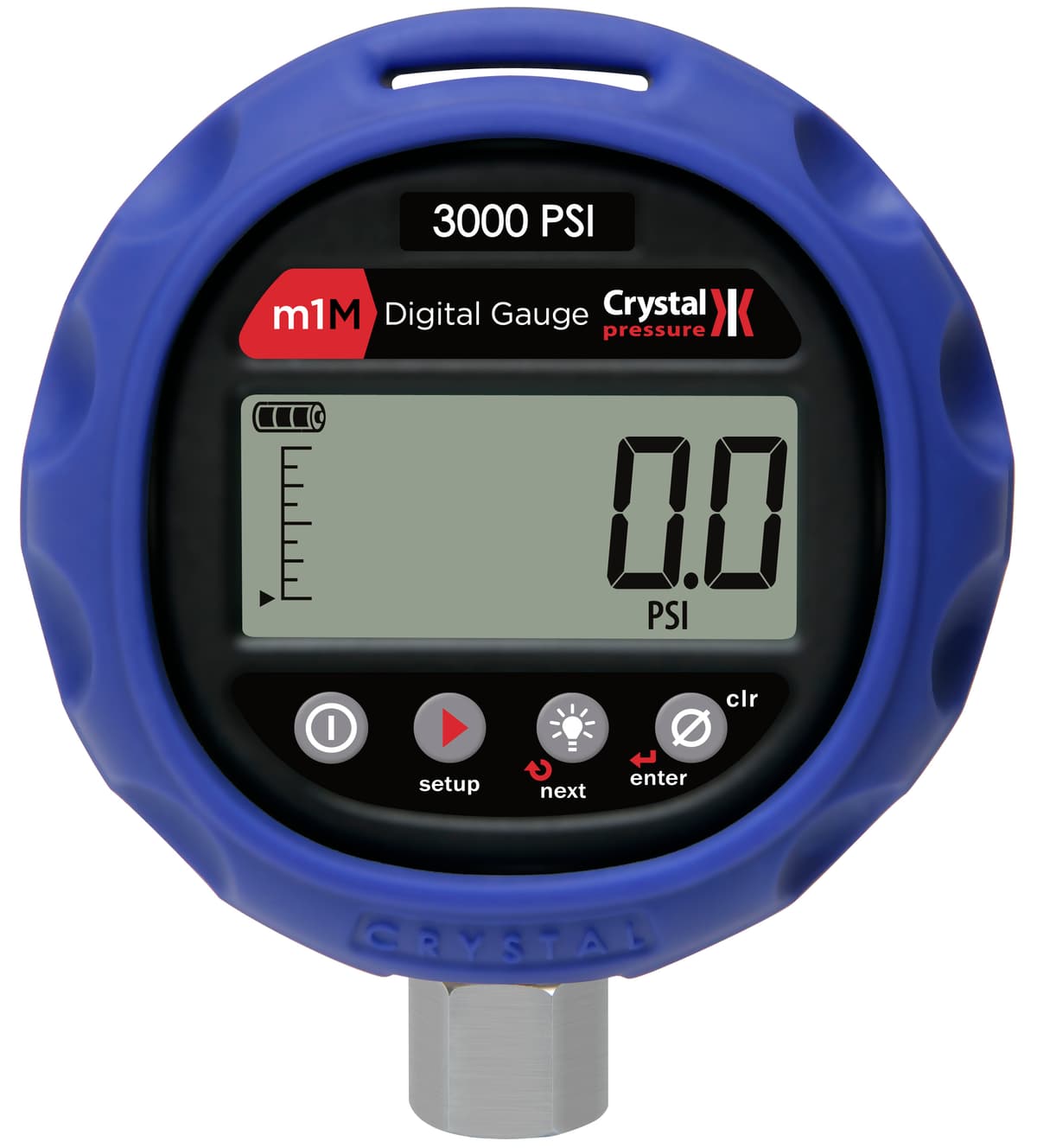

Crystal m1M Maritime Pressure Gauge
DNV-approved Crystal digital pressure gauge for maritime and offshore work. 0.25% of reading accuracy from −10 to 50°C, a 3-year calibration interval, up to 3 years of battery life, and a protective boot with a replaceable CPF adapter.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Crystal m1M is a DNV-approved maritime digital pressure gauge. Official AMETEK copy: it maintains 0.25% of reading accuracy from −10 to 50°C, with a 3-year recommended calibration interval, DNV approval, and an intuitive user interface. Accuracy is unaffected by dropping, over-pressure, vibration, or rapid pressure changes.
Datasheet 5526.A: 0 to 20% of range is ±(0.05% of full scale) and 20 to 110% is ±(0.25% of reading), including linearity, hysteresis, repeatability, temperature, and three-year stability. Vacuum is ±(0.5% of full scale) on 300 psi / 20 bar / 2 MPa models (full scale = −14.5 psig). Ranges are 300 psi and 3,000 psi (and 20 bar / 200 bar / 2 MPa / 20 MPa equivalents). The 5-digit, 16.8 mm LCD is sunlight readable with backlight at 4 readings/second.
Power is 2× AA, 900 hours typical; keypad-selectable extended life reaches 3,000 to 30,000 hours. Enclosure is IP65 polyester/polycarbonate, 331 g with batteries and the included protective boot (P/N 3436). Connection is Crystal CPF female (U.S. Patent 8,794,677) with a 1/4 in MNPT adapter included unless BSP or M20 is specified. Features: averaging (2–20 samples), vertical bar graph, and min/max capture. Every m1M ships with an ISO 17025 / A2LA (#2601.01), NIST-traceable calibration report with data at five temperatures. Approved as a portable marine test instrument under DNV Rules for Classification of Ships, High Speed & Light Craft, and Offshore Standards.
Specifications
| Pressure | |
| Accuracy | 0–20% of range ±(0.05% FS); 20–110% ±(0.25% of reading); 3-year, includes temperature |
| Vacuum | ±(0.5% FS) on 300 psi / 20 bar / 2 MPa; FS = −14.5 psig |
| Ranges | 300 psi and 3,000 psi (20 bar / 200 bar / 2 MPa / 20 MPa) |
| Environment | |
| Operating temperature | −10 to 50°C (14 to 122°F); no change in accuracy after zero |
| Display | |
| Screen | 5 digits, 16.8 mm (0.66 in); 4 readings/second; sunlight-readable backlight |
| Power | |
| Batteries | 2× AA; 900 hours typical; extended 3,000–30,000 hours at reduced rate |
| Enclosure | |
| Housing | IP65 polyester/polycarbonate; 331 g with batteries and boot (P/N 3436 included) |
| Connection | |
| Port | Crystal CPF female; 1/4 in MNPT adapter included unless BSP or M20 specified |
| Features | |
| Special | Averaging 2–20 samples; vertical bar graph; min (LO) / max (HI) capture |
| Approvals | |
| Marine / cal | DNV Ships, High Speed & Light Craft, Offshore; ISO 17025 / A2LA #2601.01 |
| General | |
| Sources | AMETEK m1M product page + official datasheet digital-pressure-gauge-m1m-data-sheet-us.pdf (5526.A) |
Documents
Ordering information
15 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| 129243 | Rugged carrying case for system B / C | $662.00 | |
| m1M:200BAR | 200 bar Gauge | Request a quote | |
| m1M:20BAR | 20 bar Gauge | Request a quote | |
| m1M:20MPA | 20 MPa Gauge | Request a quote | |
| m1M:2MPA | 2 MPa Gauge | Request a quote | |
| m1M:300PSI | 300 psi Gauge | Request a quote | |
| m1M:3KPSI | 3K psi Gauge | Request a quote | |
| m1M:BHM | System B (pneumatic) Maritime Kit | $1,637.00 | |
| m1M:BHX | System B (pneumatic) -0.91 to 40 bar | $2,291.00 | |
| m1M:BSP | 1/4 BSP Male Pressure Fitting | Request a quote | |
| m1M:CXM | System C (oil) Maritime Kit - 0 to 200 bar | $1,300.00 | |
| m1M:CXX | System C (oil) 0 to 200 bar | $1,940.00 | |
| m1M:M1M | Maritime Pressure Gauge | $1,114.00 | |
| m1M:M20 | M20 x 1.5 Metric Male Pressure Fitting | $87.00 | |
| m1M:NONE | Pump System Only | $285.00 |
