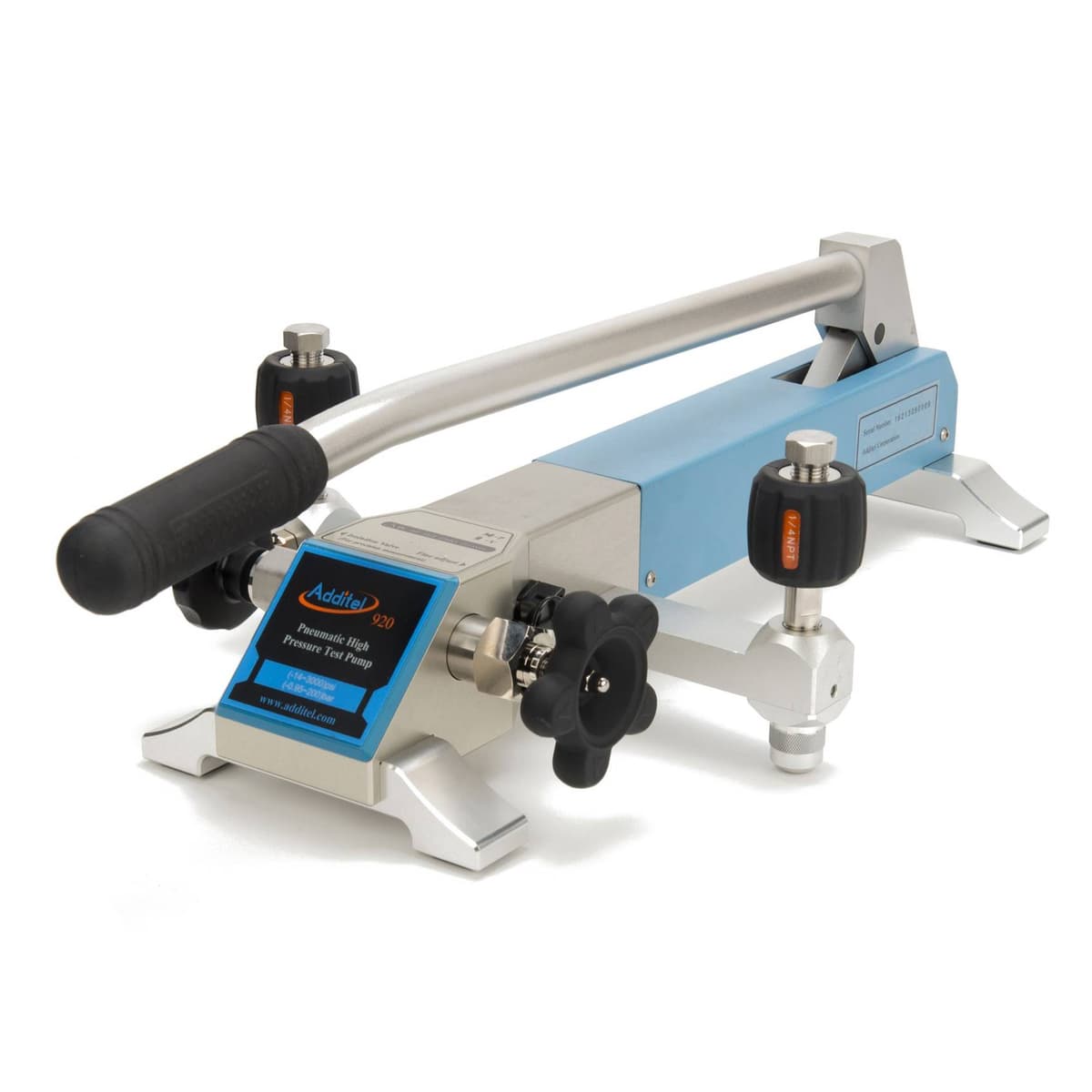

Additel 920 / 920HV Pneumatic High Pressure Test Pump
Hand-operated pneumatic high-pressure test pump — 95% vacuum to 3,000 psi (200 bar) in about 40 seconds. Screw-press fine adjust to 10 Pa, shut-off valve, built-in gas-liquid isolator, two hand-tight quick connectors (no PTFE tape or wrenches). ADT920 and high-volume ADT920HV. ADT920 from $6,649.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Additel 920 and 920HV are hand-operated pneumatic high-pressure test pumps: 95% vacuum to 3,000 psi (200 bar). A long lever generates 3,000 psi (200 bar) in about 40 seconds. A high-quality screw press fine-adjusts pressure to 10 Pa (0.1 mbar / 0.001 psi). A shut-off valve holds the pressure stable during calibration. A built-in gas-liquid isolator keeps moisture and dirt out of the pump; residual liquid from the device under test is pushed out and collected on pressure release. Two hand-tight quick connectors attach the reference and the unit under test without PTFE tape or wrenches.
ADT920HV is the high-volume sibling on the same 3,000 psi range — a larger piston (7.02 in³ / 115 ml versus 3.7 in³ / 60 ml on the 920) and a slightly heavier chassis (15.9 lb / 7.2 kg versus 14.3 lb / 6.5 kg). Both are comparison test pumps for calibrating pressure instruments on air.
In Additel's 91x/92x bench-pump line the 917 is the 1,000 psi (70 bar) pneumatic, the 918 goes to 1,500 psi (100 bar), and the 920 / 920HV is the high-pressure air pump to 3,000 psi (200 bar). The 925 is a hydraulic handheld to 6,000 psi (400 bar) on oil or water — different media, not a substitute for this air pump. Those sibling pages are not edited here.
Port types are 1/4 NPT, 1/2 NPT, 1/4 BSP, 1/2 BSP, or M20×1.5 female. Optional carrying case on -SET models. Media is air. One-year warranty. ADT920 from $6,649; ADT920HV from $7,119.
Specifications
| Pressure | |
| Generated range | 95% vacuum to 3,000 psi (200 bar) positive pressure — ADT920 and ADT920HV |
| Media | Air (oil-free applications: contact Additel) |
| Generation time | 3,000 psi (200 bar) in about 40 seconds |
| Fine adjustment | Screw press; resolution 10 Pa (0.1 mbar / 0.001 psi) |
| Stability | Shut-off valve isolates the circuit for stable calibration |
| Piston volume (920) | 3.7 in³ (60 ml) |
| Piston volume (920HV) | 7.02 in³ (115 ml) — high-volume pump |
| Connections | |
| Quick connectors | Two hand-tight connectors (reference + DUT); no PTFE tape or wrenches |
| Port types | 1/4 NPT, 1/2 NPT, 1/4 BSP, 1/2 BSP, or M20×1.5 female |
| Construction | |
| Gas-liquid isolator | Built-in; residual liquid is collected and pushed out on pressure release |
| Materials | Ram/adapters SS; body SS and aluminum; seals Buna-N, F357, PTFE, copper alloy |
| General | |
| Size | Height 7.00 in (178 mm); base 21.26 × 10.63 in (540 × 270 mm) |
| Weight (920) | 14.3 lb (6.5 kg) |
| Weight (920HV) | 15.9 lb (7.2 kg) |
| What's included | 20 O-rings; carrying case on 920-X-SET / 920HV-X-SET models only |
| Maintenance kits | ADT920-MK and ADT920HV-MK (priced separately) |
| Warranty | 1 year |
| Starting price | ADT920 from $6,649; ADT920HV from $7,119 |
Videos
Documents
Ordering information
22 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| ADT920-B | Pneumatic Pressure Test Generator, -14 to 3000psi (-0.95~200)bar,1/4BSP F | $6,649.00 | |
| ADT920-B2 | Pneumatic Pressure Test Generator, -14 to 3000psi (-0.95~200)bar,1/2 BSP F | $6,649.00 | |
| ADT920-B2-SET | Pneumatic Pressure Test Generator, -14 to 3000psi (-0.95~200)bar,1/2 BSP F with carrying case | $7,412.00 | |
| ADT920-B-SET | Pneumatic Pressure Test Generator, -14 to 3000psi (-0.95~200)bar,1/4BSP F with carrying case | $7,412.00 | |
| ADT920HV-B | Pneumatic Pressure Test Pump, High Volume -14 to 3000psi (-0.95~200)bar,1/4BSP F | $7,119.00 | |
| ADT920HV-B2 | Pneumatic Pressure Test Pump, High Volume -14 to 3000psi (-0.95~200)bar,1/2BSP F | $7,119.00 | |
| ADT920HV-B2-SET | Pneumatic Pressure Test Generator, High Volume -14 to 3000psi (-0.95~200)bar,1/2BSP F with carrying case | $7,891.00 | |
| ADT920HV-B-SET | Pneumatic Pressure Test Generator, High Volume -14 to 3000psi (-0.95~200)bar,1/4BSP F with carrying case | $7,891.00 | |
| ADT920HV-M | Pneumatic Pressure Test Pump, High Volume -14 to 3000psi (-0.95~200)bar,M20X1.5 F | $7,119.00 | |
| ADT920HV-MK | Maintenance Kit for Additel 920 High Volume Pump | $121.00 | |
| ADT920HV-M-SET | Pneumatic Pressure Test Generator, High Volume -14 to 3000psi (-0.95~200)bar,M20X1.5 F with carrying case | $7,891.00 | |
| ADT920HV-N | Pneumatic Pressure Test Generator, High Volume, -14 to 3000psi(-0.95~200)bar, 1/4NPT F | $7,119.00 | |
| ADT920HV-N2 | Pneumatic Pressure Test Pump, High Volume -14 to 3000psi (-0.95~200)bar, 1/2NPT F | $7,119.00 | |
| ADT920HV-N2-SET | Pneumatic Pressure Test Generator, High Volume -14 to 3000psi (-0.95~200)bar,1/2NPT F with carrying case | $7,891.00 | |
| ADT920HV-N-SET | Pneumatic Pressure Test Generator, High Volume -14 to 3000psi (-0.95~200)bar,1/4NPT F with carrying case | $7,891.00 | |
| ADT920-M | Pneumatic Pressure Test Generator, -14 to 3000psi (-0.95~200)bar,M20X1.5 F | $6,649.00 | |
| ADT920-MK | Maintenance kit for ADT920 Generator | $129.00 | |
| ADT920-M-SET | Pneumatic Pressure Test Generator, -14 to 3000psi (-0.95~200)bar,M20X1.5 F with carrying case | $7,412.00 | |
| ADT920-N | Pneumatic Pressure Test Generator, -14 to 3000psi (-0.95~200)bar,1/4NPT F | $6,649.00 | |
| ADT920-N2 | Pneumatic Pressure Test Generator, -14 to 3000psi (-0.95~200)bar, 1/2NPT F | $6,649.00 | |
| ADT920-N2-SET | Pneumatic Pressure Test Generator, -14 to 3000psi (-0.95~200)bar, 1/2NPT F with carrying case | $7,412.00 | |
| ADT920-N-SET | Pneumatic Pressure Test Generator, -14 to 3000psi (-0.95~200)bar,1/4NPT F with carrying case | $7,412.00 |
