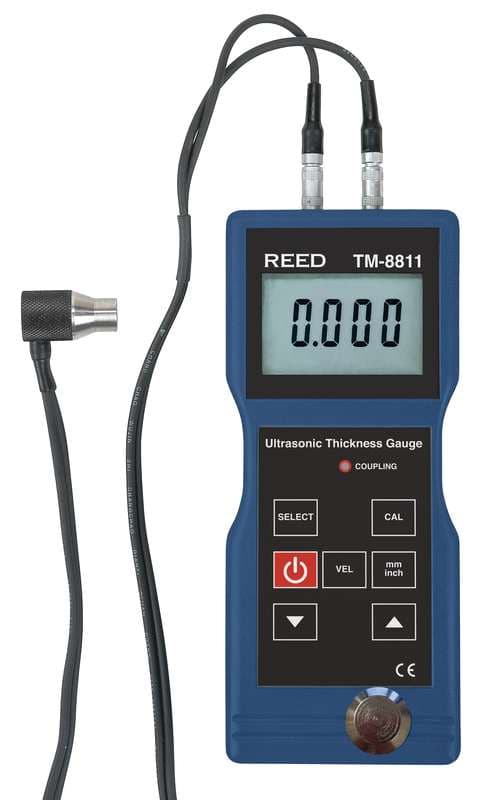

Reed TM-8811 Thickness Gauge
REED TM-8811 Ultrasonic Thickness Gauge: measures the thickness of steel, cast iron, aluminum, red copper, zinc, quartz glass, polyethylene, PVC, grey cast iron and nodular cast iron; range 0.05 to 7.9" (1.5 to 200mm).
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED TM-8811 is an ultrasonic thickness gauge for field and industrial use. Measures the thickness of steel, cast iron, aluminum, red copper, zinc, quartz glass, polyethylene, PVC, grey cast iron and nodular cast iron; large, easy-to-read LCD display; displays sound velocity at the touch of a button; automatic material calibration; and user selectable unit of measure (in/mm).
Published specifications include Accuracy: ±(0.5% + 0.1mm); Measuring Range: 0.05 to 7.9" (1.5 to 200mm); Resolution: 0.001"/0.1mm; Velocity Range: 500 to 9000 m/s.
Low battery indicator. Includes ultrasonic couplant gel, probe, hard carrying case and batteries. Power supply: 4 x AA Batteries. Product certifications: CE. Operating Temperature: 32 to 122°F (0 to 50°C). Storage Temperature: -4 to 140°F (-20 to 60°C).
Specifications
| Accuracy | |
| Accuracy | ±(0.5% + 0.1mm) |
| Ranges | |
| Measuring Range | 0.05 to 7.9" (1.5 to 200mm) |
| Resolution | 0.001"/0.1mm |
| Velocity Range | 500 to 9000 m/s |
| Sampling Time | Less than 1 sec. |
| Temperature | 32 to 104°F (0 to 40°C) |
| Power | |
| Power Supply | 4 x AA Batteries |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity | 20 to 80% TM-8811 Ultrasonic Thickness Gauge |
| General | |
| Compatible Materials | Steel, cast iron, aluminum, red copper, zinc, quartz glass, polyethylene, PVC, grey cast iron and nodular cast iron |
| Display | 4-Digit, LCD |
| Probe Length | 3' (36") |
| Probe Diameter | 0.4" (10mm) |
| Product Certifications | CE |
| Dimensions | 6.3 x 2.7 x 1.25" TM-8811PROBE Replacement Probe (161 x 69 x 32mm) R7950 Ultrasonic Couplant Gel |
| Weight | 9oz (258g) R7950/5L Ultrasonic Couplant Gel, 5L |
| Includes | R8888 Hard Carrying Case TM-8811 Ultrasonic Thickness Ultrasonic Thickness Gauge with 5-Step |
Documents
Ordering information
2 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| TM-8811-KIT | ULTRASONIC THICKNESS GAUGE WITH 5-STEP CALIBRATION BLOCK | $655.00 | |
| TM-8811-NIST | THICKNESS GAUGE, ULTRASONIC, 0.05/7.9", 1.5/200MM W/NIST CERT | $659.00 |
