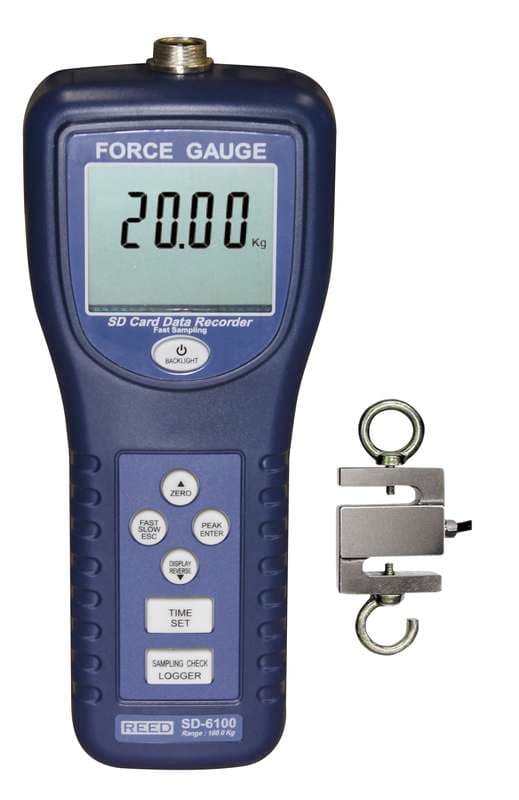

Reed SD-6100 Data Logging Force Gauge
REED SD-6100 Force Gauge Datalogger, 100kg: measures tension and compression (Compression Test Fixture required for push test); range 100kg 220.5lb 980.6N. Records in Peak hold or Normal mode.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED SD-6100 is a force gauge datalogger, 100kg for field and industrial use. Measures tension and compression (Compression Test Fixture required for push test); records in Peak hold or Normal mode; fast/Slow response selection; full capacity tare (zero) capability; and force is measured in kg, lb or Newtons.
Published specifications include Accuracy: ±(0.5% rdg + 2 dgt.); Measuring Range: 100kg 220.5lb 980.6N; Resolution: 0.15kg / 0.02lb / 0.02N; Overrange Indicator: Yes (Audible alarm at 100kg).
Large, easy-to-read backlit display. Reversible display ensures legible readings regard direction. Real-time datalogger with integral SD memory card. User selectable sampling rate from 1 to 3600 secon.
Specifications
| Accuracy | |
| Accuracy | ±(0.5% rdg + 2 dgt.) |
| Ranges | |
| Measuring Range | 100kg 220.5lb 980.6N |
| Resolution | 0.15kg / 0.02lb / 0.02N |
| Response Time | Less than 1 sec. |
| Overrange Indicator | Yes (Audible alarm at 100kg) |
| General | |
| Full Scale Deflection | Less than 1mm |
| Display | 4-digit LCD |
| Datalogging Capabilities | Yes |
| Date Stamp | Yes |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| SD-6100-NIST | DATA LOGGING FORCE GAUGE, 100KG W/NIST CERT | $1,140.00 |
