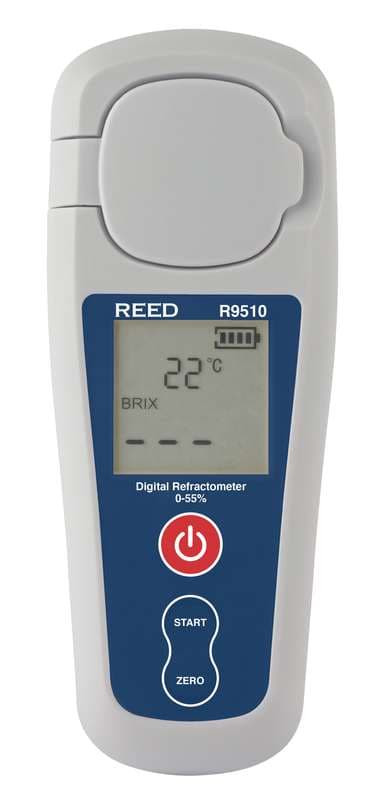

Reed R9510 Digital Refractometer
REED R9510 Digital Refractometer, 0 to 55% Brix: 0 to 55% Brix measurement range with 0.1% resolution; range Brix: 0 to 55% Temperature: 50 to 104°F (10 to 40°C). Ergonomically designed for one-handed operation.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R9510 is a digital refractometer, 0 to 55% brix for field and industrial use. 0 to 55% Brix measurement range with 0.1% resolution; ergonomically designed for one-handed operation; dual LCD simultaneously displays % Brix and temperature; sapphire prism with abrasion and corrosion-resistant coating; and automatic Temperature Compensation (ATC).
Published specifications include Accuracy: Brix: ±0.2%; Measurement Range: Brix: 0 to 55% Temperature: 50 to 104°F (10 to 40°C); Resolution: Brix: 0.1%; Compensation Range: 50 to 104°F (10 to 40°C).
Built-in Zero calibration. Rechargeable battery. Includes USB cable, cleaning cloth and solution/sample applicator REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinst. Power supply: 750mAh rechargeable. Product certifications: CE, IP54.
Specifications
| Accuracy | |
| Accuracy | Brix: ±0.2% |
| Ranges | |
| Measurement Range | Brix: 0 to 55% Temperature: 50 to 104°F (10 to 40°C) |
| Resolution | Brix: 0.1% |
| Temperature | 1°F (1°C) |
| Temperature | ±1°F (1°C) |
| Compensation Range | 50 to 104°F (10 to 40°C) |
| Power | |
| Power Supply | 750mAh rechargeable |
| Battery Life | 40 hours |
| General | |
| Sample Volume | 0.3mL |
| Measurement Time | 3 seconds |
| Auto Shut-off | 2 minutes |
| Charge Time | 3.5 hours |
| Product Certifications | CE, IP54 |
| Dimensions | 5.5 x 2.2 x 1.38" (140 x 55 x 35mm) |
| Weight | 0.19lbs (84g) |
