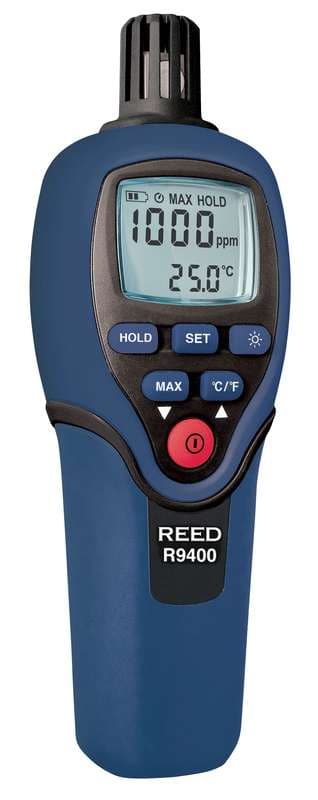

Reed R9400 Carbon Monoxide Meter With Temp
REED R9400 Carbon Monoxide Meter with Temperature: backlit LCD displays CO levels from 0 to 1000ppm and ambient temperature; range 1 to 1000ppm. User adjustable alarm limit (audible beep frequency in- creases as CO level rises).
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R9400 is a carbon monoxide meter with temperature for field and industrial use. Backlit LCD displays CO levels from 0 to 1000ppm and ambient temperature; user adjustable alarm limit (audible beep frequency in- creases as CO level rises); quick response and high accuracy; data hold and max functions; and self test sequence on start-up.
Published specifications include Carbon Monoxide Accuracy: ±5% or ±5ppm; Temperature Accuracy: ±1.5°F (0.8°C); Carbon Monoxide Measuring Range: 1 to 1000ppm; Carbon Monoxide Resolution: 1ppm.
Low battery indicator and auto shut off. Includes soft carrying case and batteries REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstru. Power supply: 4 AA Batteries. Product certifications: CE. Operating Temperature: 32 to 122°F (0 to 50°C). Storage Temperature: 14 to 140°F (-10 to 60°C).
Specifications
| Accuracy | |
| Carbon Monoxide Accuracy | ±5% or ±5ppm |
| Temperature Accuracy | ±1.5°F (0.8°C) |
| Ranges | |
| Carbon Monoxide Measuring Range | 1 to 1000ppm |
| Carbon Monoxide Resolution | 1ppm |
| Sensor Type | Stabilized electrochemical |
| Temperature Measuring Range | -4 to 158°F (-20 to 70°C) |
| Temperature Resolution | 0.1°F (0.1°C) |
| Sensor Type | Thermistor |
| Response Time | 2x per sec. |
| Power | |
| Power Supply | 4 AA Batteries |
| Battery Life | Approx. 200 hours |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity Range | 10-90% |
| General | |
| Display | 4-digit, dual LCD |
| Alarm | Audible (buzzer) |
| Alarm Limit | User Adjustable |
| Warm-up Time | 60 seconds |
| Auto Shut-off | Yes (after 30 mins, off) |
| Product Certifications | CE |
| Dimensions | 7.5 x 2.6 x 1.7" (190 x 65 x 45mm) |
| Weight | 8.3oz (235g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R9400-NIST | CARBON MONOXIDE METER WITH TEMP W/NIST CERT | $389.00 |
