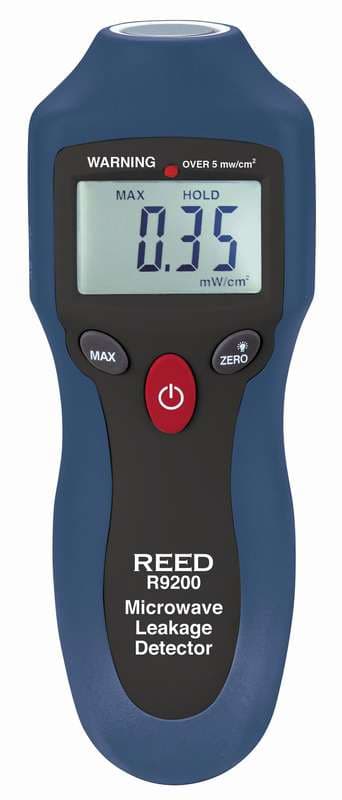

Reed R9200 Microwave Leakage Detector
REED R9200 Microwave Leakage Detector: detects very low levels of microwave leakage; range 0 to 9.99 mW/cm2. Quick response and high accuracy.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R9200 is a microwave leakage detector for field and industrial use. Detects very low levels of microwave leakage; quick response and high accuracy; designed for one-handed operation; audible (beep) and visual (flashing LED) alarms at 5 mW/cm2; and 4-digit, backlit LCD display.
Published specifications include Accuracy: ±1mW/cm2; Measuring Range: 0 to 9.99 mW/cm2; Resolution: 0.01 mW/cm2.
Max hold function and low battery indicator. Zero button for quick adjustment. Includes soft carrying case and battery. Power supply: 9V Battery. Product certifications: CE. Operating Temperature: 32 to 122°F (0 to 50°C).
Specifications
| Accuracy | |
| Accuracy | ±1mW/cm2 |
| Ranges | |
| Measuring Range | 0 to 9.99 mW/cm2 |
| Resolution | 0.01 mW/cm2 |
| Operating Frequency | 2.4GHz |
| Response Time | 2x per sec. |
| Power | |
| Power Supply | 9V Battery |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity | 10-90% |
| General | |
| Display | 4-digit LCD |
| Alarm | Audible (buzzer) and Visual (LED Light) |
| Alarm Limit | 5 mW/cm2 |
| Product Certifications | CE |
| Dimensions | 6.3 x 2.4 x 1.7" (160 x 60 x 42mm) |
| Weight | 5.3 oz (151g) |
