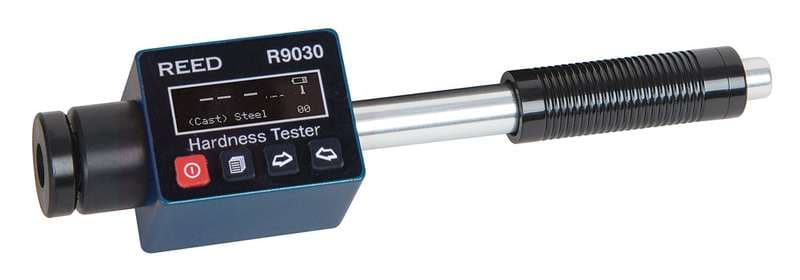

Reed R9030 Hardness Tester
REED R9030 Pen-Style Hardness Tester: measures a wide range of materials including; cast steel, alloy steel, stainless steel, aluminum, bronze, copper and cast irons; range HRA: 59 to 85.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R9030 is a pen-Style hardness tester for field and industrial use. Measures a wide range of materials including; cast steel, alloy steel, stainless steel, aluminum, bronze, copper and cast irons; measures 7 types of hardness scales; Rockwell (HRC, HRB, HRA), Brinell (HB), Leeb (HL), Vickers (HV) and Shore (HS); compact pen style design; bright OLED display; and real-time clock and internal memory stores up to 350 measurements.
Published specifications include Measuring Ranges: HRA: 59 to 85.
USB connectivity and software allows for further measurement analysis. Rechargeable lithium battery. Low battery indicator. Includes D impact device, Leeb test block, small supporting ring, nylon brush, AC adapter, USB cable, software and hard carrying case REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstrumen. Power supply: Rechargeable Lithium. Product certifications: CE.
Specifications
| Ranges | |
| Measuring Ranges | HRA: 59 to 85 |
| Measuring Direction | 360° |
| Sampling Time | Less than 1 sec (when triggered) |
| Power | |
| Battery Life | Approx. 40 hours |
| Power Supply | Rechargeable Lithium |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity | 0 to 90% |
| General | |
| Hardness Scales | Rockwell (HRA, HRB, HRC) Brinell (HB) Leeb (HLD) Vickers (HV) Shore (HS) |
| HRB | 13 to 100 |
| HRC | 20 to 68 |
| HB | 19 to 651 |
| HLD | 170 to 960 |
| HV | 80 to 967 |
| HS | 30 to 100 |
| Display | Dot Matrix OLED |
| Charge Time | Approx. 2 hours |
| Internal Memory | Yes (up to 350 readings) |
| PC Connectivity | USB Cable |
| Software | Yes (Included) |
| Software OS Compatibility | Windows XP/Vista/7/8 |
| Product Certifications | CE |
| Dimensions | 5.7 x 1.3 x 1" (146 x 32 x 26mm) |
| Weight | 5.6oz (160g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R9030-NIST | HARDNESS TESTER, PEN W/NIST CERT | $1,925.00 |
