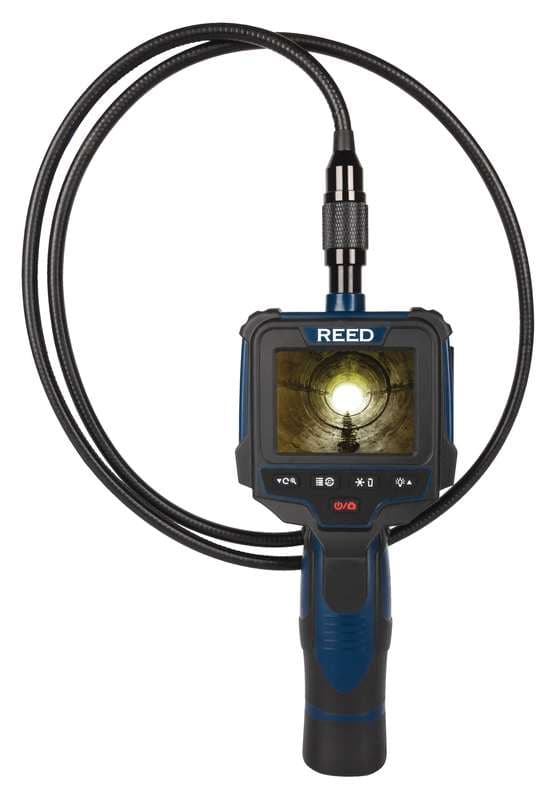

Reed R8500 Video Borescope
REED R8500 Video Inspection Camera: camera and video functions save high resolution images and video. Comfortable pistol grip design.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R8500 is a video inspection camera for field and industrial use. Camera and video functions save high resolution images and video; comfortable pistol grip design; high resolution 2.7" color LCD monitor; 8mm waterproof (IP67) camera head; and gooseneck cable retains configured shape.
Published specifications include Lens Sensor Resolution: 640 x 480 Camera Diameter: Short Distance Focus: 0.31" (8mm) 1.18 to 3.15" (3 to 8cm); Display Resolution: 320 x 240.
Cable expandable up to 30 ft. (~9m) with extensions (optional). Four high visibility LED lights provide illumination in dimly lit environments. Expandable memory up to 32Gb (SD card sold separately). Mirror rotation and Picture-in-Picture functions. Power supply: 4 AA Batteries. Product certifications: CE, IP67.
Specifications
| Ranges | |
| Lens Sensor Resolution | 640 x 480 Camera Diameter: Short Distance Focus: 0.31" (8mm) 1.18 to 3.15" (3 to 8cm) |
| Display Resolution | 320 x 240 |
| Power | |
| Power Supply | 4 AA Batteries |
| Environmental | |
| Operating Temperature | -4 to 158°F (-20 to 70°C) |
| Storage Temperature | -4 to 158°F (-20 to 70°C) |
| General | |
| Depth of Field | 10mm to infinity |
| Viewing Angle | 30mm to 80mm |
| FOV | 54° |
| Display | 2.7" Color TFT LCD |
| Adjustment | Yes (12 levels) |
| Second (FPS) | 30 |
| Rotate Display | Yes |
| Playback | Photo(JPEG) and Video (AVI) |
| Digital Zoom | 6x |
| Memory | SD Card (up to 32Gb) |
| Picture-in-Picture Mode | Yes |
| Time and Date Stamp | Yes |
| Data Output | USB/SD Card |
| Camera LEDs | Yes (6 white LEDs) |
| Brightness Adjustment | Yes (12 levels) |
| Auto Power Off | Yes (Adjustable 5, 10, 15, 20min) |
| Product Certifications | CE, IP67 |
| Dimensions | 9 x 3.5 x 1.7" (230 x 90 x 42mm) |
| Weight | 7.4 oz (210g) |
