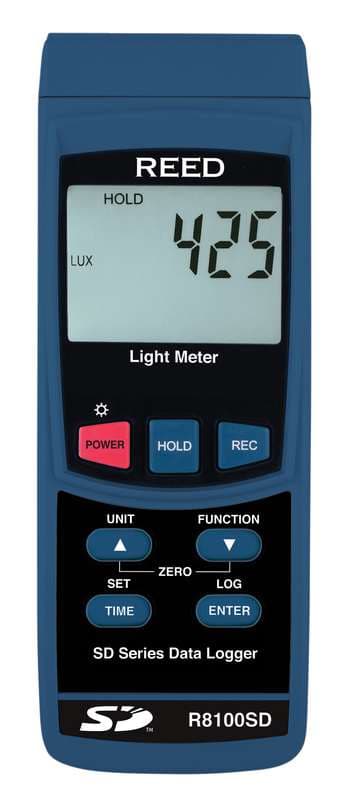

Reed R8100SD Data Logging Light Meter
REED R8100SD Data Logging Light Meter: measures ambient light levels in Foot Candles or L; range Lux: 2,000, 20,000, 100,000. Photo diode and colour correction filters meet C.I.E. spectrum specifications.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R8100SD is a data logging light meter for field and industrial use. Measures ambient light levels in Foot Candles or L; photo diode and colour correction filters meet C.I.E. spectrum specifications; contact temperature measurement with a type J/K thermocouple option; temperature is measured in °C or °F; and real time data logger with integrated SD memory ca.
Published specifications include Accuracy: Lux: ±(4% + 2 Lux); Measuring Ranges: Lux: 2,000, 20,000, 100,000; Resolution: Lux: 1, 10, 100.
User selectable sampling rate from 1 to 3600 secon. Easy-to-read backlit LCD display. Data hold and Min/Max functions. Tripod mount for long-term monitoring.
Specifications
| Accuracy | |
| Accuracy | Lux: ±(4% + 2 Lux) |
| Ranges | |
| Measuring Ranges | Lux: 2,000, 20,000, 100,000 |
| Resolution | Lux: 1, 10, 100 |
| Response Time | <1 second |
| Sensor Type | Photo diode & color correction filter |
| General | |
| Fc | 200, 2,000, 10,000 Type K Temperature: -148.0 to 2372.0°F (-100.0 to 1300°C) Type J Temperature: -148.0 to 2192.0°F (-100.0 to 1200°C) |
| Fc | <2,000: ±(4% rdg.+ 2 Fc) 2,000-10,000: ±(4% rdg.+ 20 Fc) |
| Temp | ≥-58°F (-50°C) ±(0.4% + 1°F (0.5°C)) ≤-58°F (-50°C) ±(0.4% + 1.8°F (1°C)) |
| Fc | 0.1, 1, 10 |
| Temp | 0.1°F (0.1°C) |
| Autoranging | Yes |
| Display | 5-digit LCD |
| Datalogging Capabilities | Yes |
Documents
Ordering information
2 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R8100SD-KIT | DATA LOGGING LIGHT METER WITH POWER ADAPTER AND SD CARD | $275.00 | |
| R8100SD-NIST | DATA LOGGING LIGHT METER, 100,000 LUX W/NIST CERT | $544.00 |
