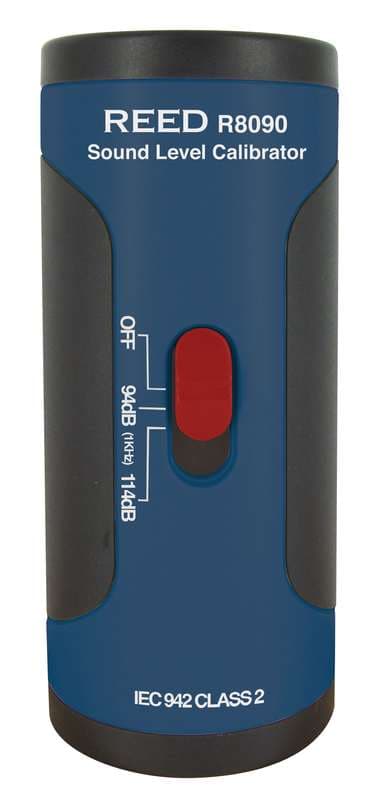

Reed R8090 Sound Level Calibrator
REED R8090 Sound Level Calibrator: generates stable acoustic signal at a controlled frequency and amplitude to verify sound level meter accuracy; accuracy ±0.5dB. Accommodates sound meters with 1/2" diameter microphones.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R8090 is a sound level calibrator for field and industrial use. Generates stable acoustic signal at a controlled frequency and amplitude to verify sound level meter accuracy; accommodates sound meters with 1/2" diameter microphones; simply place calibrator on microphone, turn on and adjust your sound level meter; and complies with IEC 60942 Class 2.
Published specifications include Accuracy: ±0.5dB.
Includes battery. Power supply: 9V Battery. Product certifications: CE. Operating Temperature: 32 to 104°F (0 to 40°C). Storage Temperature: -4 to 140°F (-20 to 60°C).
Specifications
| Accuracy | |
| Accuracy | ±0.5dB |
| Ranges | |
| Output Sound Pressure | 2 levels (94dB and 114dB) |
| Output Frequency | 1000Hz ±4% |
| Power | |
| Power Supply | 9V Battery |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity | 0 to 80% |
| General | |
| Product Certifications | CE |
| Dimensions | 4.7 x 2 x 1.7" (120 x 51 x 43 mm) |
| Weight | 4.6oz (130g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R8090-NIST | SOUND LEVEL CALIBRATOR W/NIST CERT | $524.00 |
