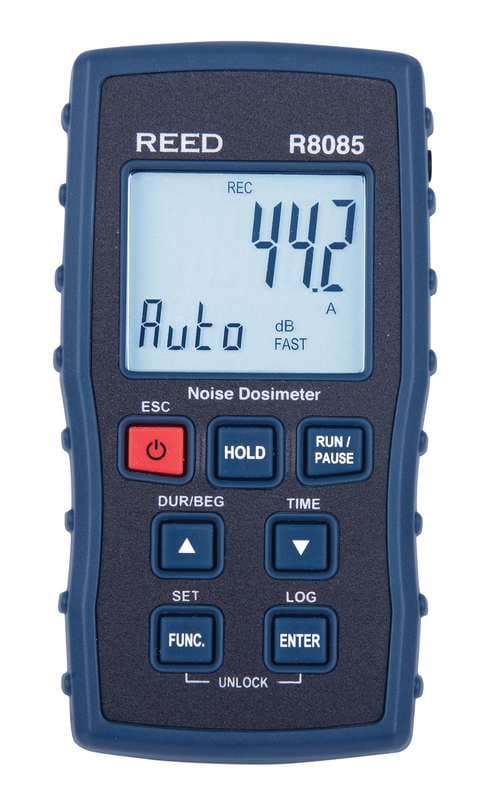

Reed R8085 Personal Noise Dosimeter
REED R8085 Noise Dosimeter: noise Dosimeter, Sound Level Meter and Data Logger; range 35 to 130dB. High accuracy of ±1.0dB meets Type 2 standards.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R8085 is a noise dosimeter for field and industrial use. Noise Dosimeter, Sound Level Meter and Data Logger; high accuracy of ±1.0dB meets Type 2 standards; designed to meet noise survey requirements in compliance with OSHA and CCOHS regulations; personal sound exposure meets IEC 61252, ANSI S1.25; and a & C frequency weighting.
Published specifications include Accuracy: 31.5Hz ±3.0dB, 63Hz ±2.0dB, 125Hz ±1.5dB, 250Hz ±1.5dB, 500Hz ±1.5dB, 1kHz ±1.0dB, 2kHz ±2.0dB, 4kHz ±3.0dB, 8kHz ±5.0dB; Measuring Range(s): 35 to 130dB; Dynamic Range: 50dB (in each range); Resolution: 0.1dB.
Fast & Slow time weighting. Lightweight and compact design. Adjustable Criterion Level, Exchange Rate and Threshold. USB interface with Windows® compatible software to retrieve stored data (sold separately).
Specifications
| Accuracy | |
| Accuracy | 31.5Hz ±3.0dB, 63Hz ±2.0dB, 125Hz ±1.5dB, 250Hz ±1.5dB, 500Hz ±1.5dB, 1kHz ±1.0dB, 2kHz ±2.0dB, 4kHz ±3.0dB, 8kHz ±5.0dB |
| Ranges | |
| Measurement Type | Sound Pressure Level: dB |
| Measuring Range(s) | 35 to 130dB |
| Dynamic Range | 50dB (in each range) |
| Resolution | 0.1dB |
| Response Time | Approx. 1 sec |
| Frequency Range | 31.5Hz to 8kHz |
| Frequency Weighting | A, C |
| General | |
| Personal Noise Exposure | %Dose |
| Low | 35 to 80dB |
| High | 80 to 130dB |
| Auto | 35 to 130dB |
| Dose | 70 to 130dB |
| Time Weighting | Fast/Slow (125mS and 1 second) |
| Microphone | 0.5" (12.7mm) electret condenser |
| Display | 4-digit LCD |
Documents
Ordering information
2 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R8085-KIT | PERSONAL NOISE DOSIMETER, KIT | $1,595.00 | |
| R8085-NIST | PERSONAL NOISE DOSIMETER W/NIST CERT | $910.00 |
