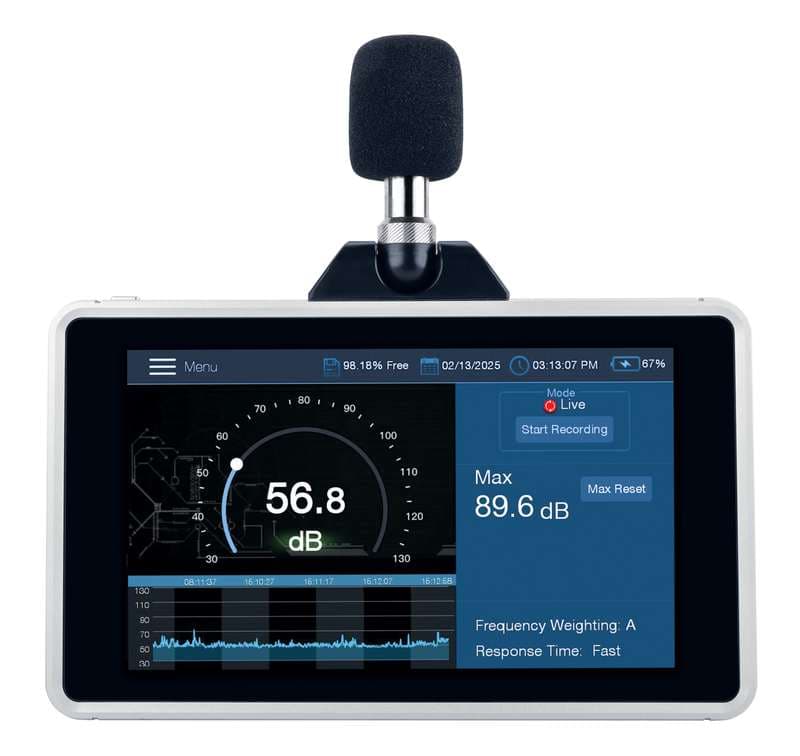

Reed R8075 Data Logging Sound Meter
REED R8075 Sound Level Meter: high accuracy of ±1.4dB meets Type 2 standards; range 30-130dB. A & C frequency weighting.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R8075 is a sound level meter for field and industrial use. High accuracy of ±1.4dB meets Type 2 standards; a & C frequency weighting; fast & Slow time weighting; digital analog bargraph; and 7" (178mm) high-resolution color TFT LCD (1024 x 600 pixels).
Published specifications include Functional Specifications Measuring Range: 30-130dB; Dynamic Range: 50dB Accuracy: Resolution: ± 1.4dB 0.1dB; Frequency Range: 31.5Hz to 8kHz; Display Resolution: 1024 x 600 pixels.
User adjustable high and low alarms. Internal 16GB memory stores data points in CSV format. Virtually limitless data logging capacity, supporting expansive data sets. User selectable sampling rate from 1 second to 24 hours. Power supply: 3000mAh rechargeable Li-ion battery/power adapter. Product certifications: CE, IEC61672-1 Class 2.
Specifications
| Ranges | |
| Functional Specifications Measuring Range | 30-130dB |
| Dynamic Range | 50dB Accuracy: Resolution: ± 1.4dB 0.1dB |
| Response Time | 500mS |
| Frequency Range | 31.5Hz to 8kHz |
| Frequency Weighting | A, C |
| Display Resolution | 1024 x 600 pixels |
| Power | |
| Power Supply | 3000mAh rechargeable Li-ion battery/power adapter |
| Battery Life | ~2 hours |
| Environmental | |
| Operating Temperature | 14 to 104°F (10 to 40°C) |
| Storage Temperature | 14 to 104°F (10 to 40°C) |
| Operating Humidity Range | 10-90% |
| General | |
| Time Weighting | Fast/Slow (125mS and 1s) |
| Microphone | 0.5" (12.7mm) electret condenser |
| Digital Analog Bargraph | Yes |
| Display | 7" (178mm) high-resolution color TFT |
| Adjustable Brightness | Yes |
| Datalogging Capabilities | Yes |
| Date Stamp | Yes |
| Internal Memory | 16GB (Up to 247, 890, 307 data points) |
| Alarms | Yes (Low and High) |
| Charge Time | ~9 hours |
| Product Certifications | CE, IEC61672-1 Class 2 |
| Dimensions | 7.8 x 4.6 x 1" (198 x 118 x 25.7mm) |
| Weight | 12.9oz (365g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R8075-NIST | DATA LOGGING SOUND METER, DESKTOP/WALL MOUNT W/NIST CERT | $1,014.00 |
